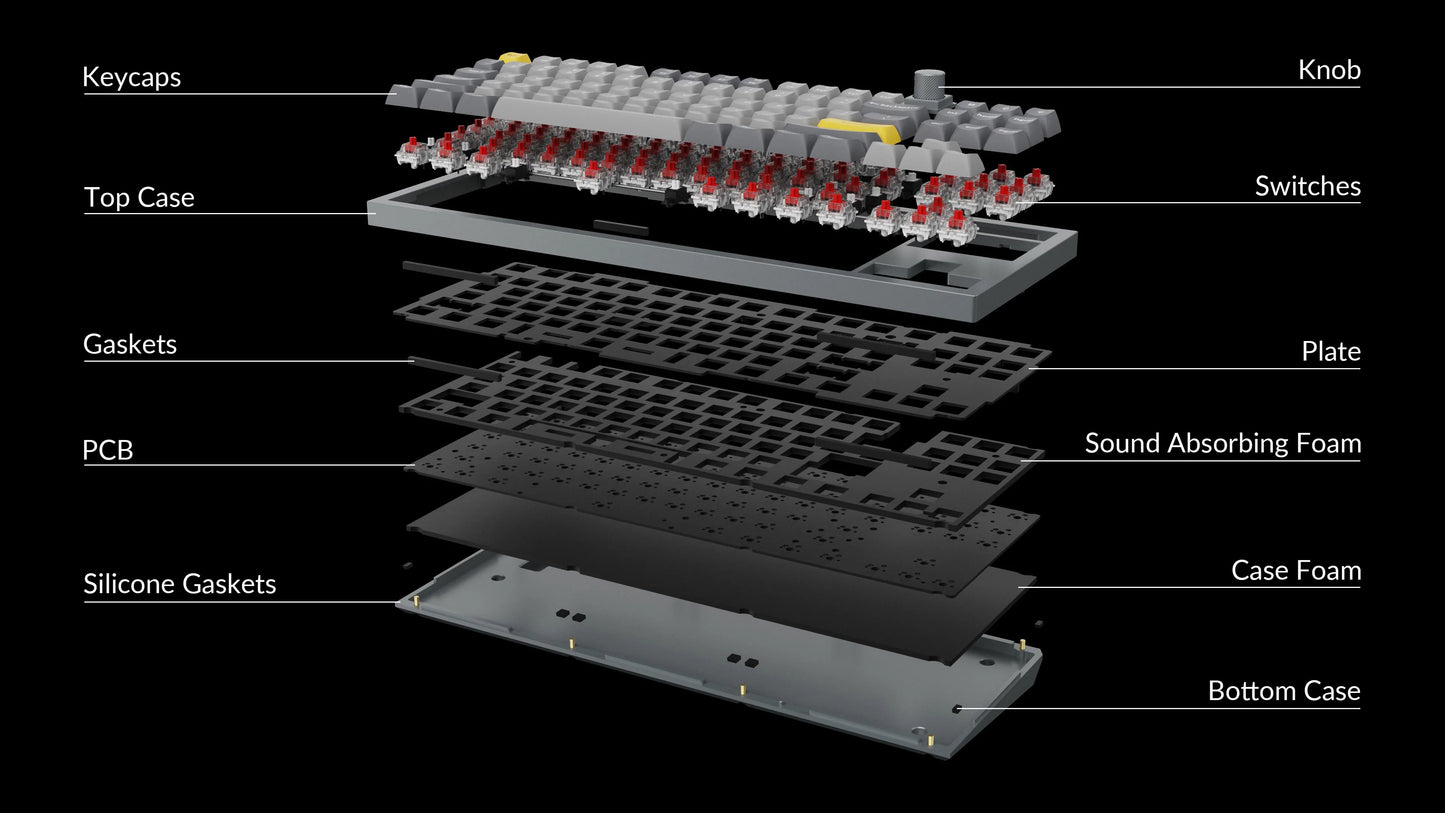

Keychron's Q3 is a premium, double gasket-mounted TKL keyboard with immense customization options. The board is completely modular allowing you to easily swap your keycaps, switches, plate, rotary encoder, stabilizers, and PCB. Utilizing QMK/VIA you'll also be able to remap every key to your specifications. With the Keychron Q3 you'll have everything you need to fully personalize your typing experience!
Specifications:
-
Layout: Tenkeyless (TKL) ANSI (87 Keys)
- Open Source Firmware Compatibility: QMK/VIA Support
-
Mounting System: Gasket
- Case Material: Aluminum
- Plate Material: Steel
- Double Gasket Design
- Removable Keycaps
- Removable USB Cord
- Hot-swappable PCB
- South-facing RGB
- Sound Dampening Foam
- PCB-Mounted Stabilizers

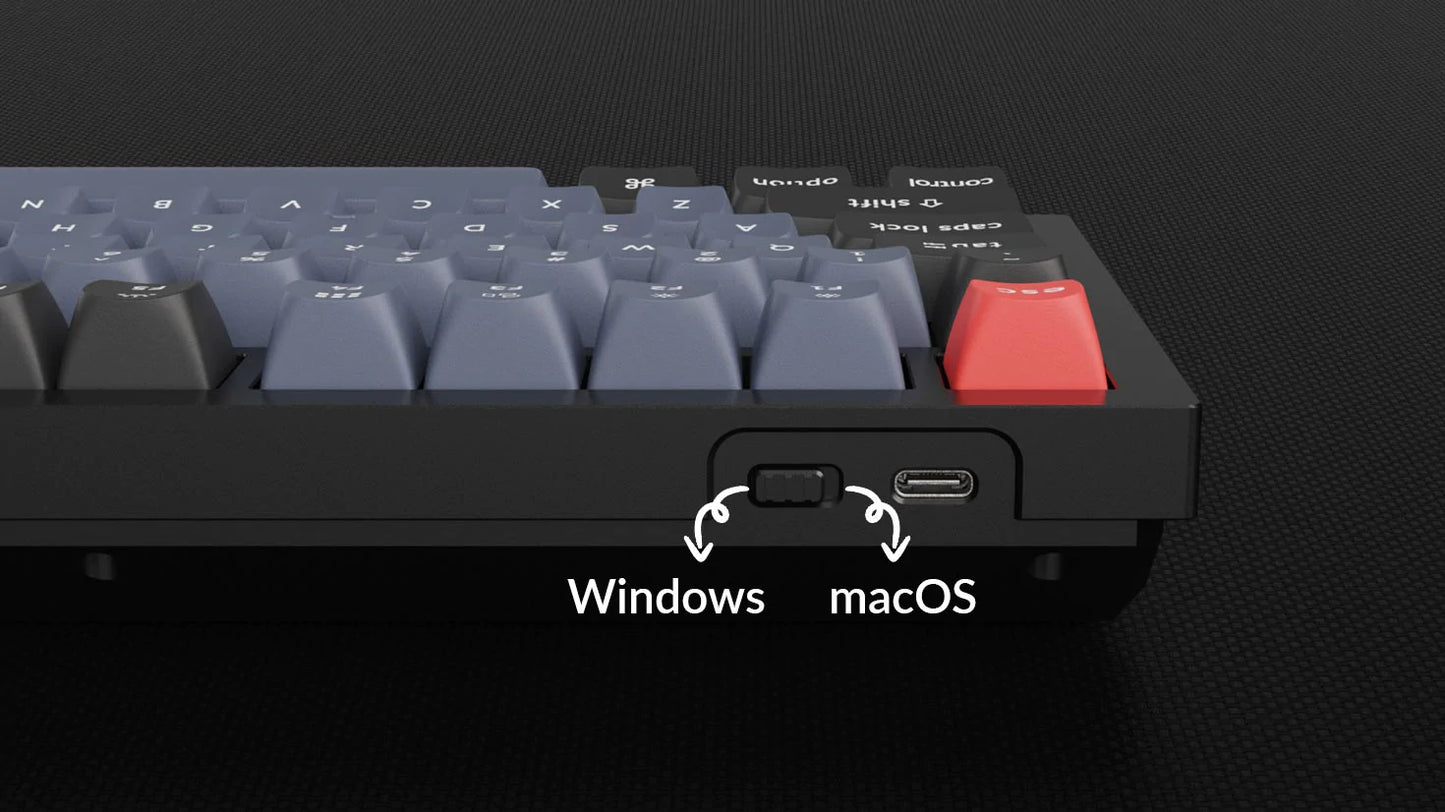

- Mac and Windows Compatibility w/ Toggle

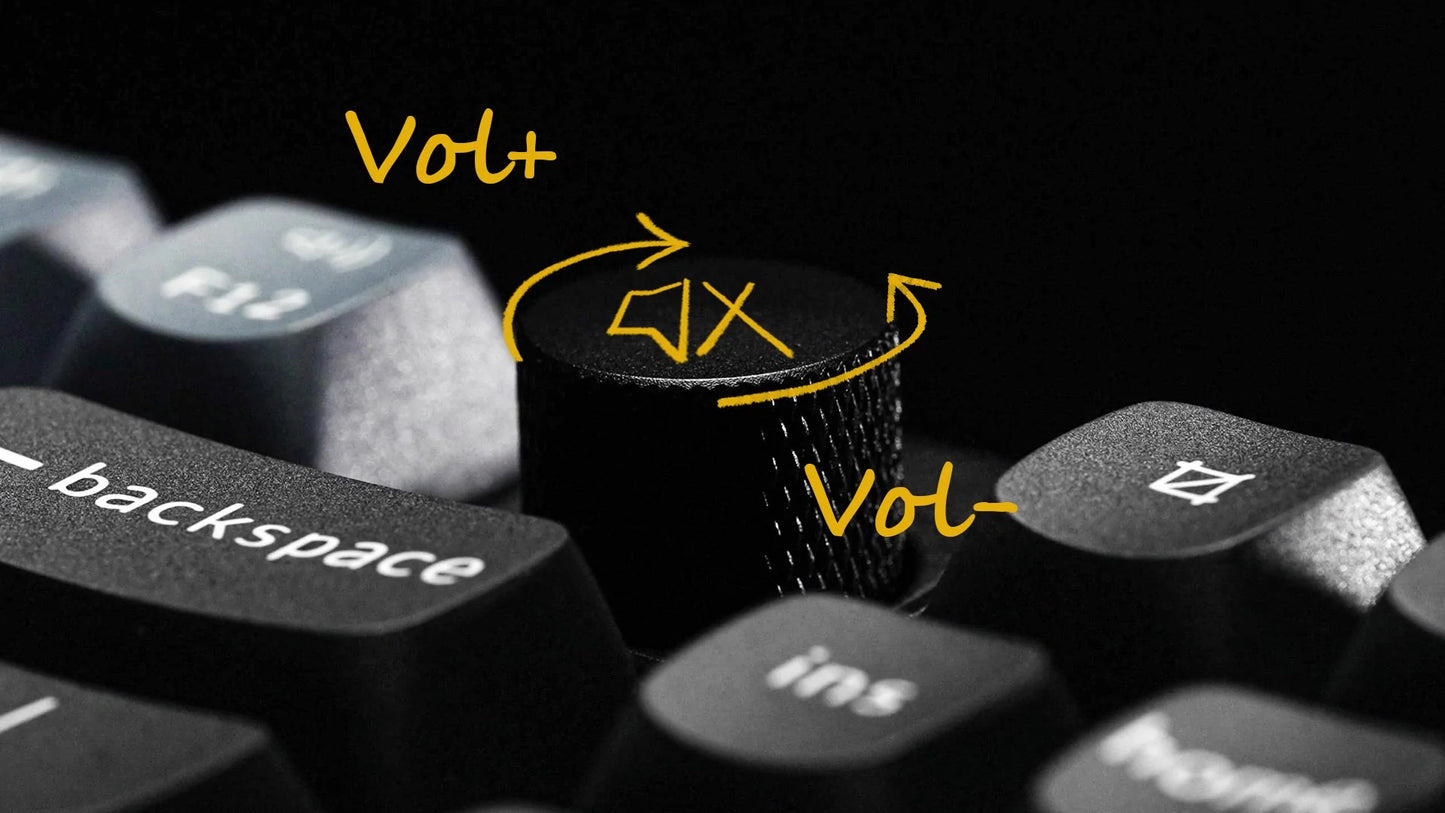

- Optional Rotary Encoder
- Polling Rate: 1000Hz
- MCU: Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
- Connectivity: USB-C
- Width: 137mm
- Length: 365.1mm
- Front Height: 19.7mm
- Back Height: 32.6mm
- Typing Angle: 5.2°
- Weight: Approx. 2000g (Fully Assembled)
-
Available Layouts:
- TKL
- TKL with Knob
Sound Test:
What's Included?
- 1x Keychron Q3 Case
- 1x Knob (Knob Version Only)

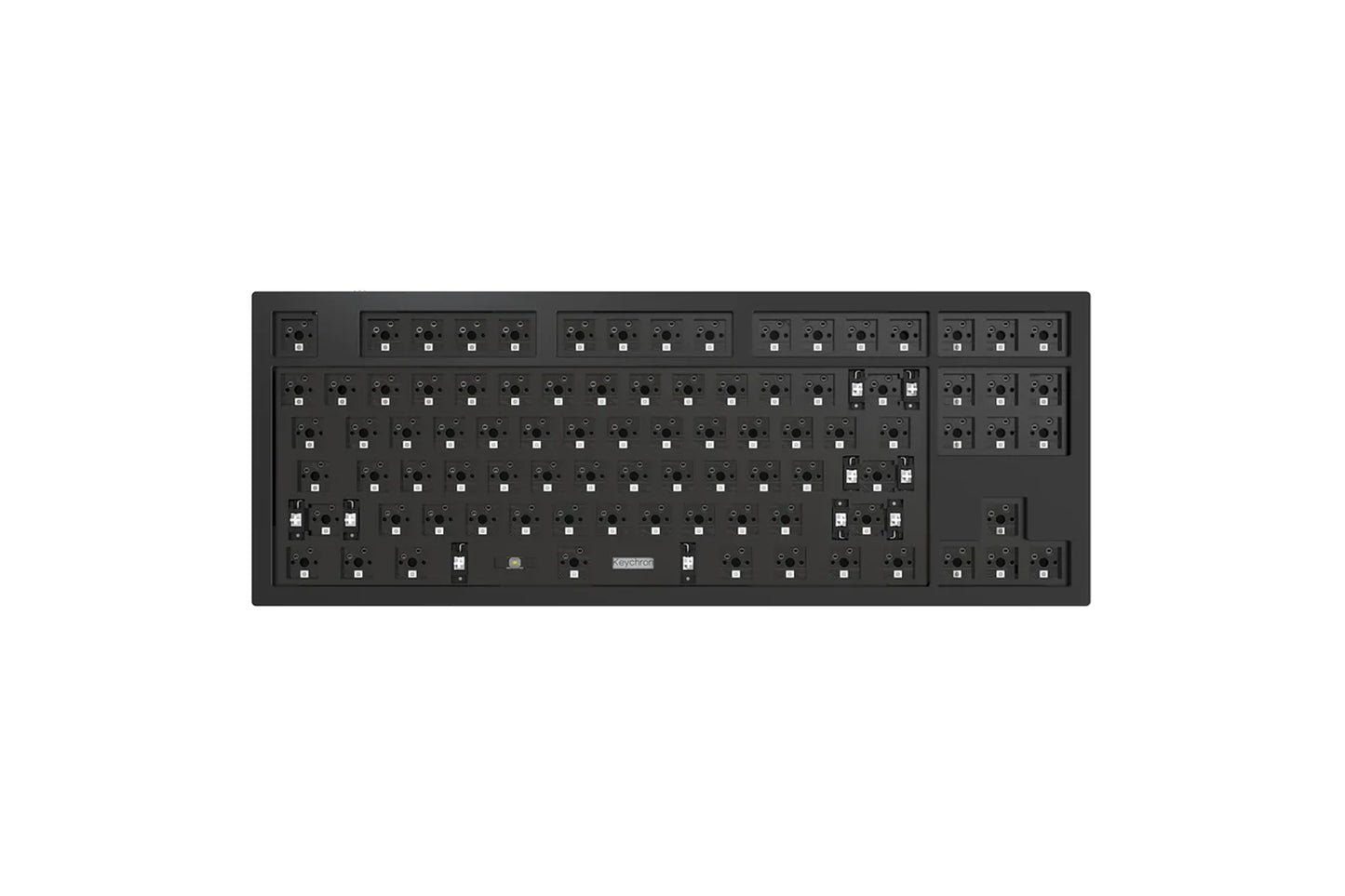

- 1x Hot-Swappable PCB
- 1x Steel Plate
- 1x Sound Dampening Foam
- 1x Case Foam
- 6x foam gaskets (10 Installed / 6 In Box)
- 5x Stabilizers
- 1x Keycap puller
- 1x Switch puller
- 1x Screwdriver
- 1x Hex key
- 1x USB-C to USB-C cable
- 1x USB-C to USB-A adapter
- 1x Quick-start Guide
