The extremely popular Zoom series is back! This time featuring the perfect companion to your keyboard in more customizations than ever! You won't want to miss out on this amazing numpad!
ZoomPad at a Glance:
- Multiple PCB Options:
- To maximize customizability, there are now 2 PCB options: tri-mode and wired. The thickness remains at 1.2mm. The design incorporates a daughterboard that can be securely attached independently, effectively preventing the positioning of the Type-C interface from being affected by the cut-out on the case.

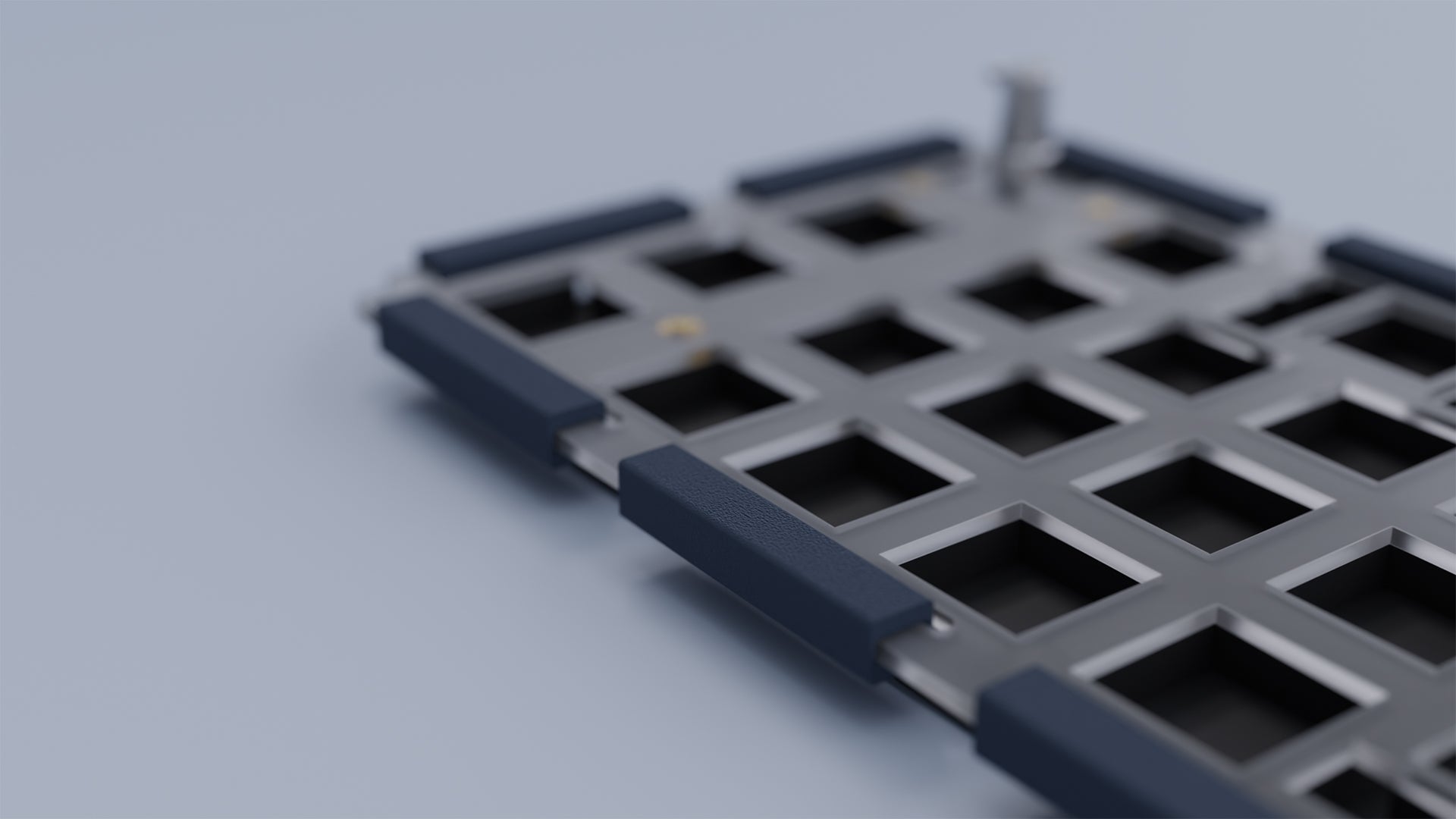

- Gasket Sleeves:
- ZoomPads feature gasket sleeves made of unique supercritical foam which is able to both stabilize the plate as well as provide adequate spacing for flex. This results in a typing experience that's well-balanced and neither too stiff or soft.
- Various Plate Materials:
- Zoompads are highly customizable and feature numerous plate options including brass, aluminum, and FR4. Fully customize your typing experience with the ZoomPad. Please note, additional plates are sold separately.
- Hot-swappable:
- Zoompad Tri-mode PCB's feature hot-swap sockets which allows you to easily swap your switches, no soldering required! Changing switches is a breeze, you can go from linears to tactiles in a matter of minutes, all on the same keyboard!
- Included Foam:
- Zoompads comes with an array of foams in the kit for those who like a dampened, refined sound. This iteration features PORON that is lighter, but with foam pores that are denser resulting in a more concentrated and deeper sound. Feel free to experiment with different combinations, or use none of them at all!
- VIA Compatible:
- The Bluetooth PCB is fully compatible with VIA, the powerful GUI widely renowned for it's customizability and ease of use. Remap any key on the keyboard on 4 different layers, including the knob. Use built in powerful shortcuts and macros, or define your own!
Specifications:
- Gasket mount design
- Layout: 20% (Numpad)
- Typing angle: 5°
- Front height: 20mm
- Top case material: Aluminum
- Electrostatic coated
- Bottom case material: Aluminum
- Electrostatic coated
- Backplate: PVD SS
- Weight material: Aluminum
- Knob material: Aluminum
- Default plate: Polycarbonate
- PCB Specifications:
- Wired only
- Hotswap
- 1.2mm thickness with Ai03 daughterboard
- Weight:
- Essential kit with aluminum knob / weight / PVD back-plate: 0.719 kg

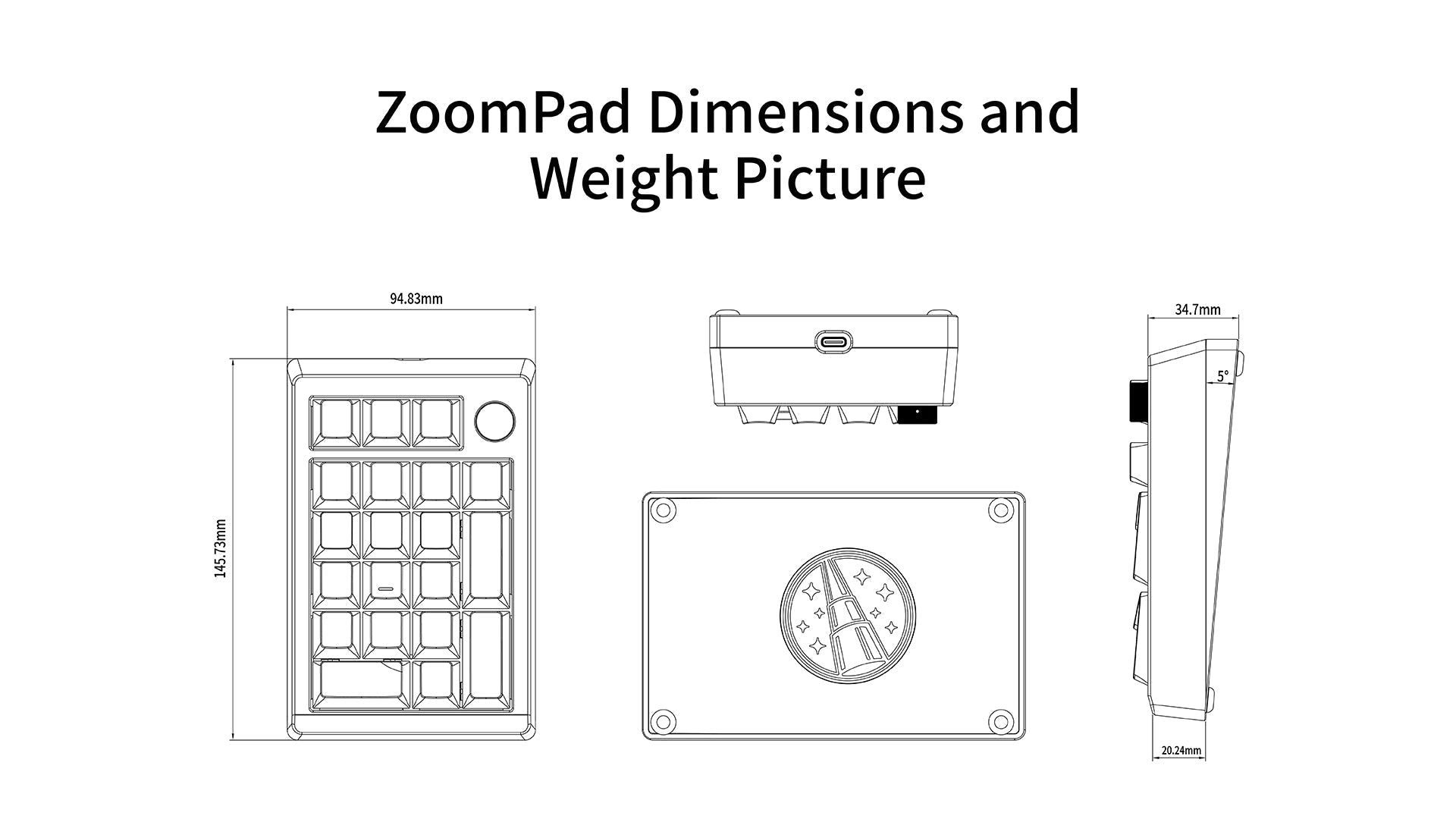

- Dimensions: 145.73 x 94. 83 x 34.7 (mm)

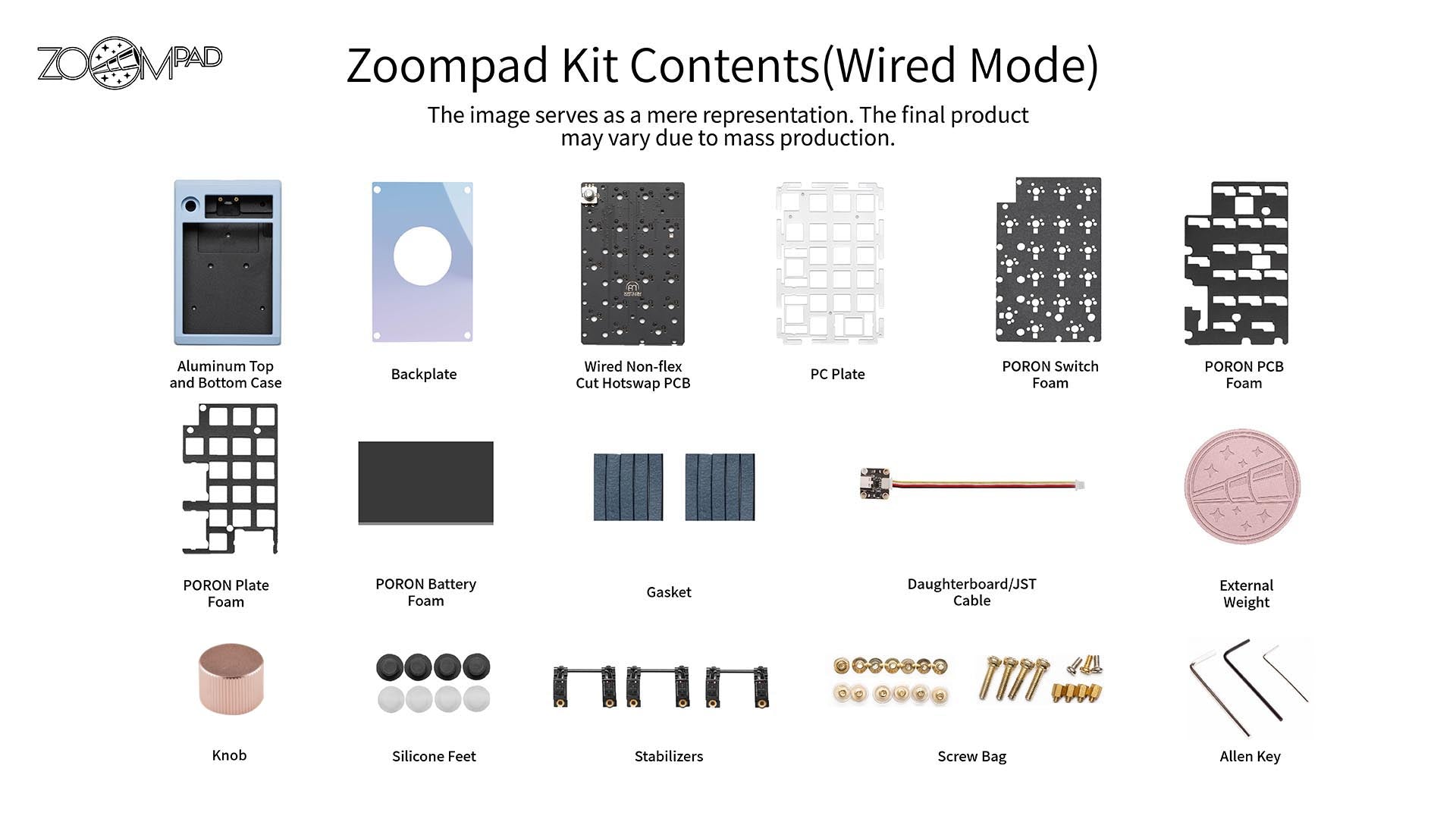

What's in the box?
- Aluminum top & bottom case
- Regular knob and matching weight

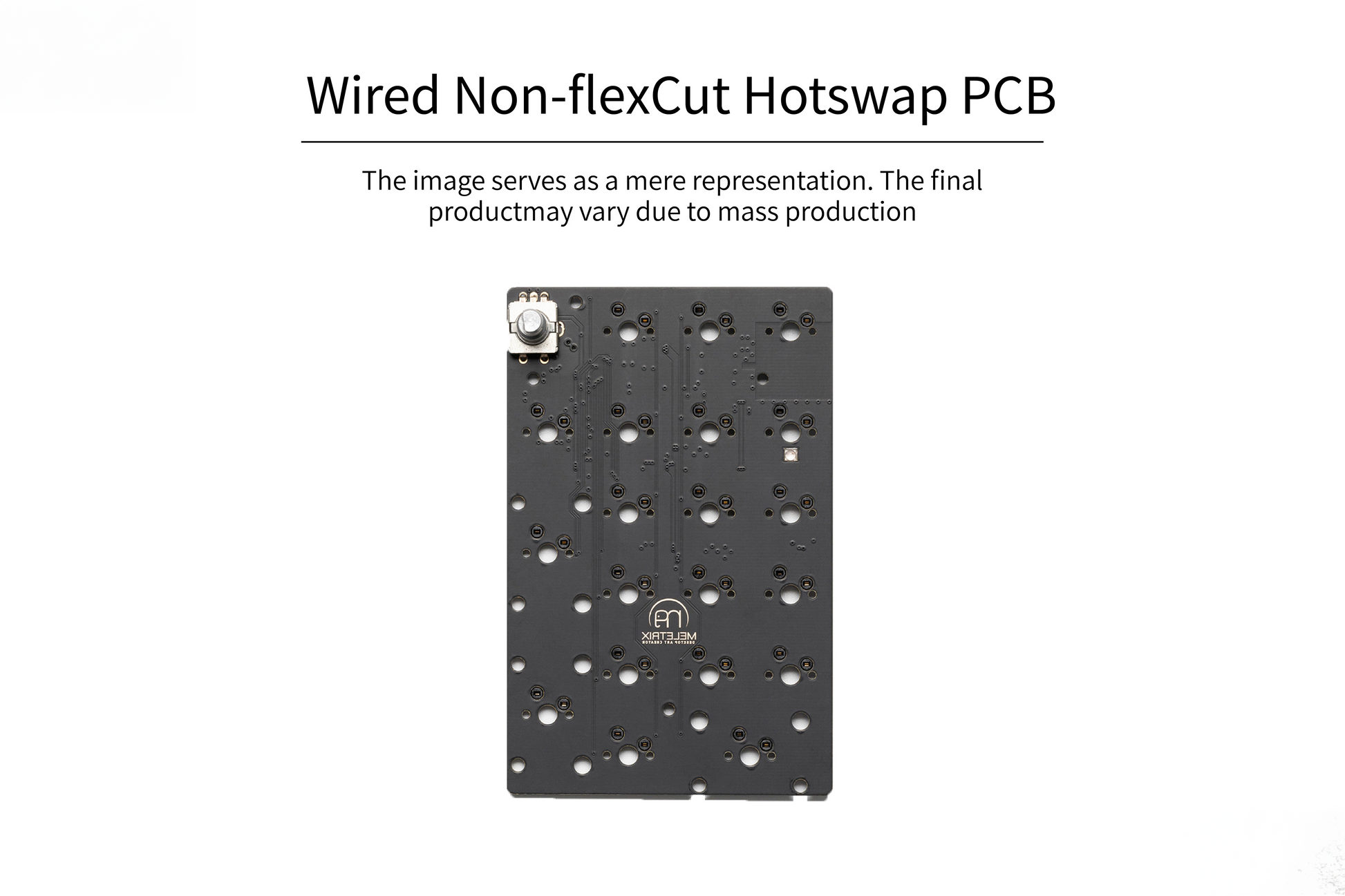

- Wired hotswap PCB without RGB and normal encoder, QMK/VIA supported
- PC plate
- DB + JST

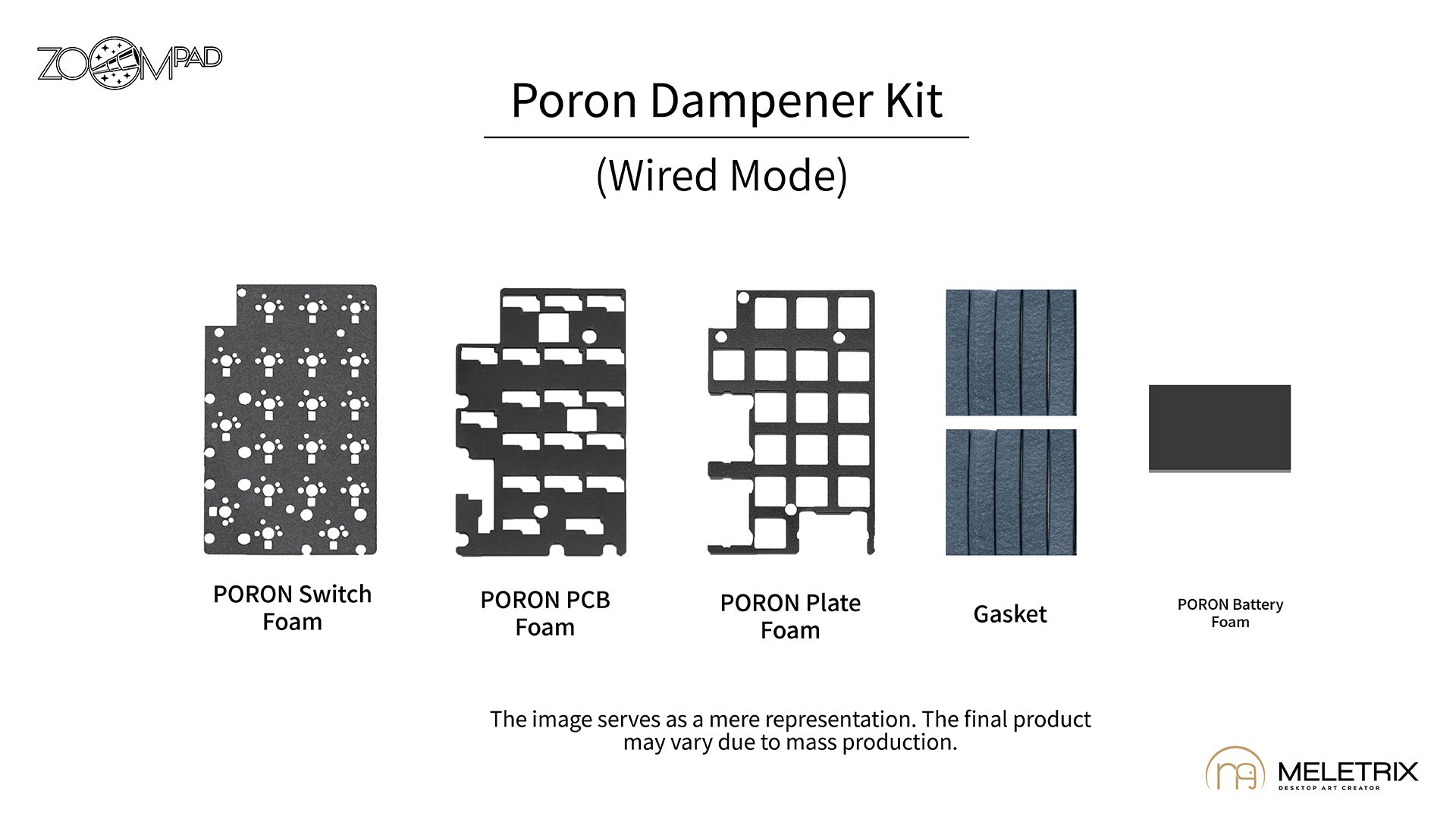

- Poron Dampener Kit (Plate foam, switch foam, PCB foam, gaskets)
- WS 3.1 Stabilizer set
- Silicone feet
- Screws and Allen key
Videos:
Configurator:
Timeline:
- Group-buy start date: October 10th, 2023
- Group-buy end date: October 30th, 2023
- Estimated shipping date: Q1 2024
