[Pre-Order] S65 V2 Barebones Keyboard Kit

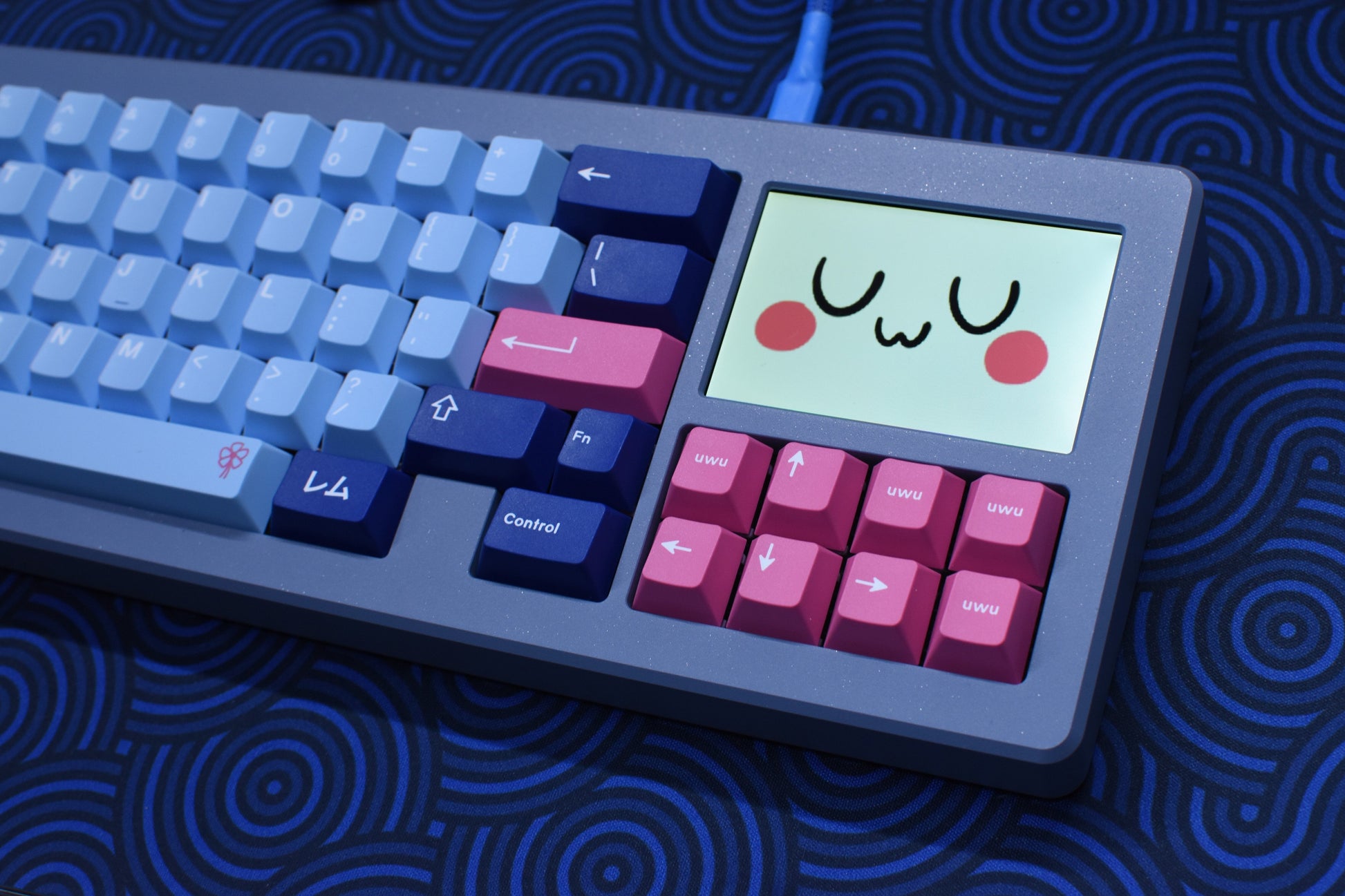

**Please note the renders are of the S80 V2, not the S65 V2. They should be used as a color reference only.**

The S65 V2 is a striking top-mounted keyboard designed by Sam featuring a large highly configurable 3.5" IPS screen, and numerous color options.

What Makes the S65 V2 Special?

3.5" IPS Screen

This large screen above the arrow cluster has a resolution of 480x320 and is compatible with hwinfo64 and capable of numerous functions such as:

• Monitoring CPU Functions: CPU, RAM, hard disk, GPU temp, network information such as usage rate, fan speed, etc.

• Displaying Information: Computer model, location, date, time, weather forecast, host volume, custom display, and other information.
• Wallpapers: 480×320 wallpapers can be displayed alone or superimposed over the information display

• Custom Themes: Preset theme, and theme editing.

Hot-swappable or Solderable PCB Options Available

The S65 V2 is available with either a hot-swappable or solderable PCB for you to fully customize your build experience. Whether you enjoy the flexibility of hot-swap PCB's or the sturdiness of soldered PCB's, the S65 V2 has you covered!

Non-flex Cut or Flex-cut PCB Options Available

Flex cuts in the PCB can affect the type feel and sound in your board. The S65 V2 has both flex and non-flex available for you to dial in the experience you prefer.

Videos:

Xanniard- Cream(Schedule: TBD)

Sviz- Silver(Schedule: TBD)

Specifications:

• Material: Anodized/E-coated Aluminum
• Mounting Style: Top-mount
• Plate: FR4
• Typing Angle: 7 degrees
• PCB:
• Wired
• Solder or hot-swap available
• Flex-cut and non-flex-cut available
• Remap available via online webpage
• 1.6mm Thickness
• Connectivity: USB-C
• Layout:
• WKL or WK
• ANSI and ISO
• Split right shift
• Stepped caps
• Split backspace
• 6.25u and 7u
• Dimensions: 390mm x 125mm x 20mm
• Weight: 2.5kg (Fully built)

What's Included?

• 1x Aluminum top and bottom case
• 1x Soldered or Hotswap PCB
• 1x Daughterboard
• 1x 3.5-inch IPS Screen
• 1x Weight
• 1x FR4 Plate

• 1x Foam Poron Kit

• Screws and Keyboard Feet

International Vendors:

• US: You're here!
• UK: MechMods UK
• Ireland: Row5.store
• Philippines: Zionstudios.ph
• Canada: Mech.land
• EU: Deltakeyco
• AU: Prestige Keys
• TH: Gamingplanet

Timeline:

• Pre-order start date: May 25th, 2023
• Pre-order end date: When allocated inventory sells out
• Estimated shipping date: Q4 2023

Please note:

• This is a pre-order. This means the items are NOT immediately available. They are currently in production and estimated to finish production according to the above timelines.
• With any pre-order, there can be unforeseen delays and set-backs. The estimated shipment date is only an estimate.
• This item is excluded from free US shipping.
• There are no refunds, or cancellations on these orders.
• By purchasing this item, you agree that you understand everything above.
