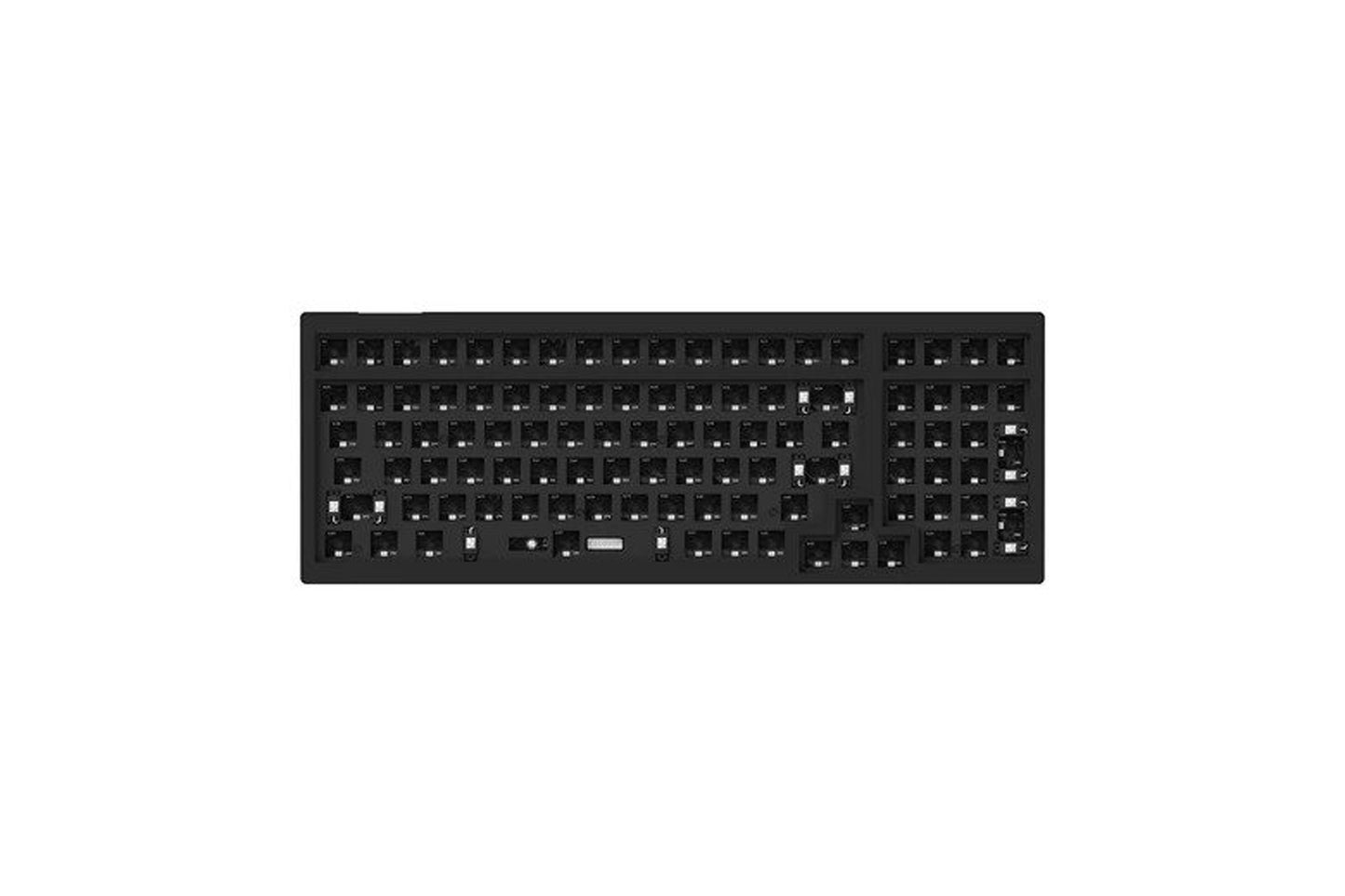

Keychron V5 - QMK Compatible 96% Barebones Keyboard Kit

Keychron V5 - QMK Compatible 96% Barebones Keyboard Kit

Regular price $69.00 USD
Regular price Sale price $69.00 USD
Sale Sold out
Shipping calculated at checkout.

The Keychron V5 features an 1800 compact layout design (96% layout) to save space while retaining the function keys and num pad. It also offers QMK/VIA support, hot-swappable PCB, screw-in stabs, and more for your optimal typing feel.



  • Layout: 96% (97 Keys)
  • Open Source Firmware Compatibility: QMK/VIA Support
  • Mounting System: Tray
  • Case Material: ABS Plastic Housing
  • Plate Material: Steel
  • Removable USB Cord
  • Hot-swappable PCB
  • South-facing RGB
  • Sound Dampening Foam
  • Case Silicone Pad
  • Screw-in PCB Stabilizers
  • Mac and Windows Compatibility w/ Toggle
  • Rotary Encoder (Included in knob version)
  • Polling Rate: 1000Hz
  • MCU: Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
  • Connectivity: USB-C
  • Width: 142.3mm
  • Length: 388.87mm
  • Front Height: 18.85mm (without keycaps)
  • Back Height:  26.43mm (without keycaps)
  • Typing Angle: 3.5° / 7.20° / 9.73°
  • Weight: Approx. 1170g (Fully Assembled)


    What's Included?

    • 1x Keychron V5 Case
    • 1x Knob (Only in the knob version)
    • 1x Hot-Swappable PCB
    • 1x Steel Plate
    • 1x Sound Absorbing Foam
    • 1x Case Silicone Pad
    • 6x Stabilizers
    • 1x Keycap puller
    • 1x Switch puller
    • 1x Screwdriver
    • 1x Hex key
    • 1x USB-C to USB-C cable
    • 1x USB-A to USB-C adapter
    • 1x Quick-start Guide
