[Group-Buy] Wuque Studio Zoom Switch Bundle

[Group-Buy] Wuque Studio Zoom Switch Bundle

$9.45 USD
$10.50 USD $9.45 USD
Sale Sold out
Shipping calculated at checkout.
Bundle
Switch
Thanks for signing up for restock notifications!
There was an error signing up for restock notifications. Please try again.

Sign up for restock notifications

Notify Me

Please ONLY add this item to Zoom98, Zoom75, or ZoomPad group-buy orders. Orders containing only add-ons will not qualify. This item will be removed from ALL other orders.

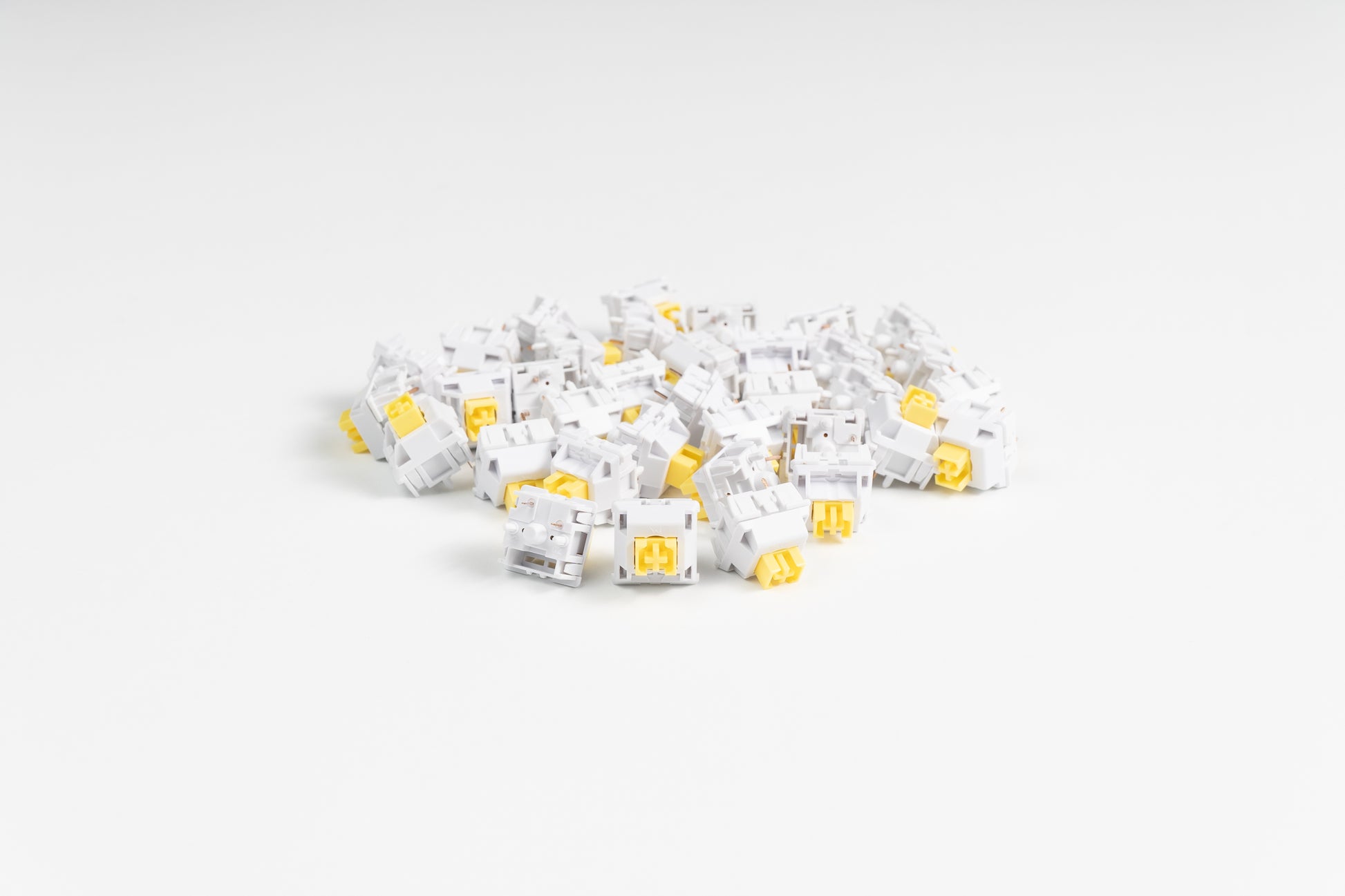

Wuque Studio Yellow Specifications:

  • Linear
  • Top Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Double stage spring
  • Total Travel:  3.80±0.3mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 53g
  • 5 pin (PCB Mount)
  • LUBED from factory

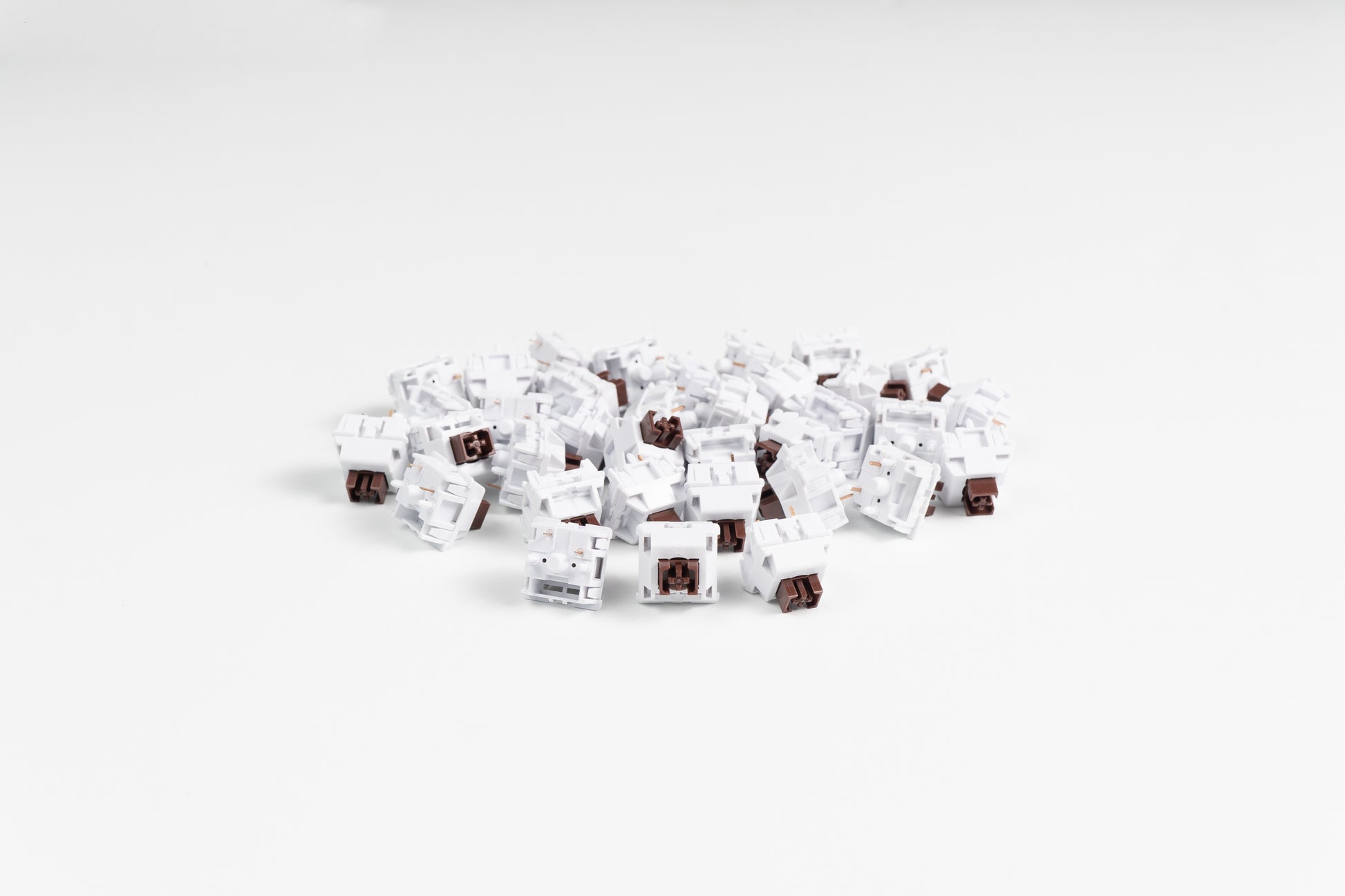

Wuque Studio Brown Specifications:

  • Tactile
  • Top Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Double stage spring
  • Total Travel:  3.80±0.3mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 55g
  • 5 pin (PCB Mount)
  • LUBED from factory



Wuque Studio Heavy Tactile Specifications:

  • Tactile
  • Top Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Single stage spring
  • Total Travel: 3.00~3.20mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 45g
  • 5 pin (PCB Mount)
  • LUBED from factory



Wuque Studio Silent Linear Specifications:

  • Silent Linear
  • Top Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Double stage spring
  • Total Travel: 3.50±0.3mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 63.5g
  • 5 pin (PCB Mount)
  • LUBED from factory



Wuque Studio Silent Tactile Specifications:

  • Silent Tactile
  • Top Housing: Nylon
  • Bottom Housing: Nylon
  • Stem: POM
  • Double stage spring
  • Total Travel: 3.50±0.3mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 63.5g
  • 5 pin (PCB Mount)
  • LUBED from factory

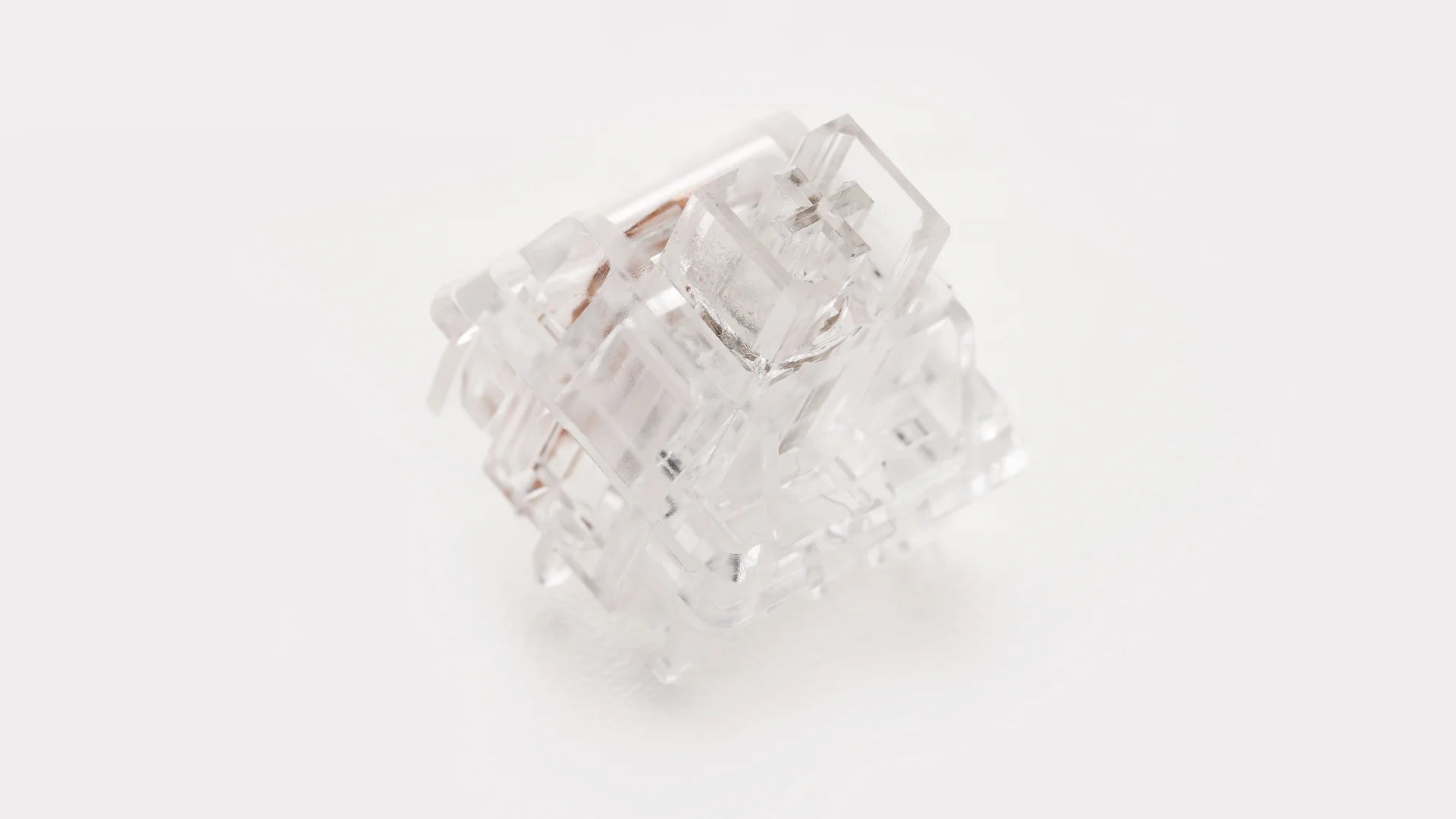

Wuque Studio Quartz Specifications:

  • Linear
  • Top Housing: Polycarbonate
  • Bottom Housing: Polycarbonate
  • Stem: Nylon
  • Double stage spring
  • Total Travel: 3.80±0.3mm
  • Pre-travel: 2.00±0.5mm
  • Bottom-out Force: 60g
  • 5 pin (PCB Mount)
  • LUBED from factory

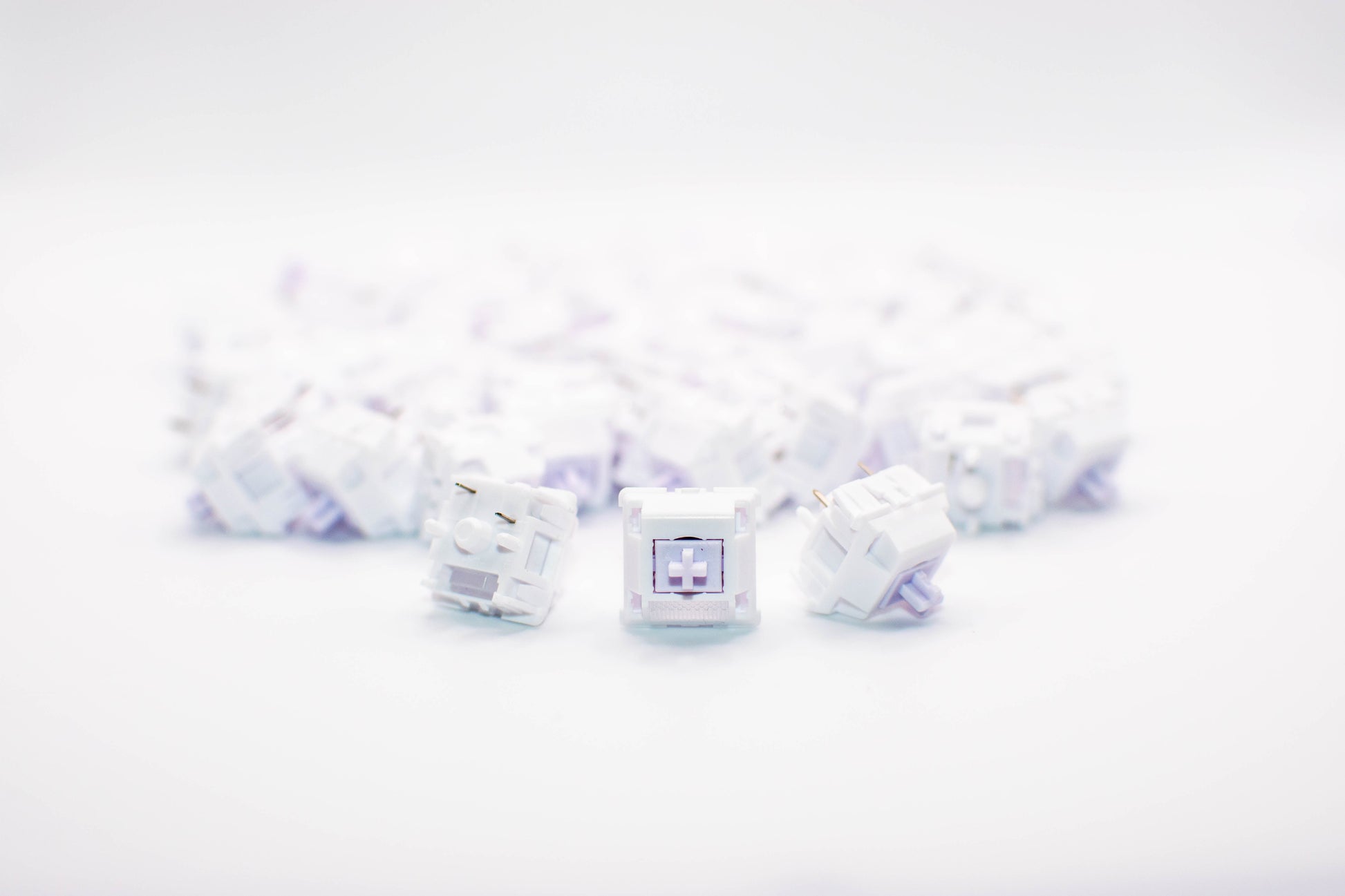

Morandi Specifications:

  • Linear
  • Top Housing: POM
  • Bottom Housing: POM
  • Stem: UPE
  • Spring: 18mm, Double-Staged
  • Total Travel: 3.50±0.3mm
  • Bottom-out Force: 60g
  • 5 pin (PCB Mount)
  • LUBED from factory



Timeline:

  • Group-buy start date: October 10th, 2023
  • Group-buy end date:  October 30th, 2023
  • Estimated shipping date: Q1 2024

Group-Buy Disclaimer

Please note, this is a group-buy. A group-buy is essentially a group of people combining their money together to make a bulk order with a manufacturer. This means:

  • This item has NOT entered production yet and is estimated to ship according to the timelines detailed on the product listing. Please note, there may be unforeseen delays and setbacks.
  • Combining in-stock items in this order means that your in-stock items will NOT ship until everything becomes available.
  • This item is excluded from free shipping.
  • There are no refunds, or cancellation on these orders.

Group-Buy Updates

We want to make sure you stay updated with the projects you fund! We'll be sending monthly update emails to the email you provide at checkout. These updates can also be found on our website here.

Additionally, more frequent and often smaller updates can be found on Discord.
