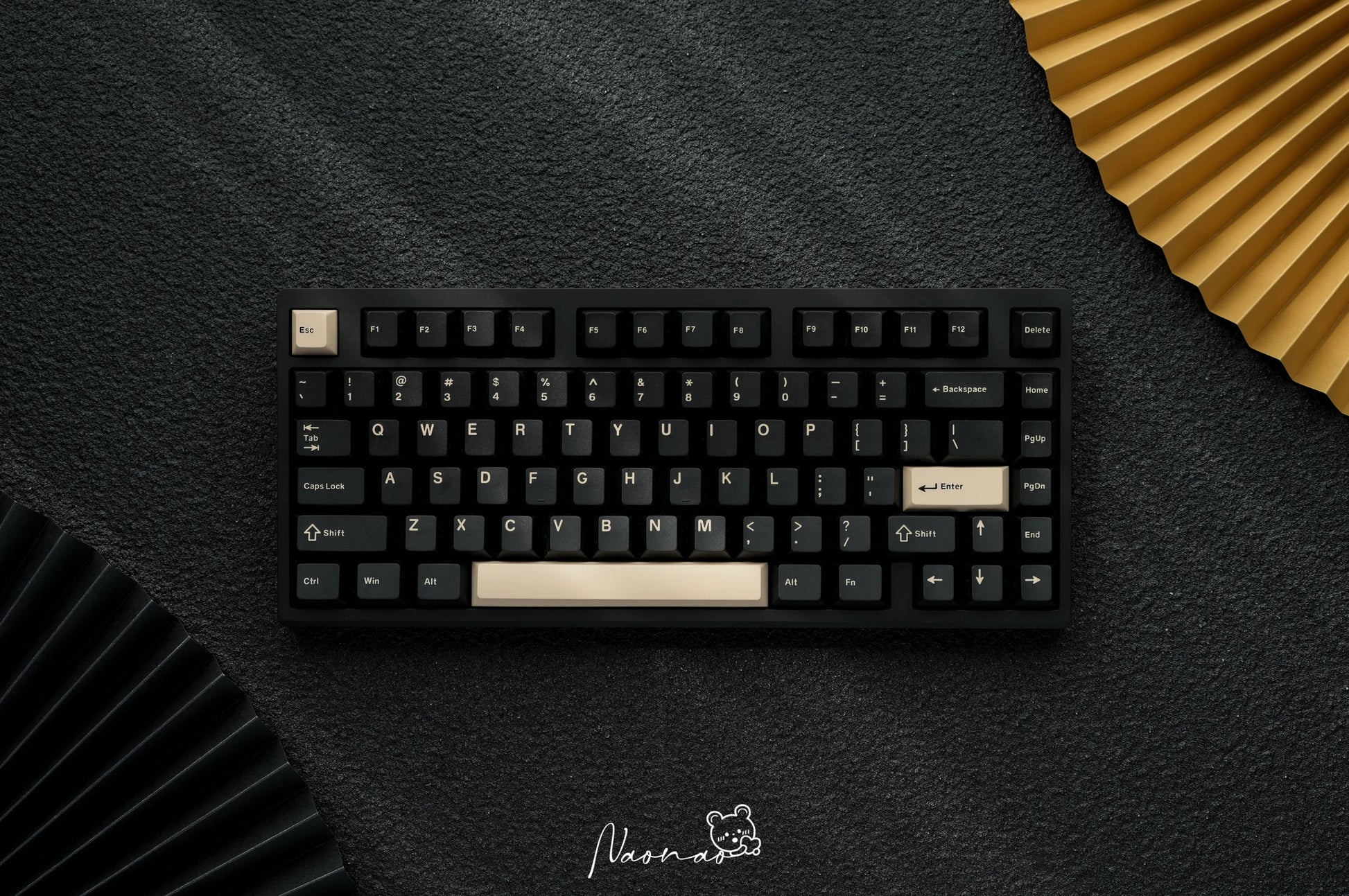

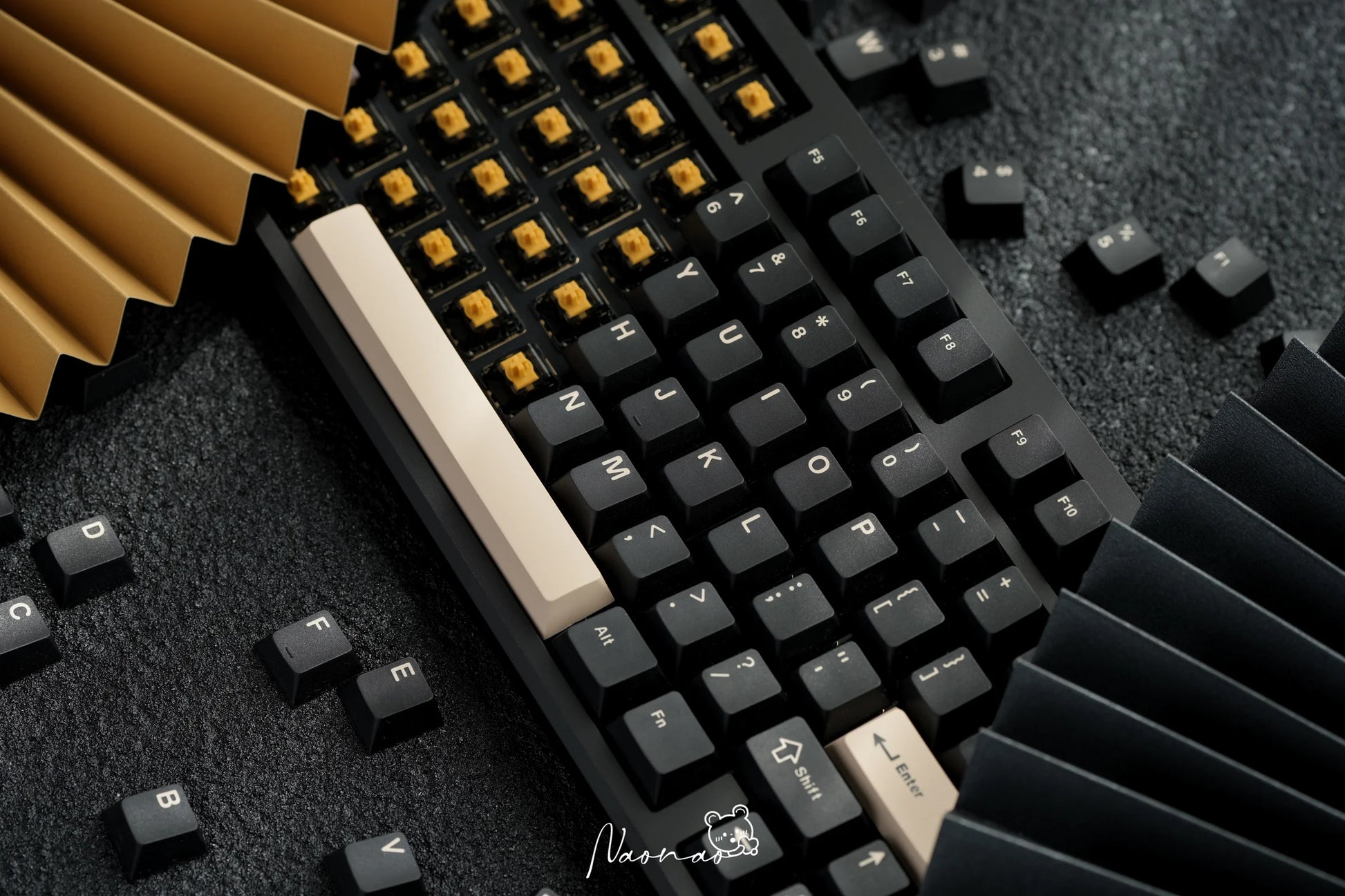

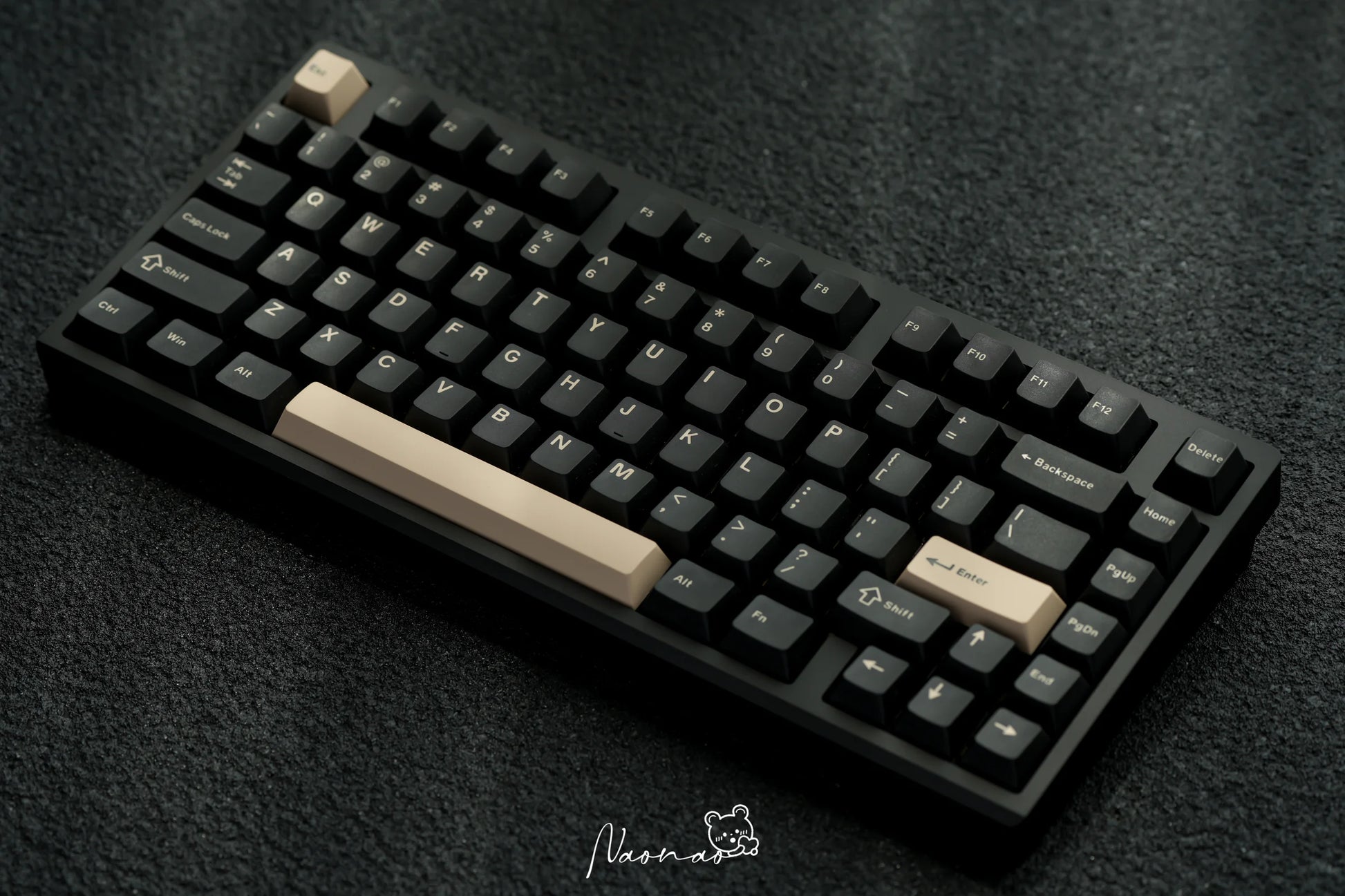

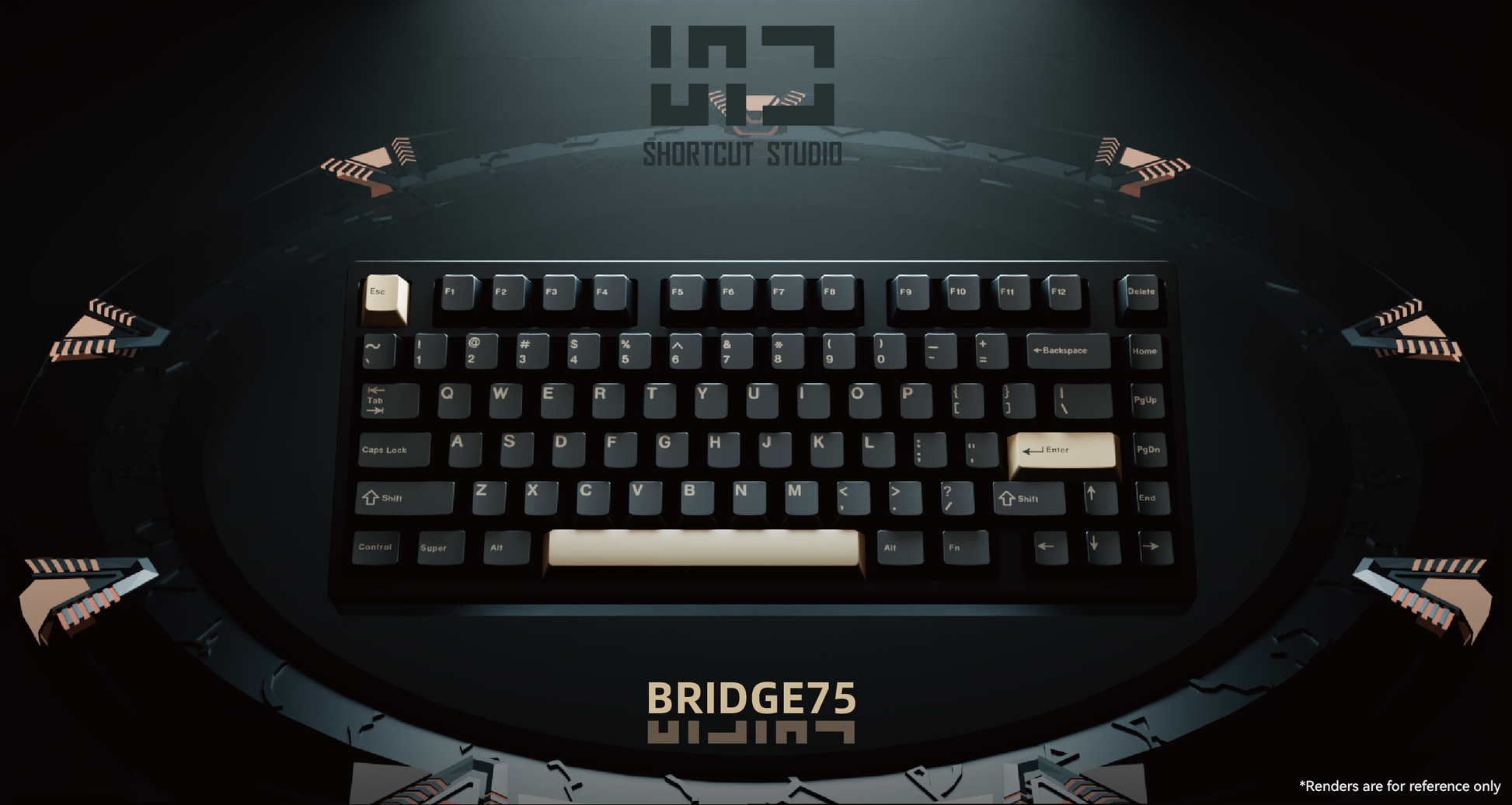

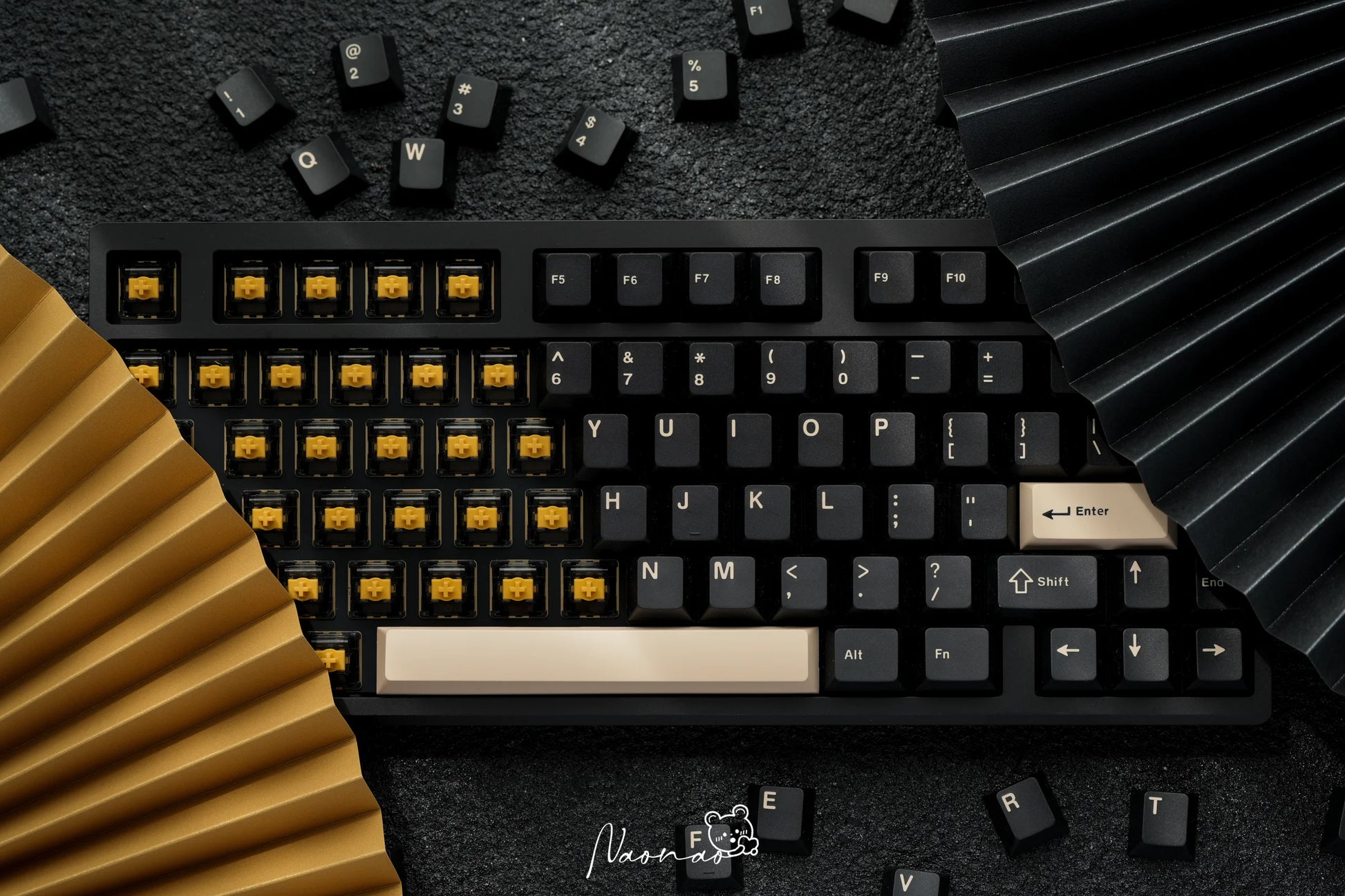

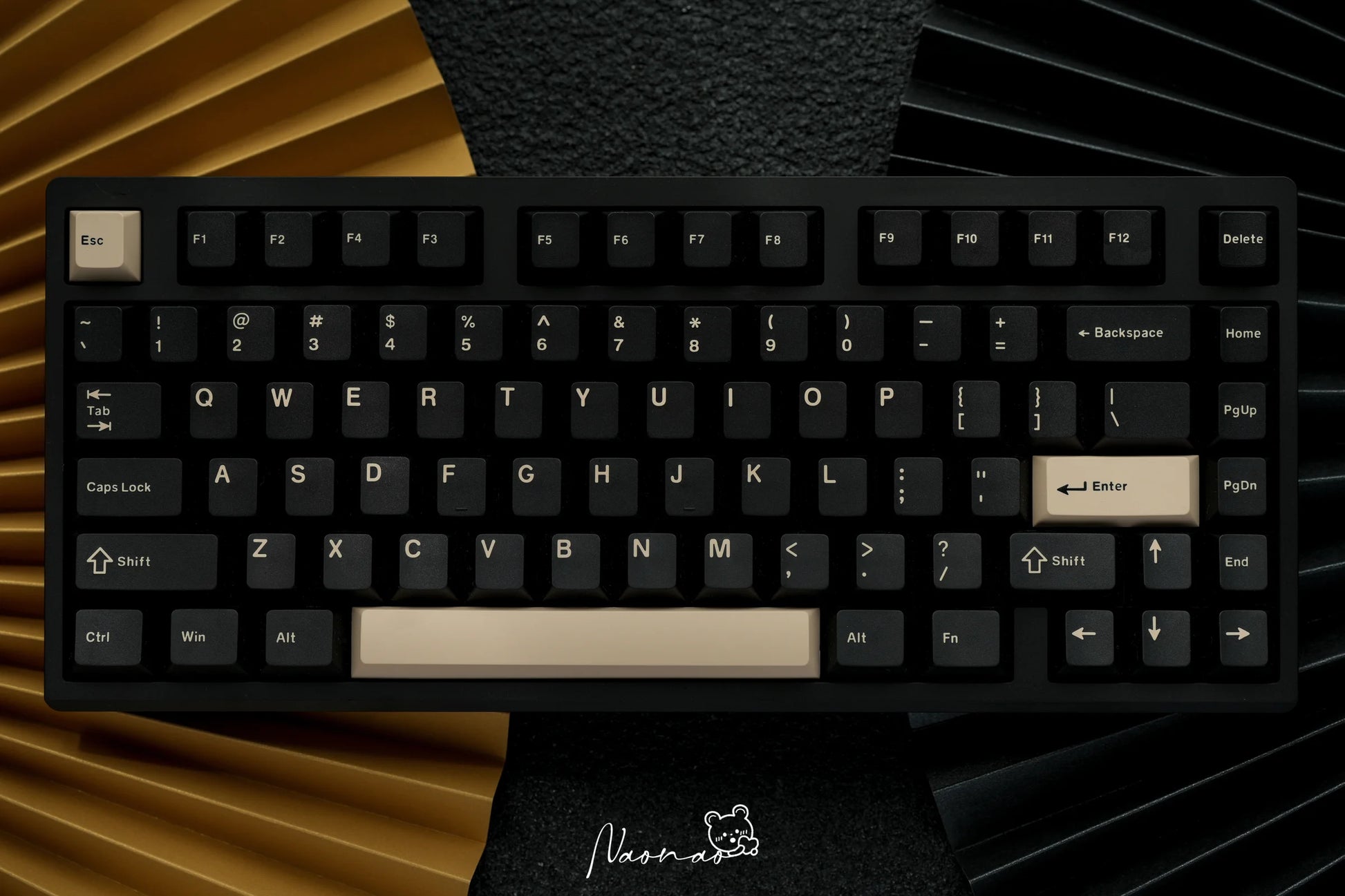

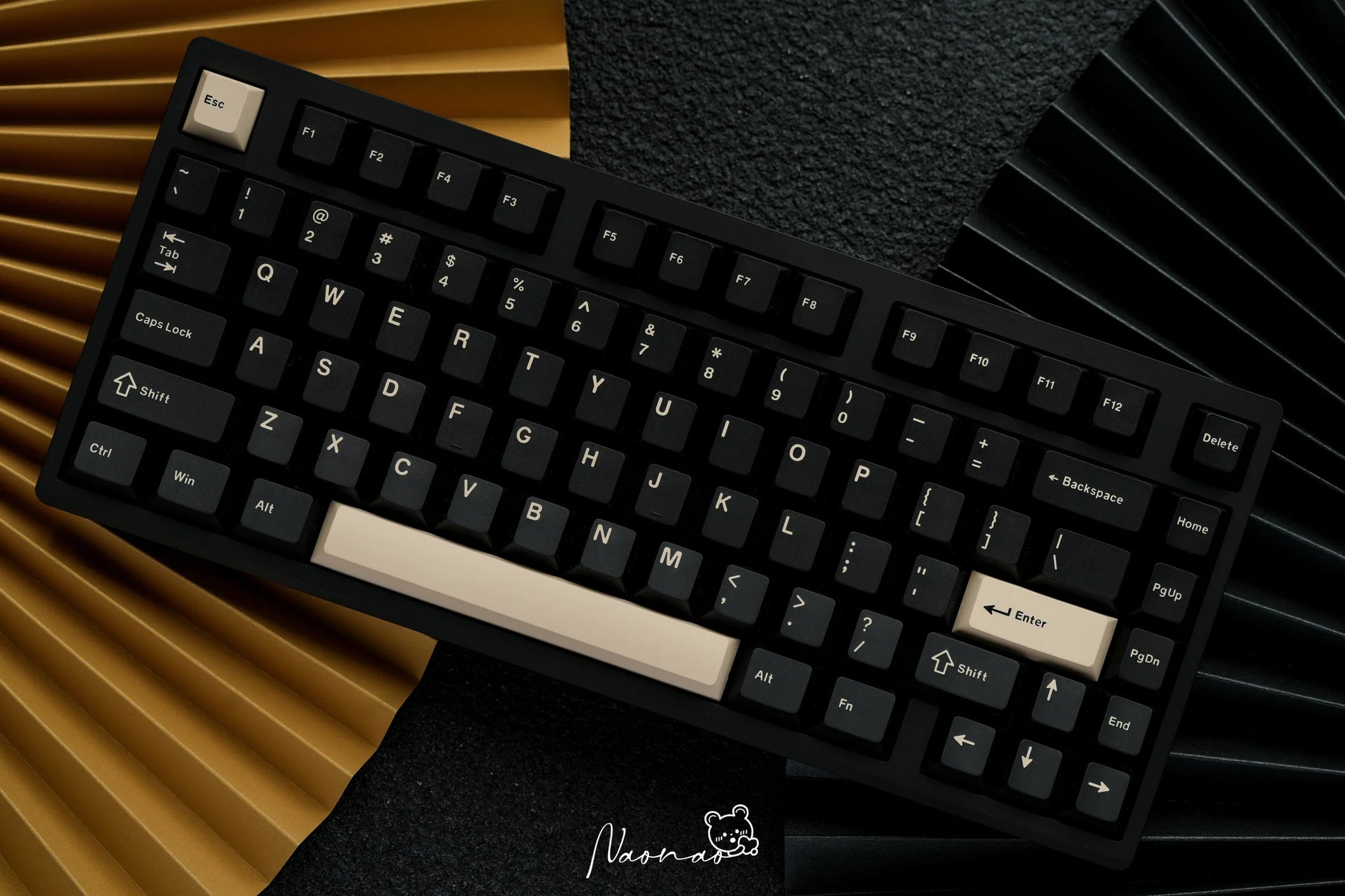

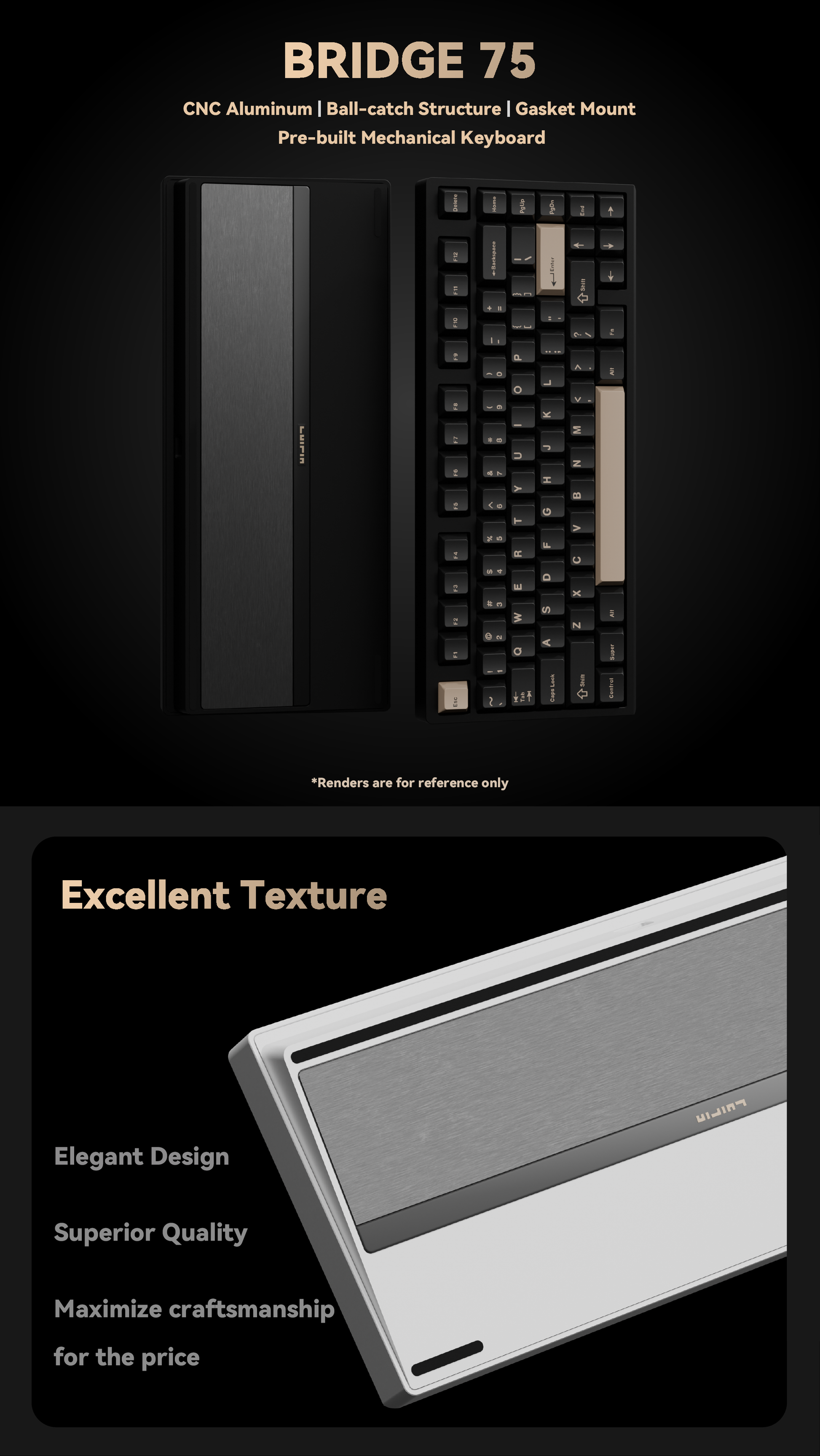

The Bridge75 is an aluminum mechanical keyboard that's ready to use right out of the box. Expertly CNC-machined for precision and durability, it features an intuitive ball-catch system for easy assembly and customization. Enjoy a premium typing experience with its superior design and acoustics, all at an amazing starting price.
Minimalism in Design:
The Bridge75 embodies the essence of minimalism without compromising on functionality. Its sleek profile features a low front height of 1.82cm and a 6.5° typing angle, which are meticulously designed to provide a comfortable typing experience, whether you prefer using a wrist rest or not. The brushed stainless steel weight at the back of the keyboard not only enhances the visual appeal but also elevates the acoustic performance, delivering a typing experience that is both pleasing to the eye and the ear.

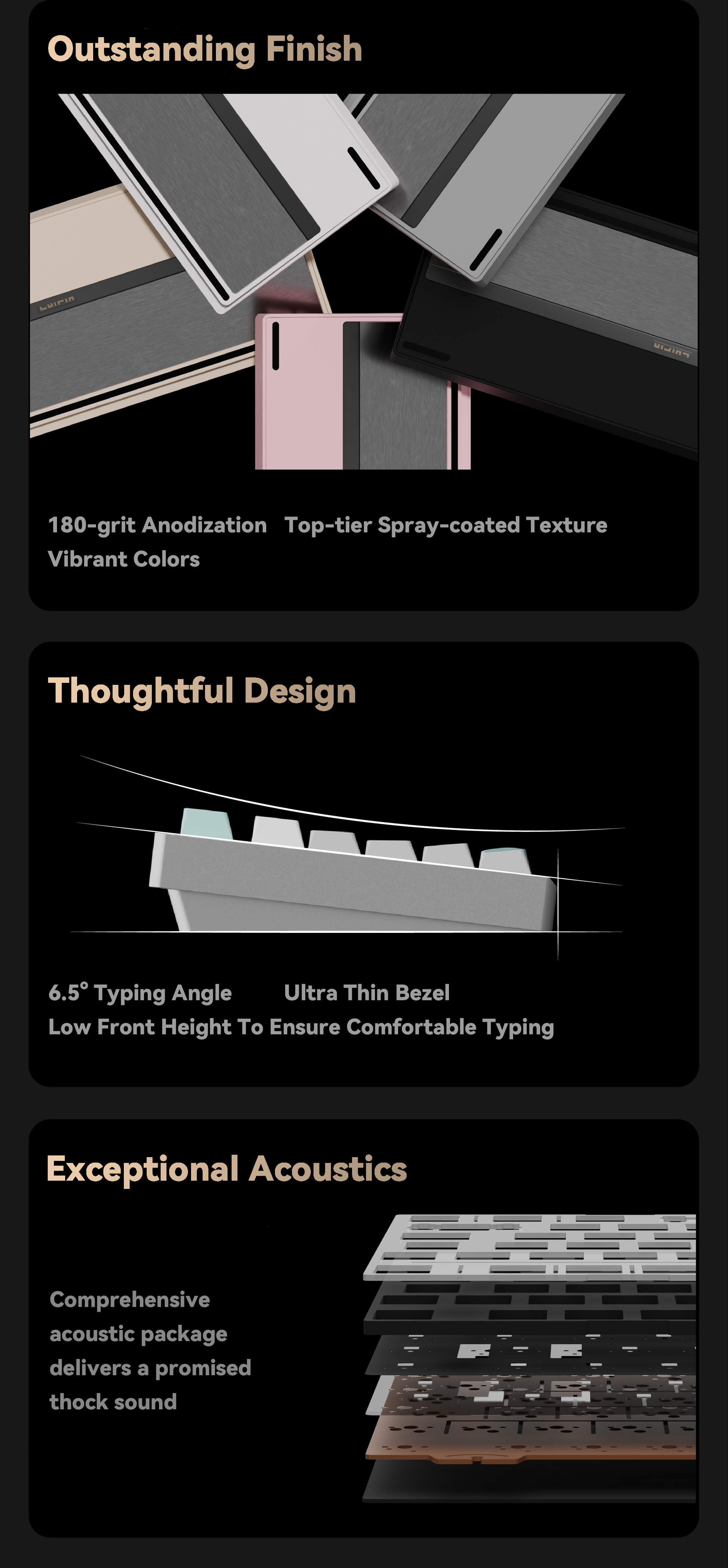

Outstanding Texture:

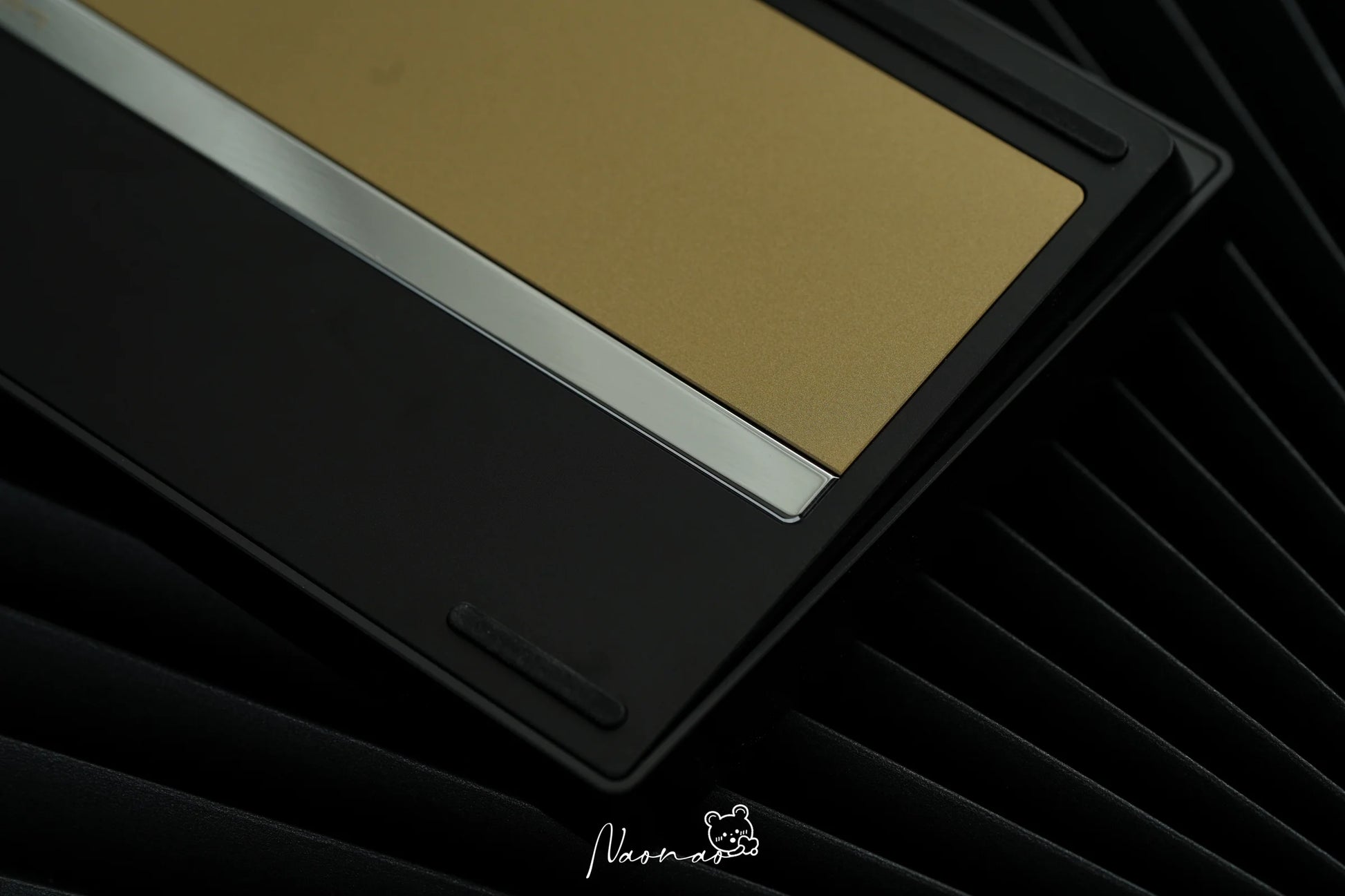

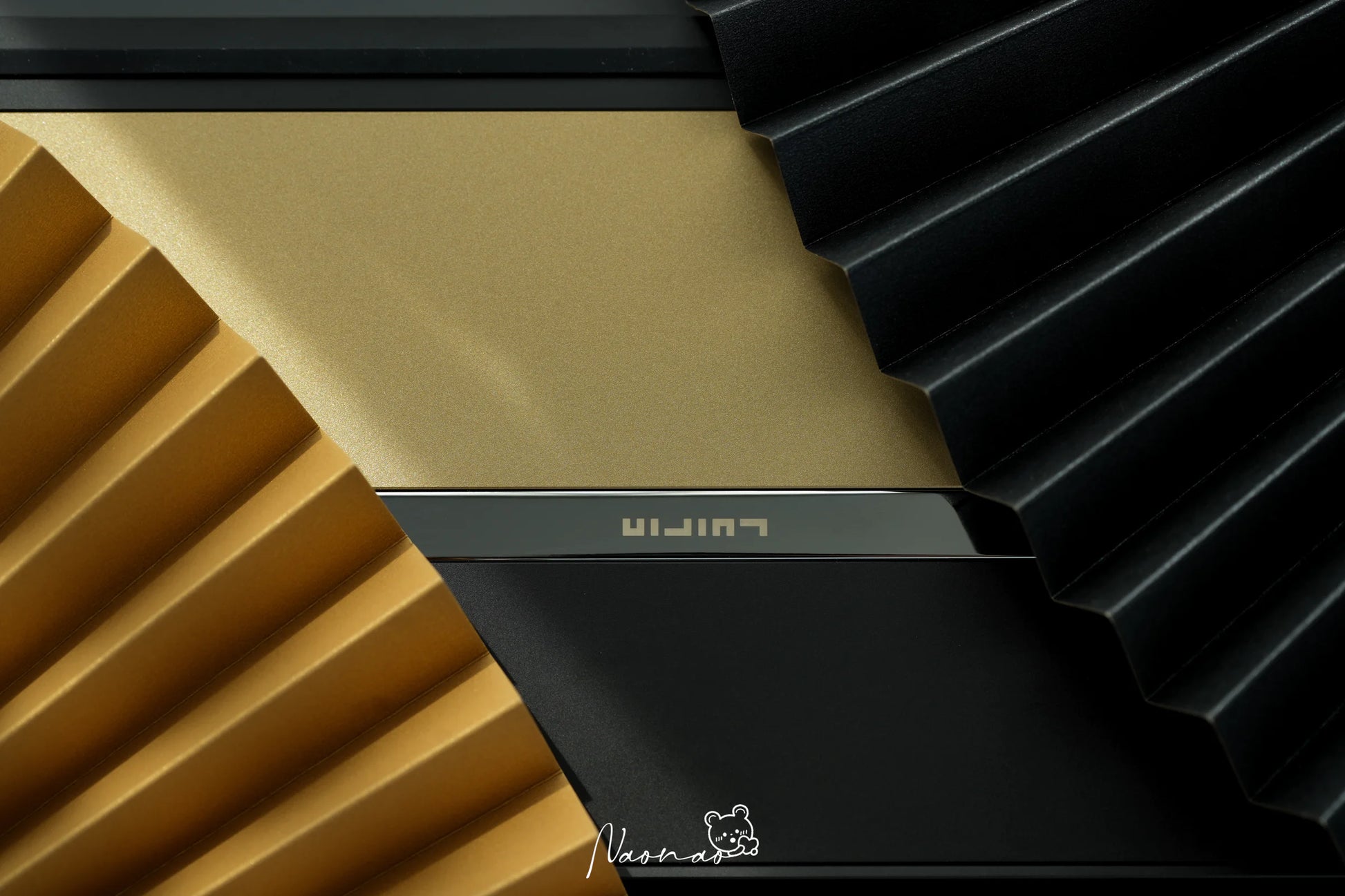

Shortcut Studio is committed to providing the finest surface finishing among products in this price range. The anodized cases of the Bridge75 undergo a meticulous 180-grit sandblasting process prior to anodization. This treatment ensures a remarkably smooth and refined surface texture that is both pleasing to the touch and to the eye. The spray-coated cases are also produced by a top manufacturer utilizing high-quality toners to achieve a vibrant and standout finish.

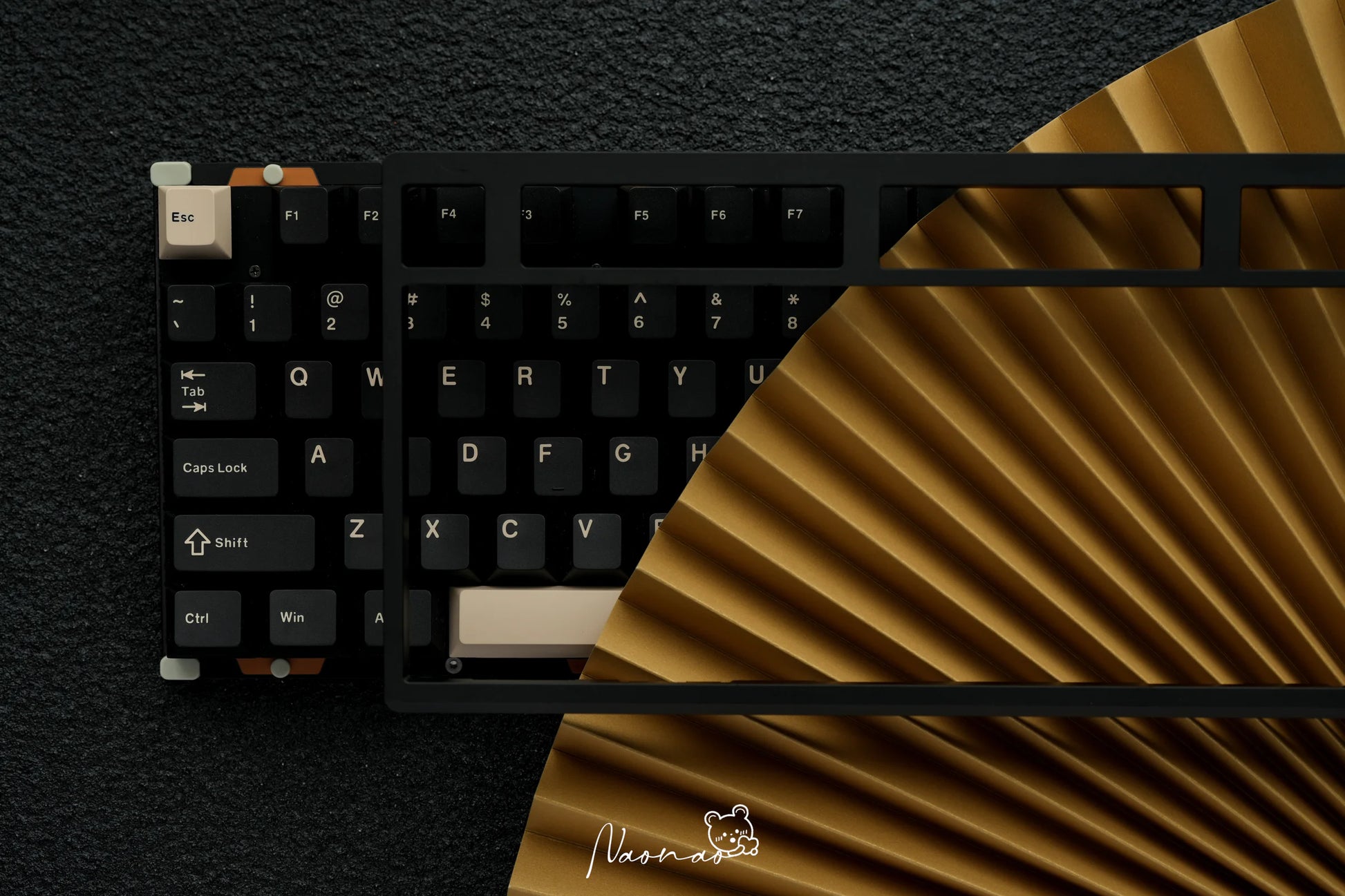

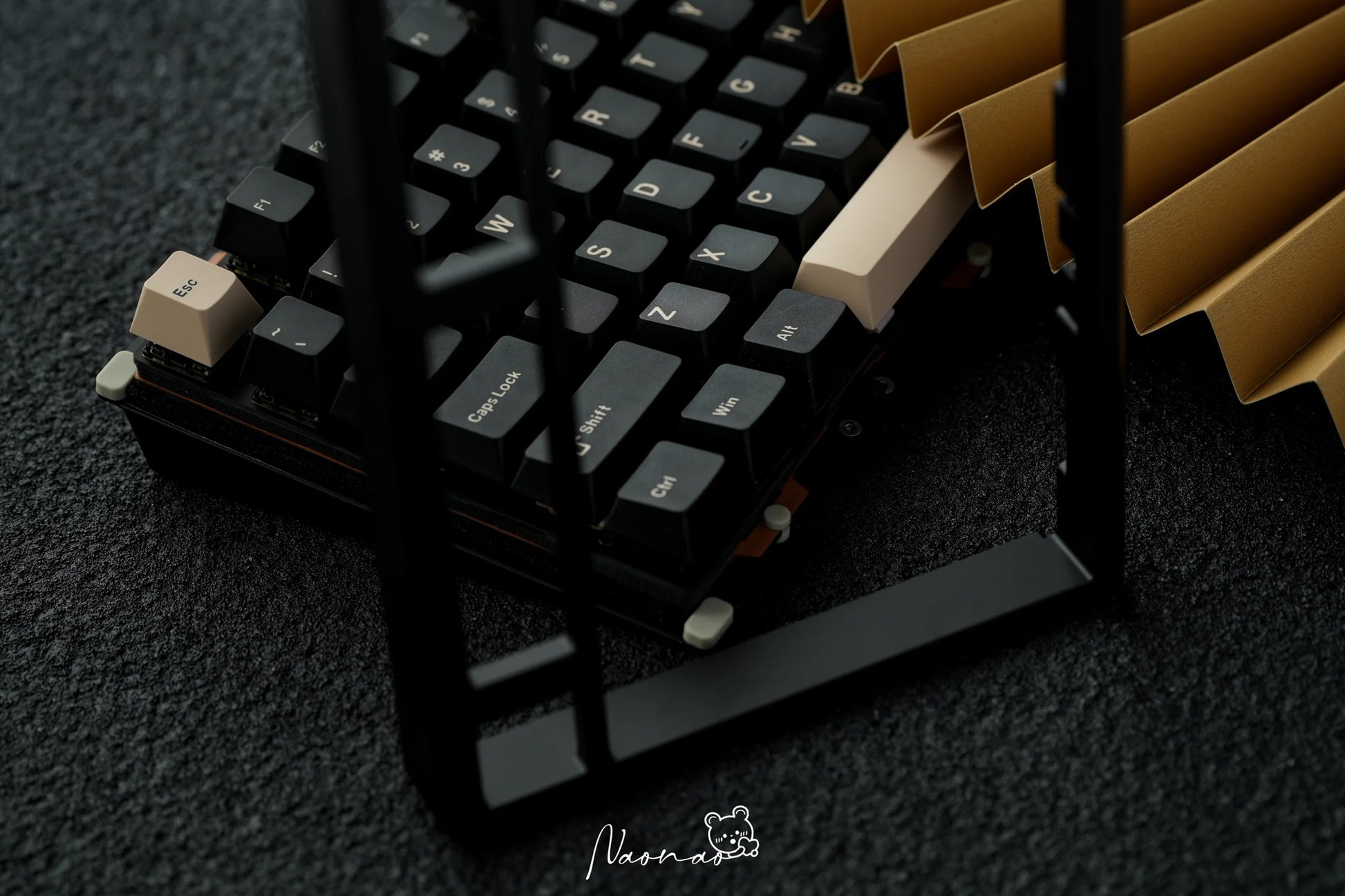

Easy Disassembly:
Although the Bridge75 comes as a pre-assembled kit, we've designed it with customization in mind. Featuring a premium ball-catch mechanism, typically found in high-end mechanical keyboards, the Bridge 75 opens effortlessly without the need for tools. Coupled with its hot-swappable PCB, you can conveniently swap out switches and modify the foams to tailor the typing feel and sound profile to your personal preferences.
Exceptional Acoustics:
The Bridge75 boasts an acoustic package that rivals, if not surpasses, those of other same-level mechanical keyboards. This superior sound performance is achieved through a meticulous combination of materials: INOAC Poron foam, an IPXE sheet, a PET sheet, and EPDM case foam. Regardless of the switch selected, the keyboard is designed to deliver exceptional acoustics.
Wireless Connectivity and VIA Compatible:
The Bridge75 provides three modes of connectivity, wired, Bluetooth, and 2.4G, to ensure maximum flexibility in your use. For extended battery life, choose the Plus version, which offers the option of batteries up to 8000mAh. Furthermore, the keyboard's compatibility with VIA software gives you the power to tailor keymaps to meet your unique needs.

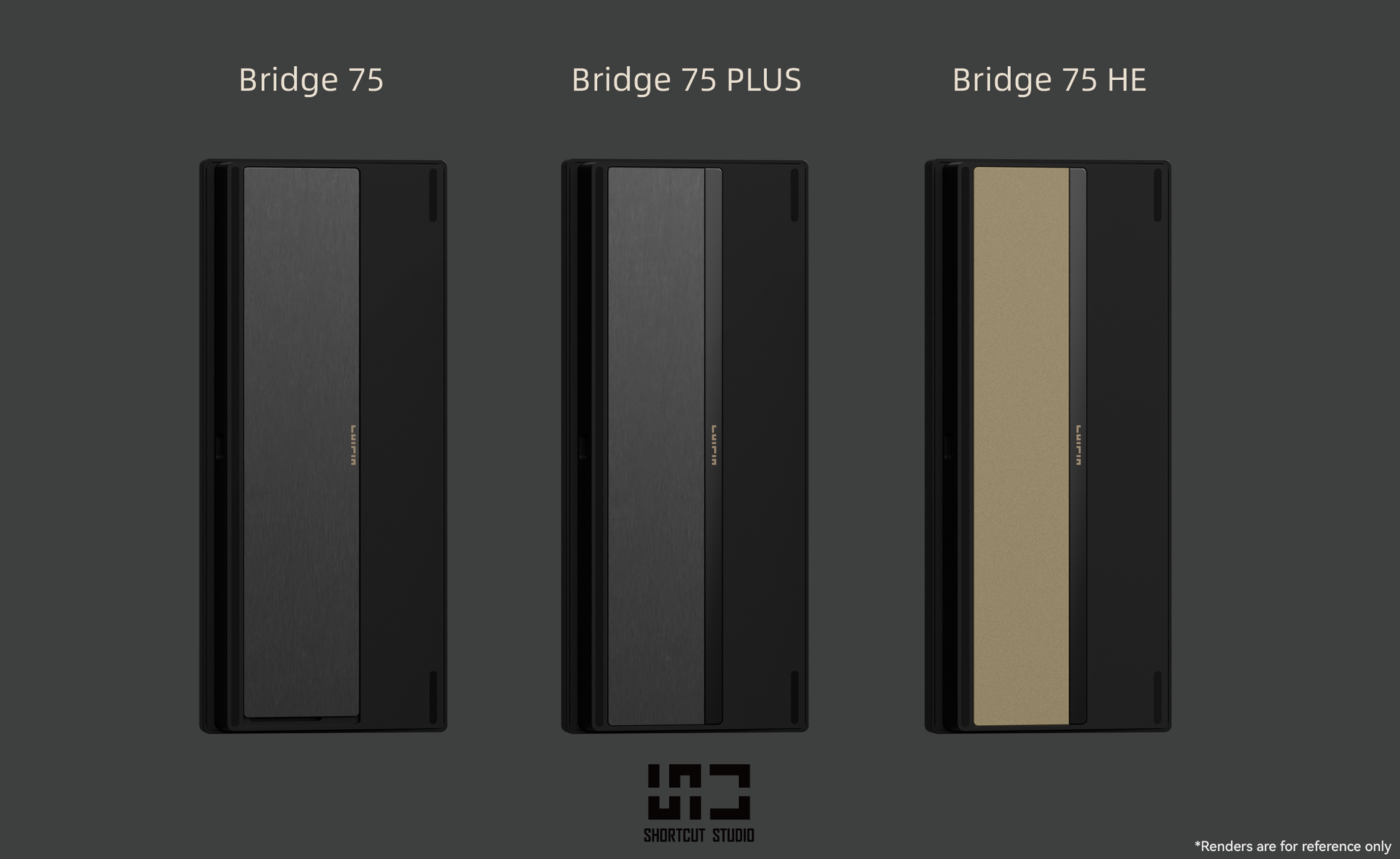

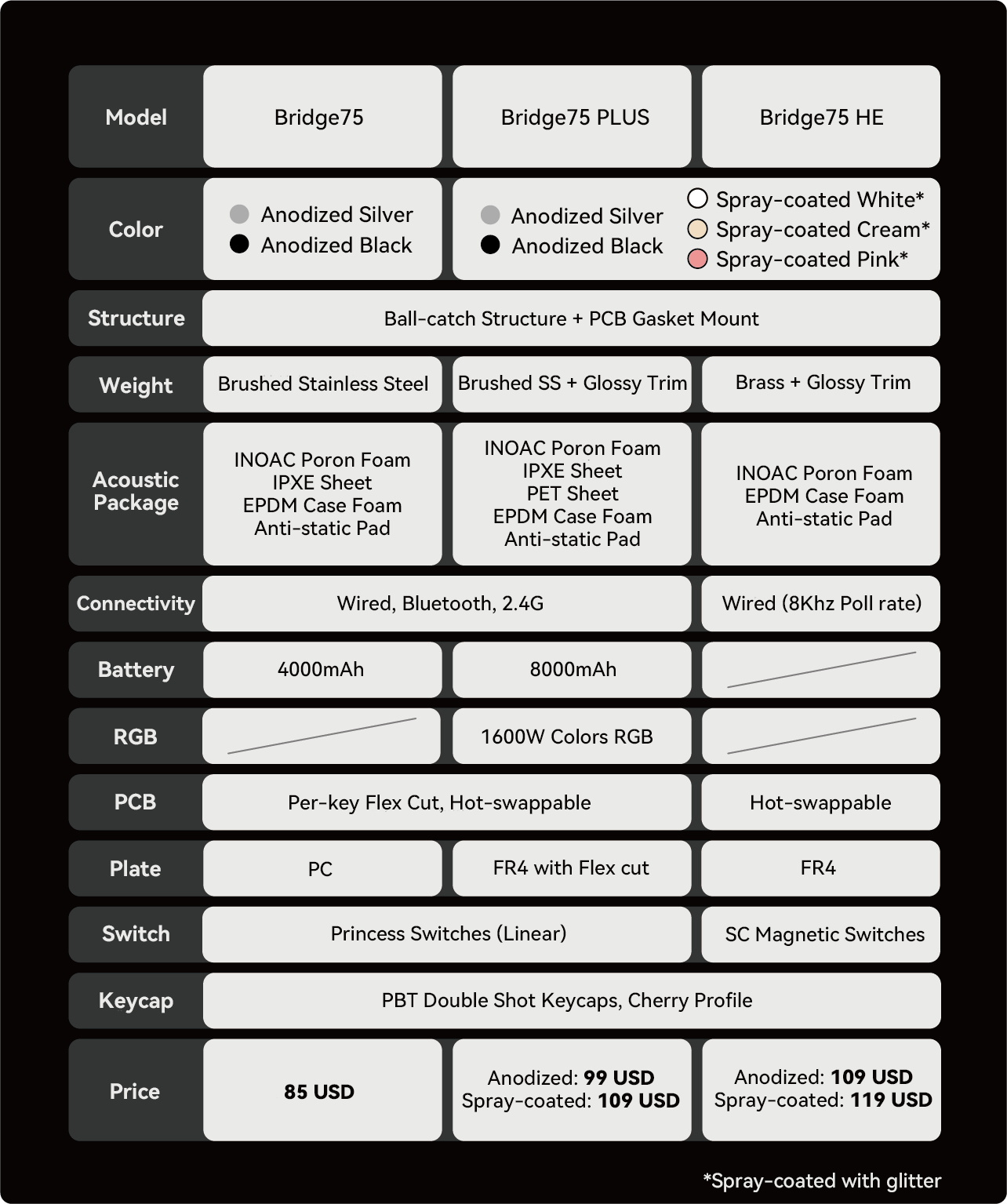

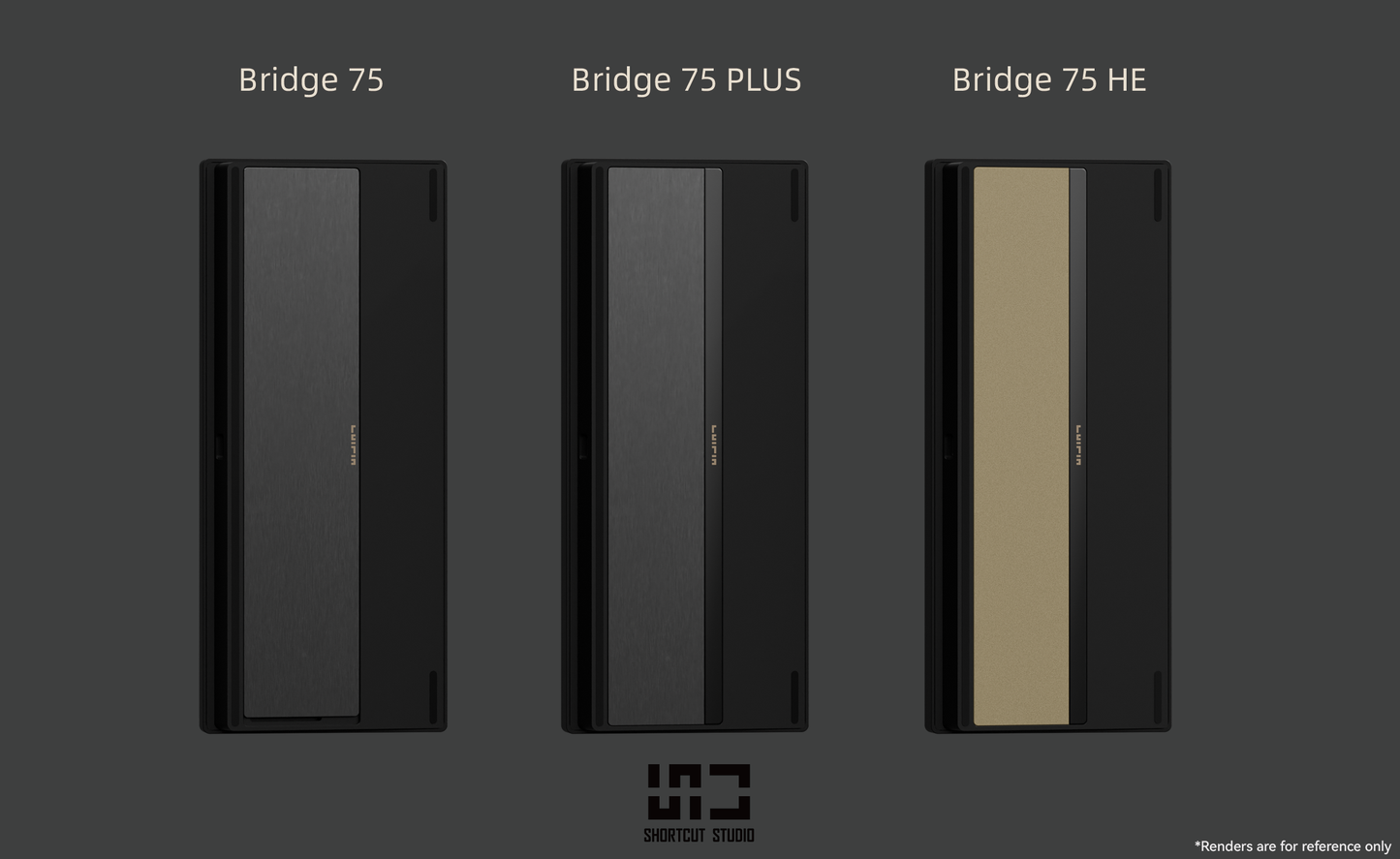

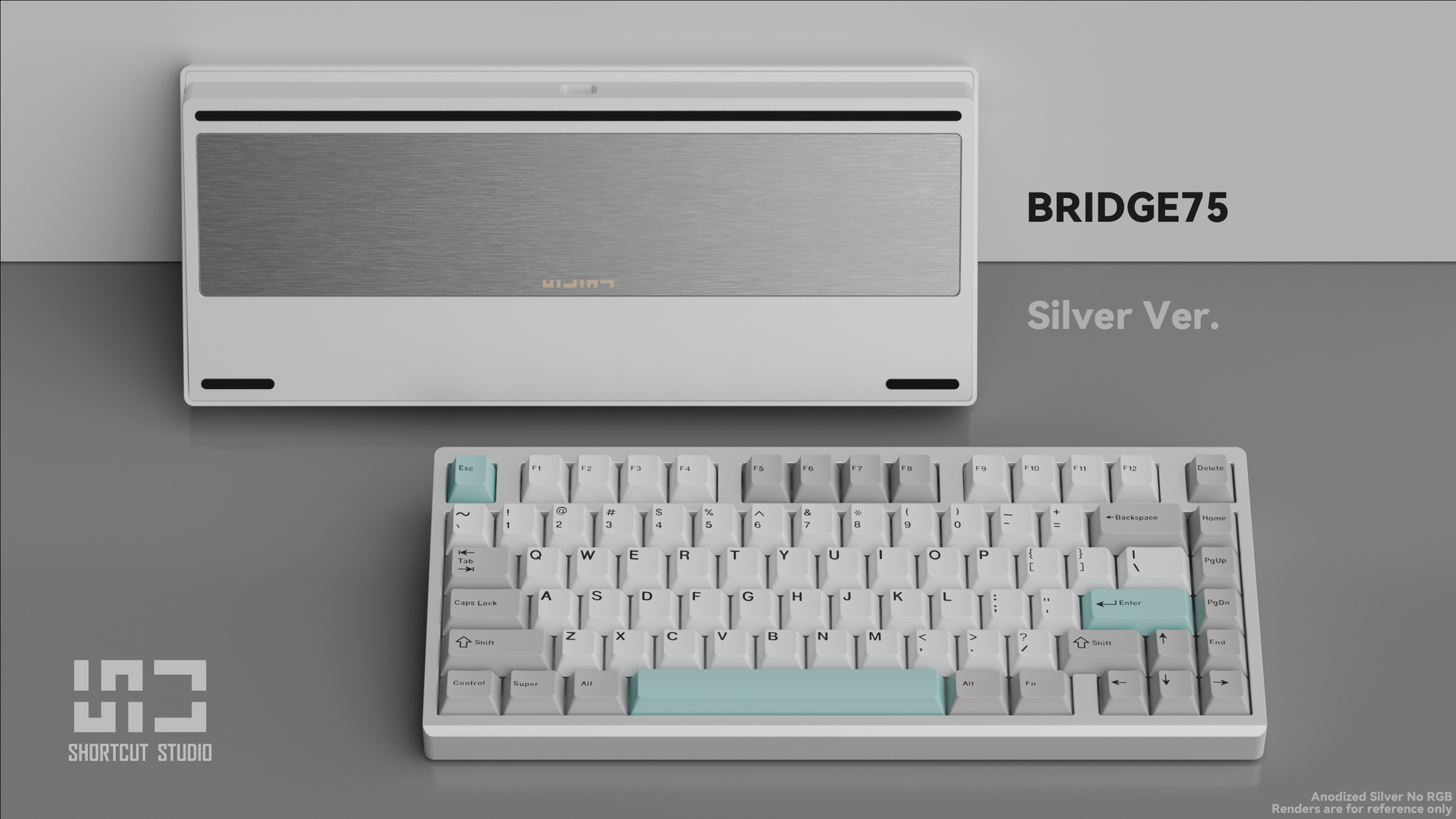

Bridge75 Specifications:
- Mount: Gasket
- Layout: 75%
- Case Connection: Screw-less Ball-catch Mechanism
-
PCB:
- Hot-swappable
- Wired / Bluetooth / 2.4G
- Per-key Flex-cut
- 1.2mm Thickness
- Battery: 4000mAh
-
Foam:
- INOAC Poron Foam
- IPXE Sheet
- EPDM Case Foam
- Anti-static Pad
-

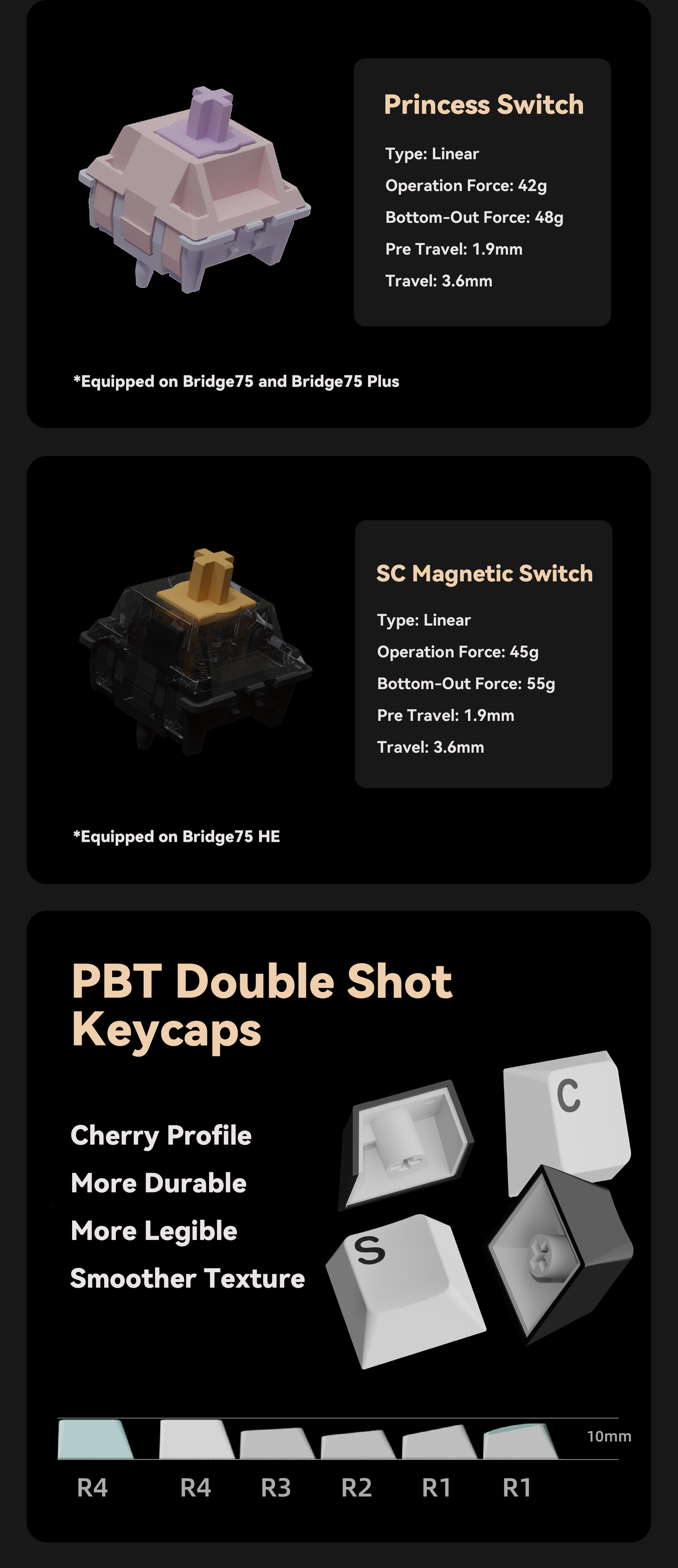

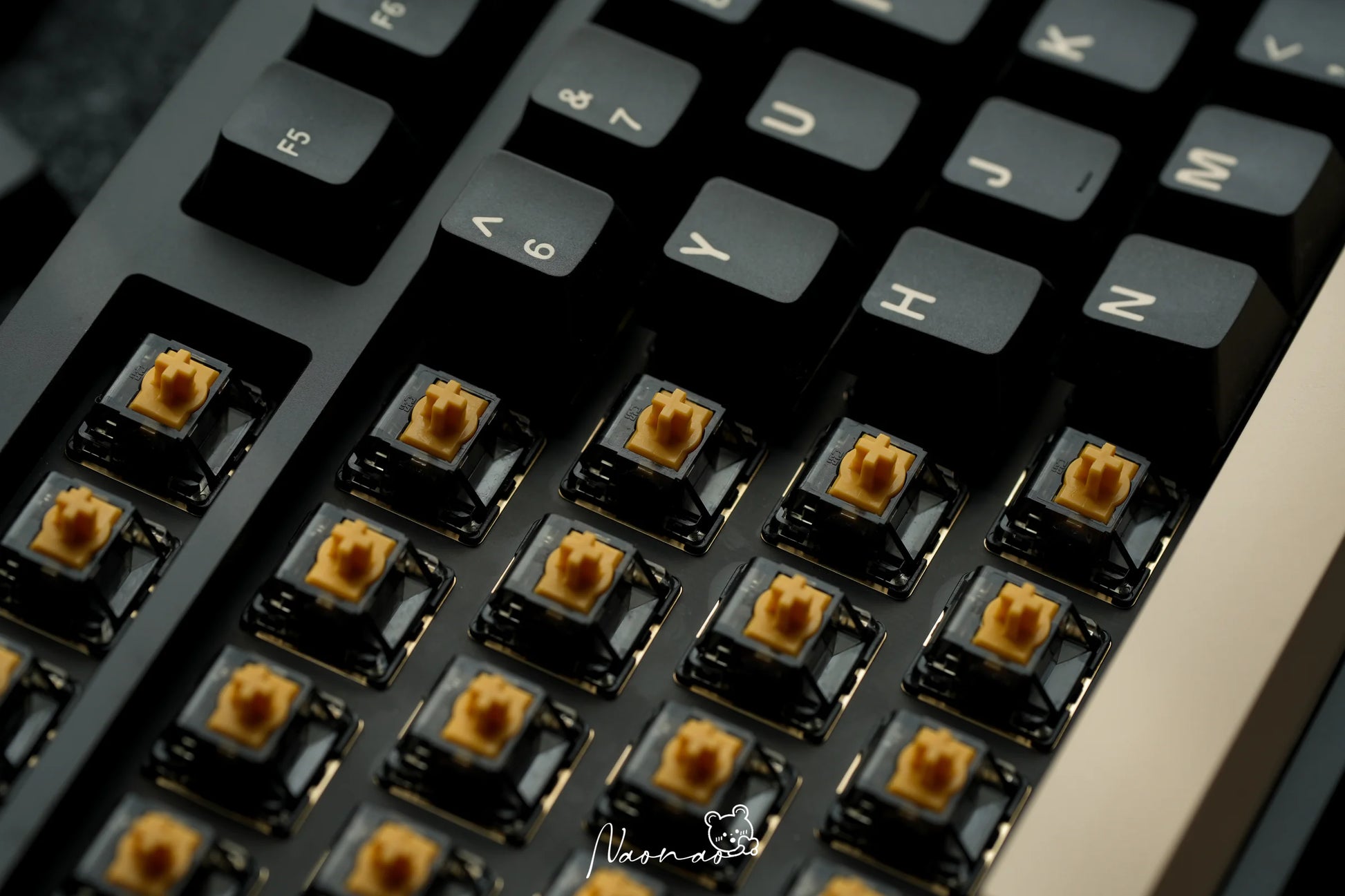

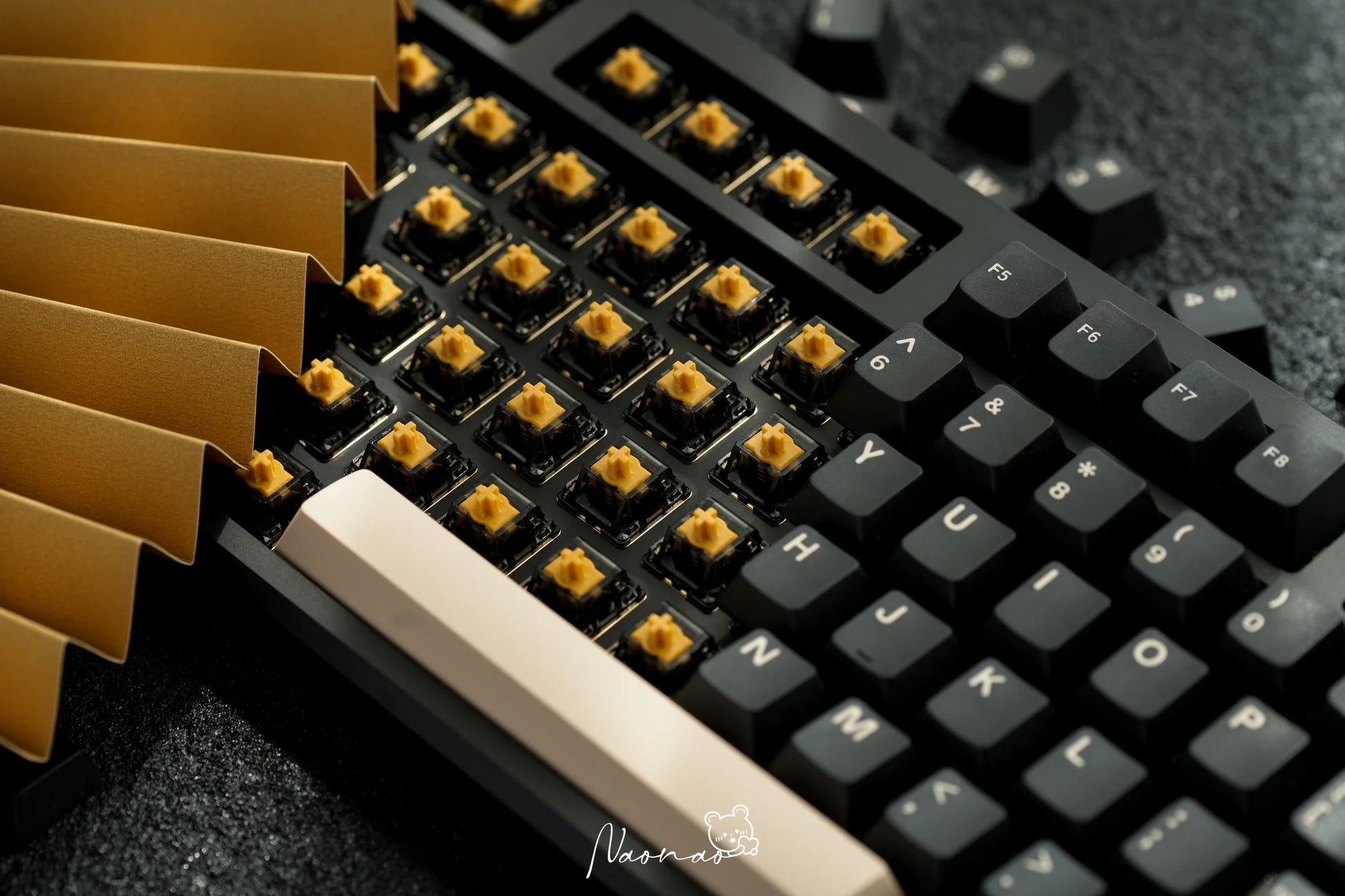

Switch: Princess Switch
- Linear
- 42g Actuation
- 48g Bottom-out
- 1.9mm Pre-travel
- 3.6mm Total Travel
-
Stabilizers: Plate-mount
-

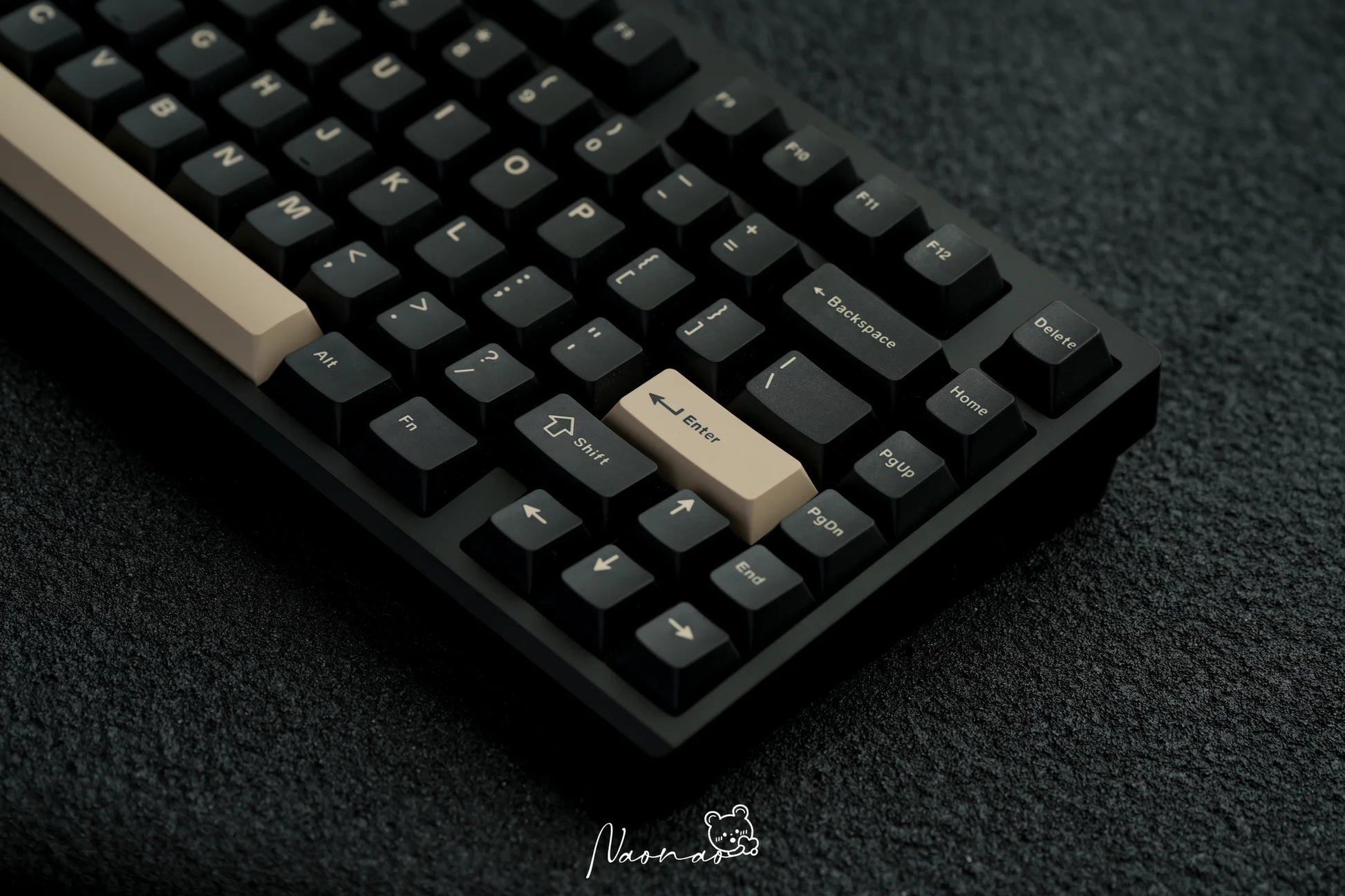

Keycaps:
- PBT Doubleshot
- Cherry Profile
-

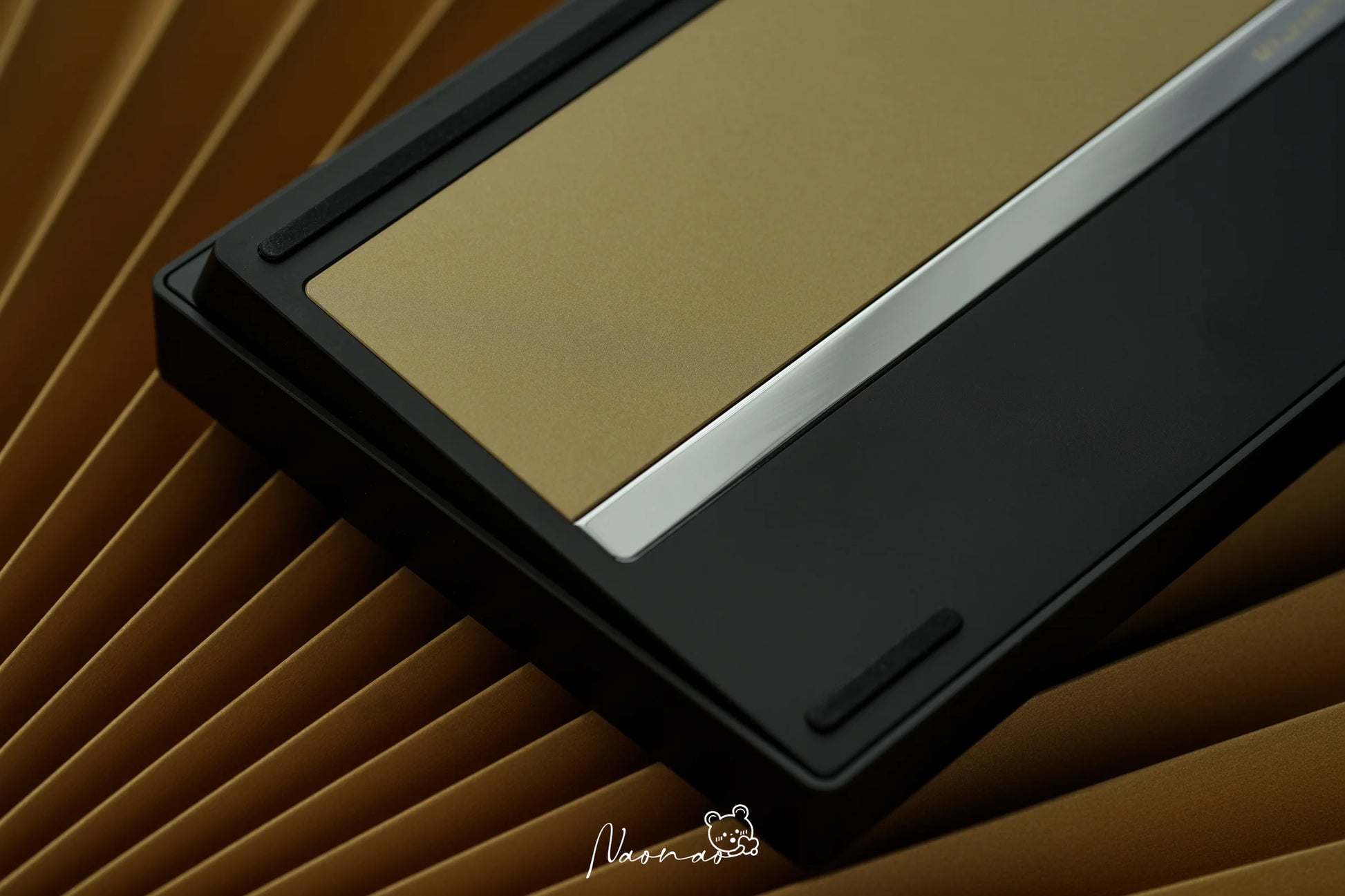

Material:

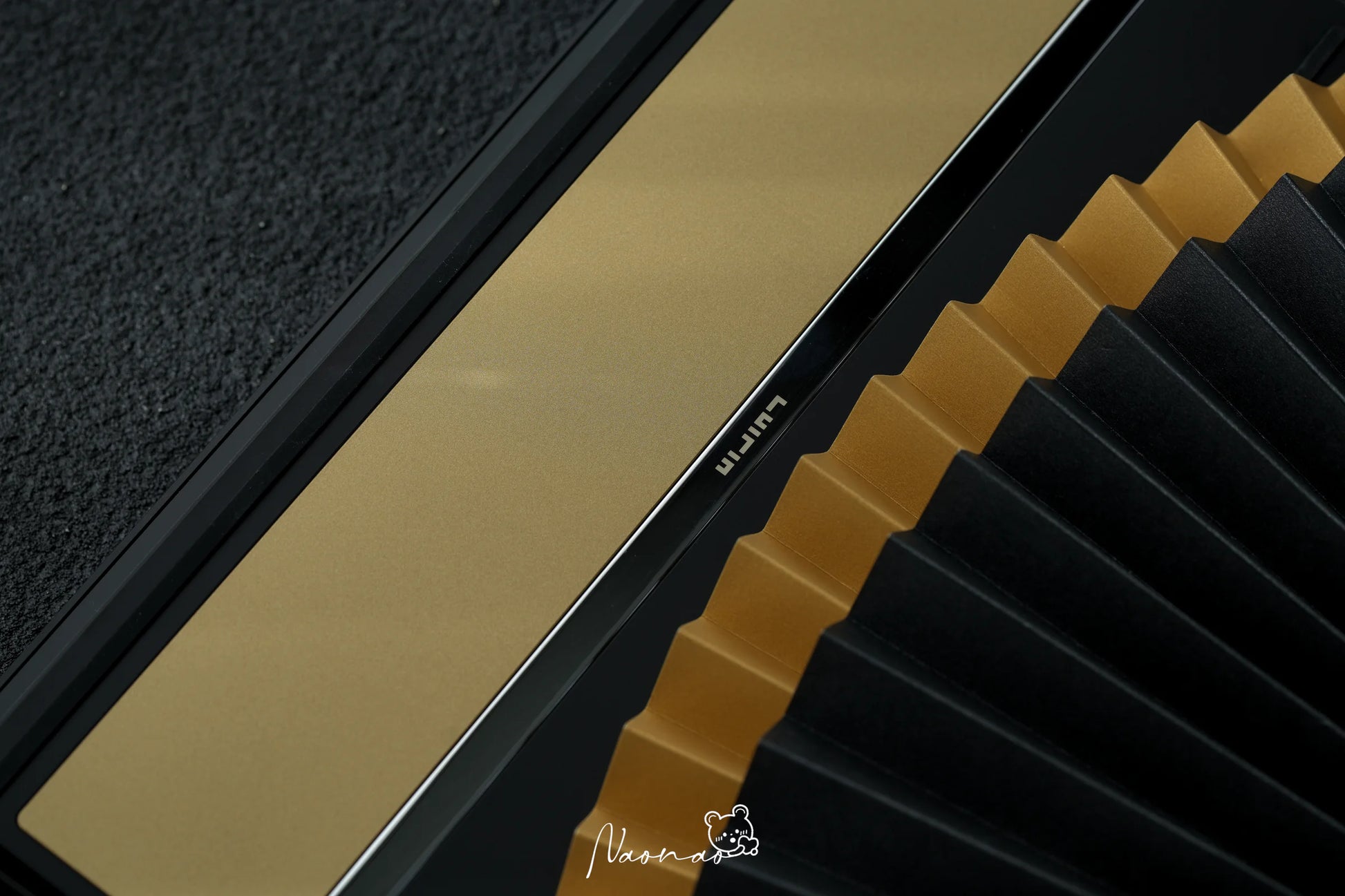

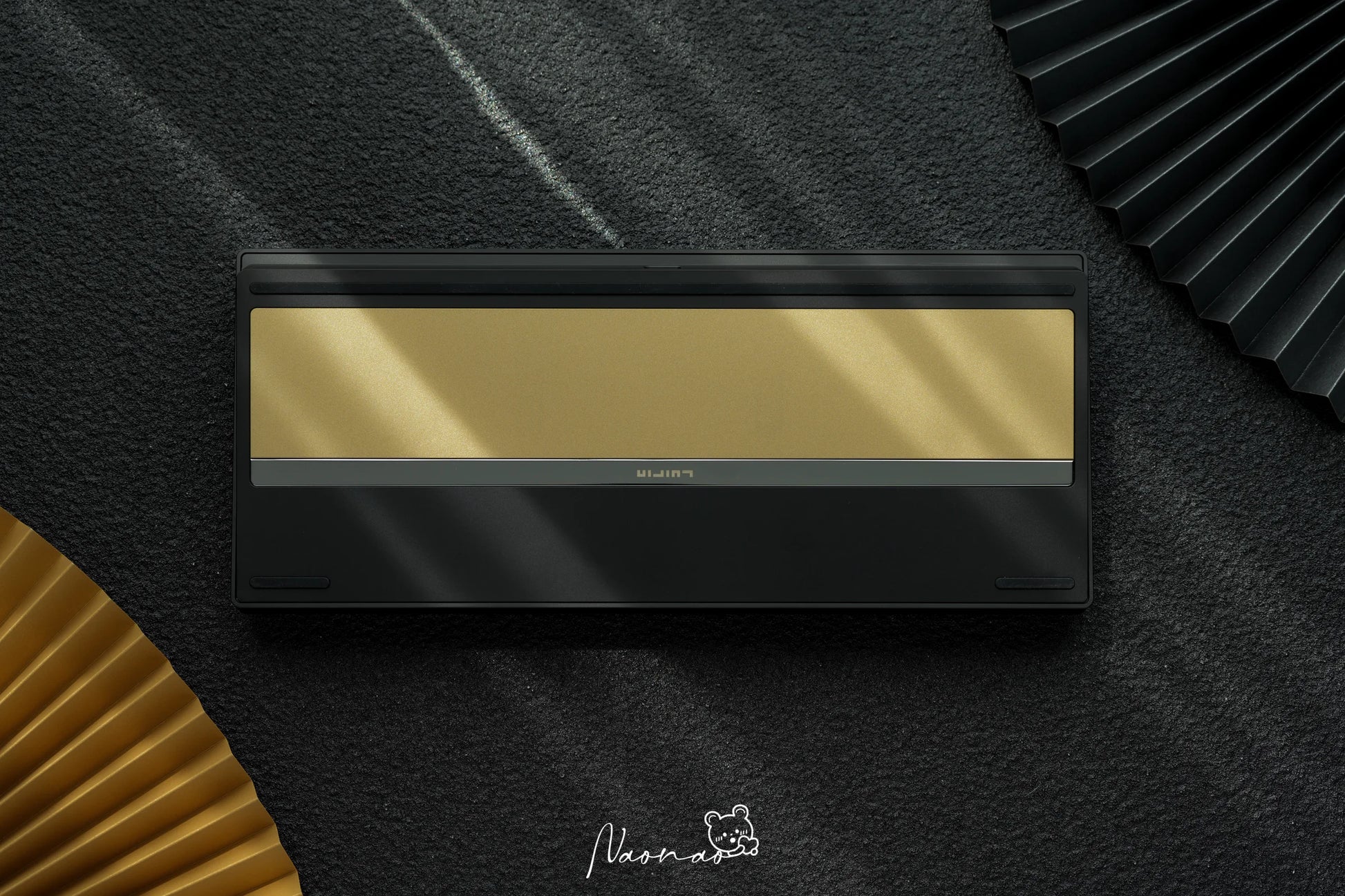

- Weight: Brushed Stainless Steel
- Case: Aluminum
- Case Finish: Anodized
-

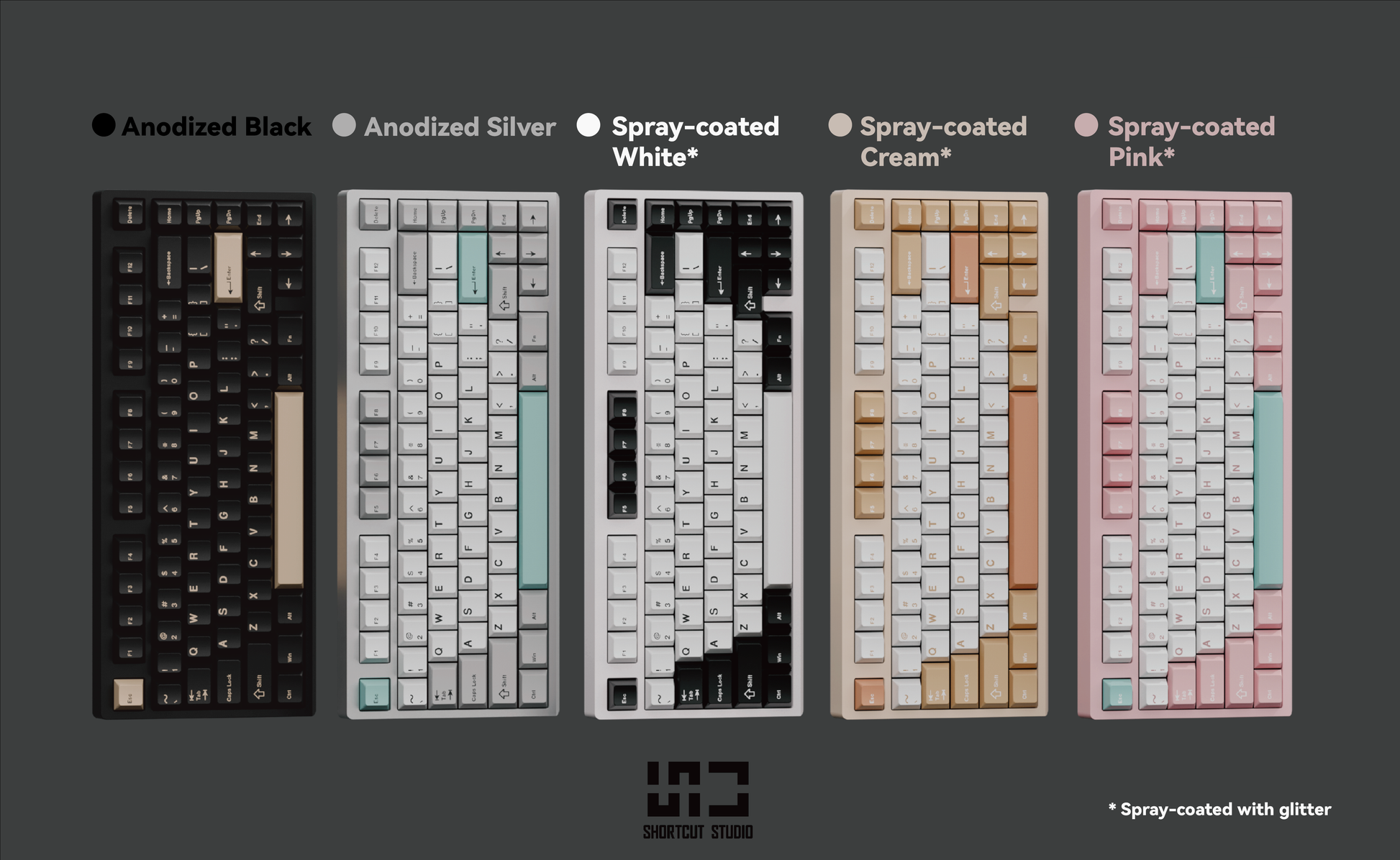

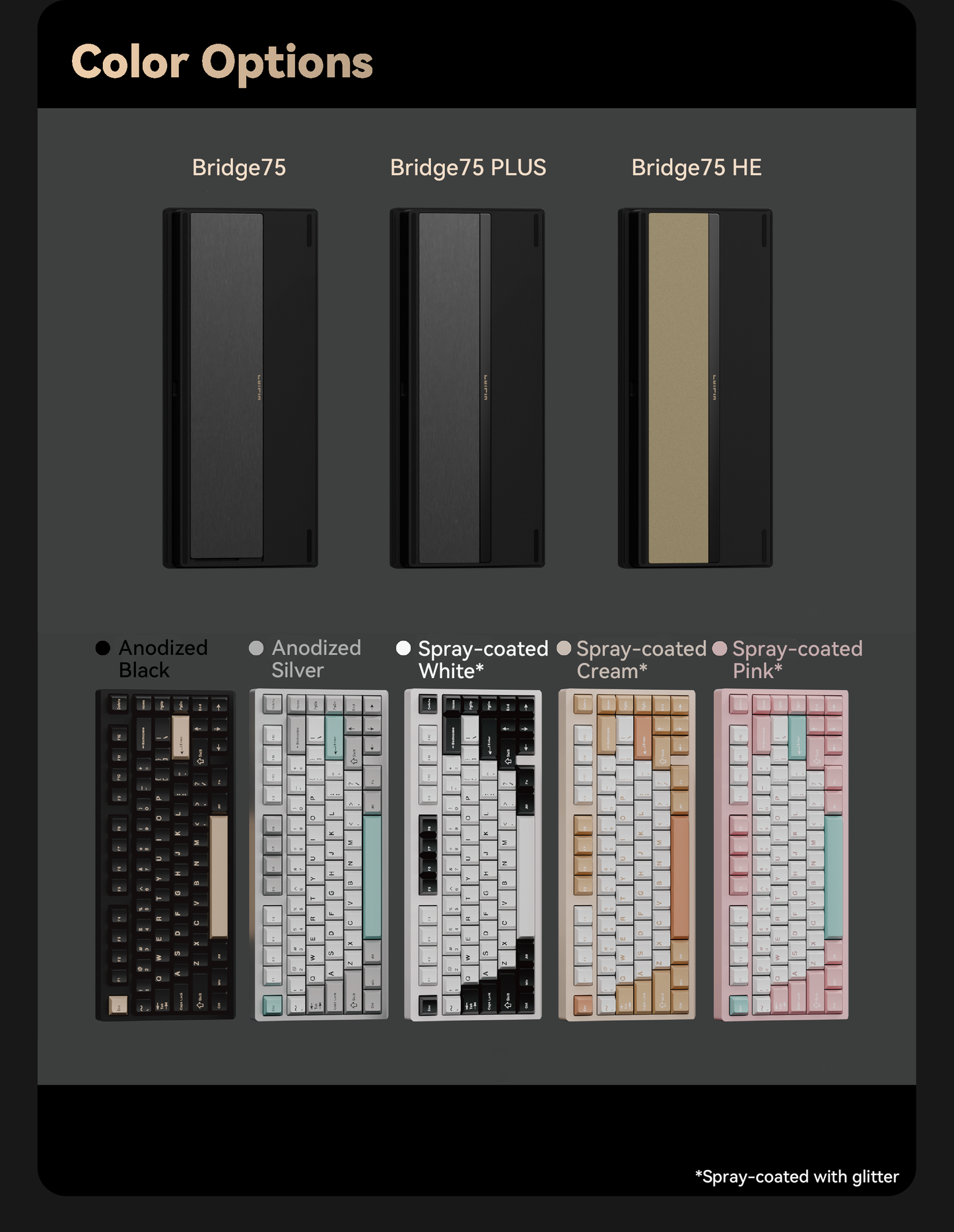

Available Colors:
- Anodized Silver
- Anodized Black
- Default plate: Polycarbonate
- Typing Angle: 6.5 degrees
- Front height: 1.82cm
- Dimensions: 315 x 135mm
- Weight: 1.7kg
Bridge75 PLUS Specifications:
- Mount: Gasket
- Layout: 75%
- Case Connection: Screw-less Ball-catch Mechanism
-
PCB:
- Hot-swappable
- Wired / Bluetooth / 2.4G
- Per-key Flex-cut
- 1.2mm Thickness
- 1600W RGB**
- Battery**: 8000mAh
-
Foam:
- INOAC Poron Foam
- IPXE Sheet
- EPDM Case Foam
- Anti-static Pad
-
Switch: Princess Switch
- Linear
- 42g Actuation
- 48g Bottom-out
- 1.9mm Pre-travel
- 3.6mm Total Travel
- Stabilizers: Plate-mount
-
Keycaps:
- PBT Doubleshot
- Cherry Profile
-
Material:
- Weight: Brushed Stainless Steel + Glossy Trim**
- Case: Aluminum
- Case Finish: Anodized
-
Available Colors:
- Anodized Silver
- Anodized Black
- Spray-coated White
- Spray-coated Cream
- Spray-coated Pink
- Default plate**: FR4 with Flex-cut
- Typing Angle: 6.5 degrees
- Front height: 1.82cm
- Dimensions: 315 x 135mm
- Weight: 1.7kg

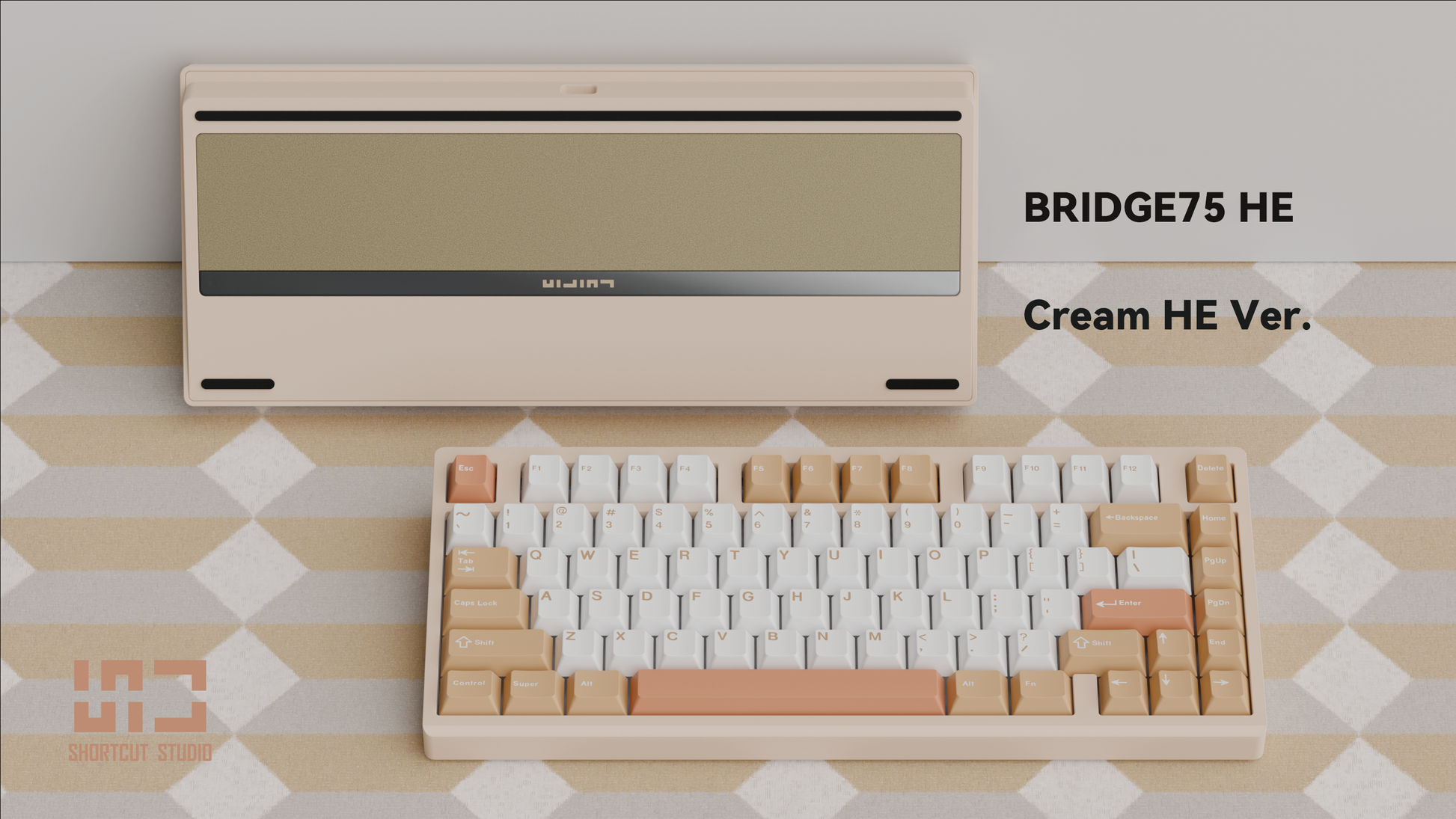

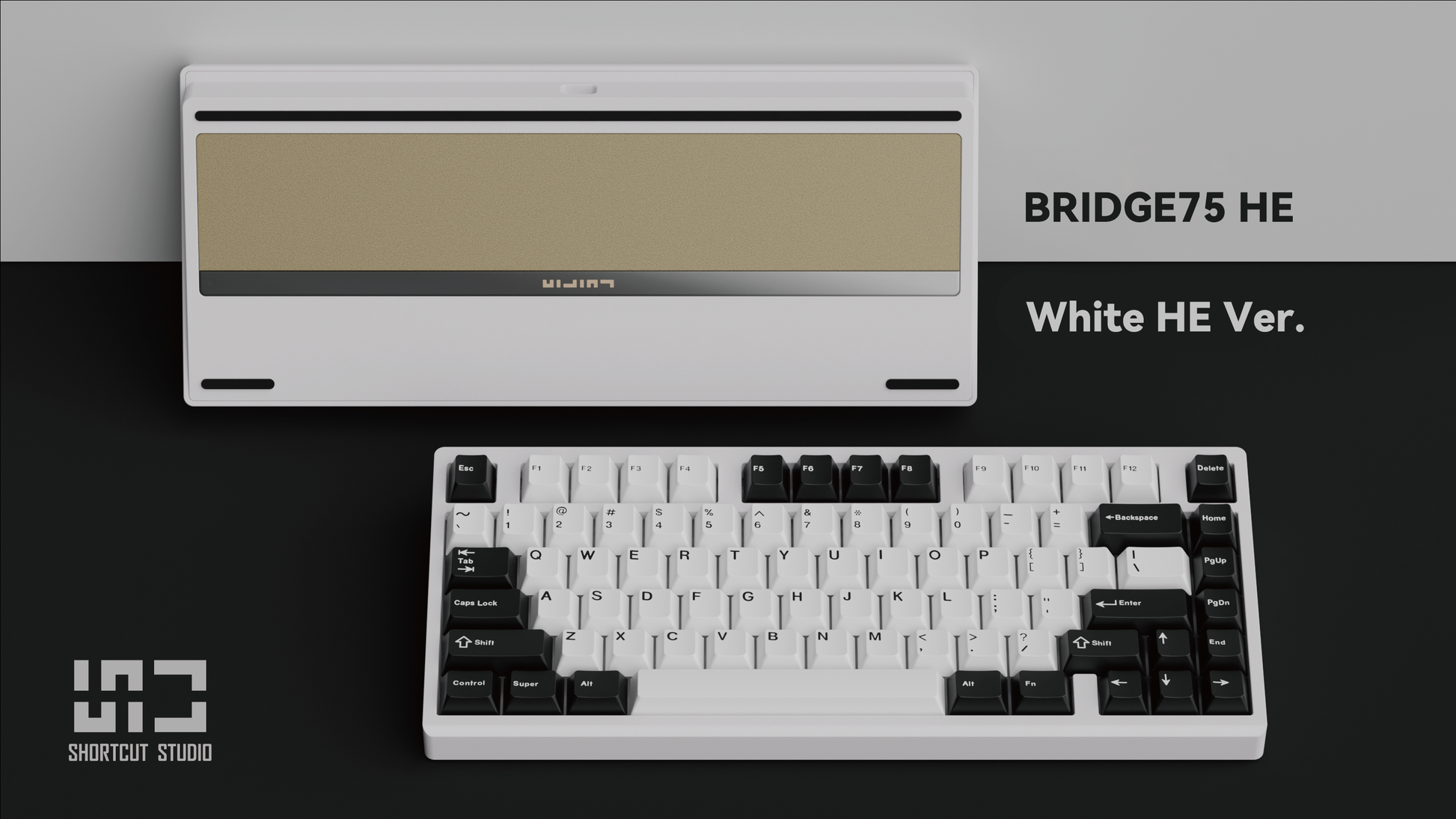

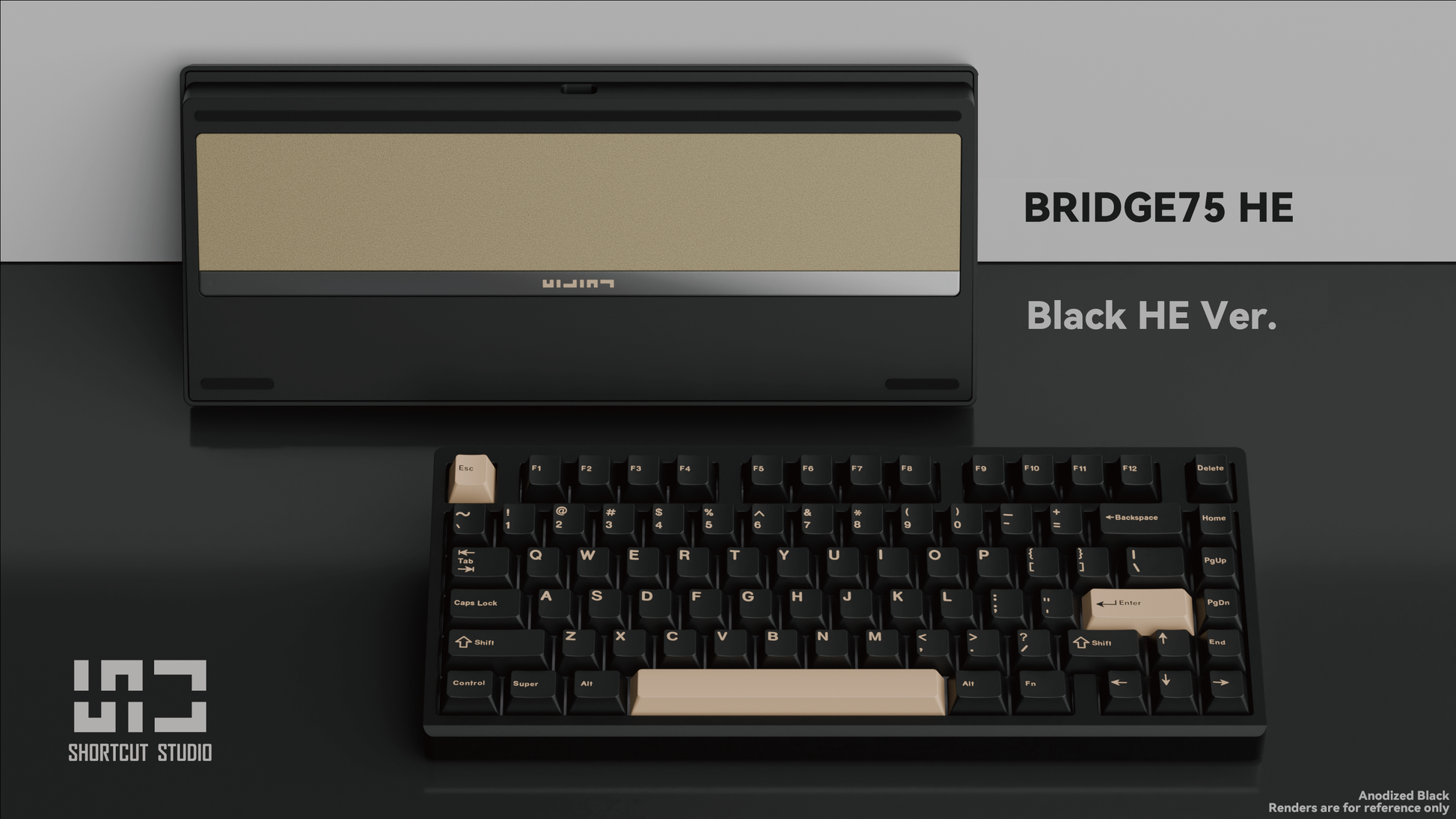

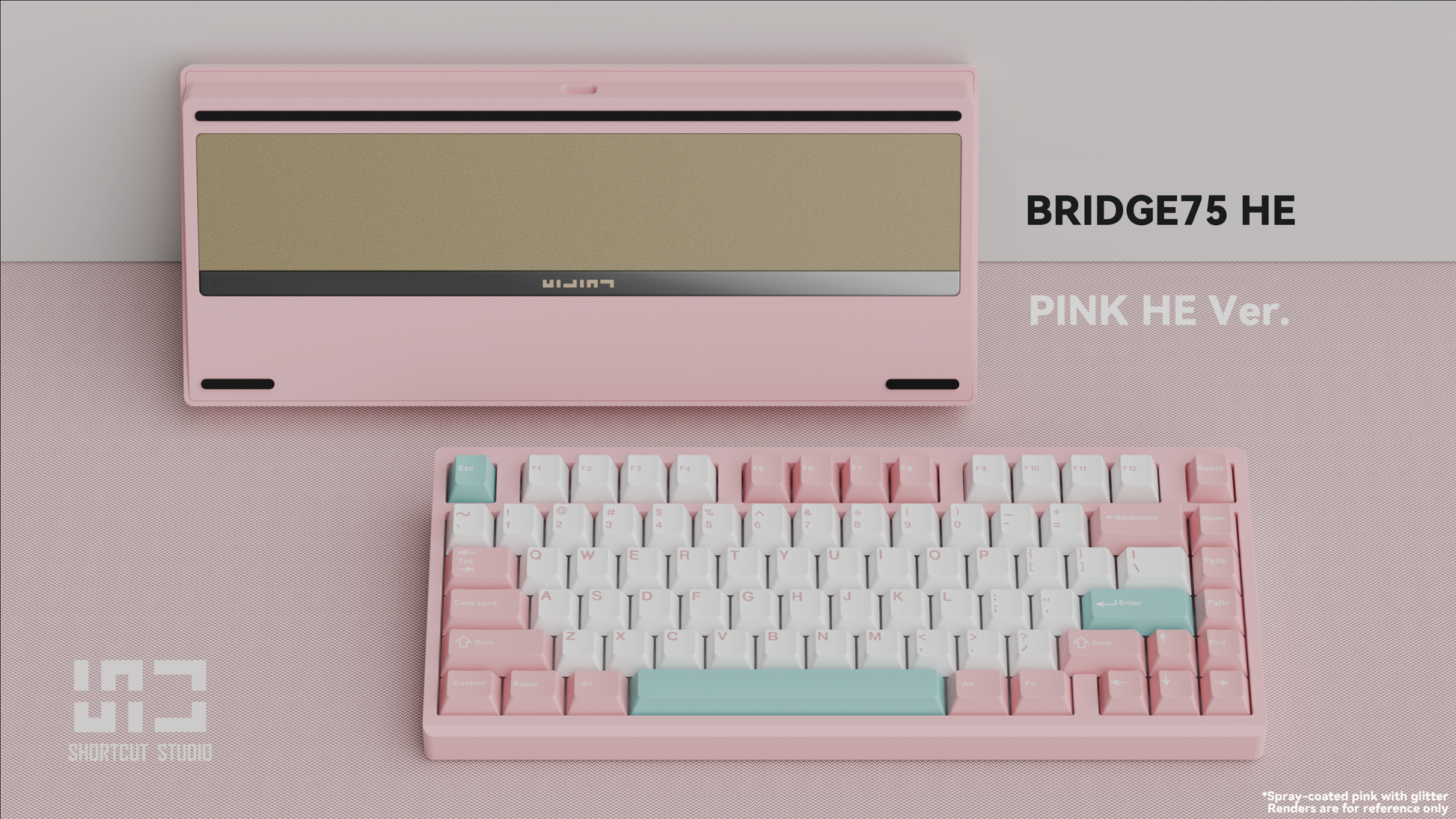

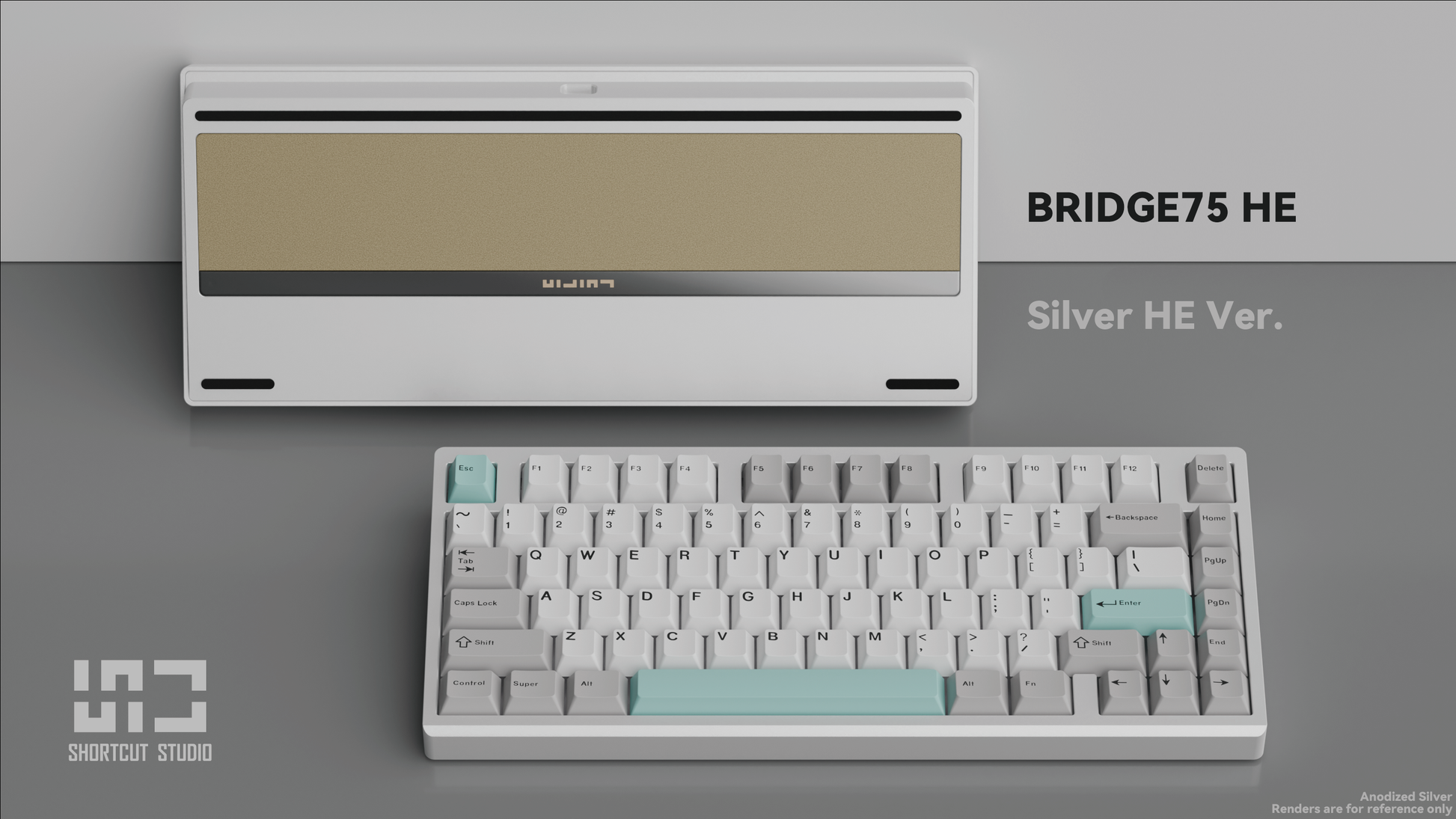

Bridge75 HE Specifications:
- Mount: Gasket
- Layout: 75%
- Case Connection: Screw-less Ball-catch Mechanism
-
PCB:
- Hot-swappable
- Wired (8Khz Poll-rate)**
- 1.2mm Thickness
-
Foam:
- INOAC Poron Foam
- EPDM Case Foam
- Anti-static Pad
- INOAC Poron Foam
-

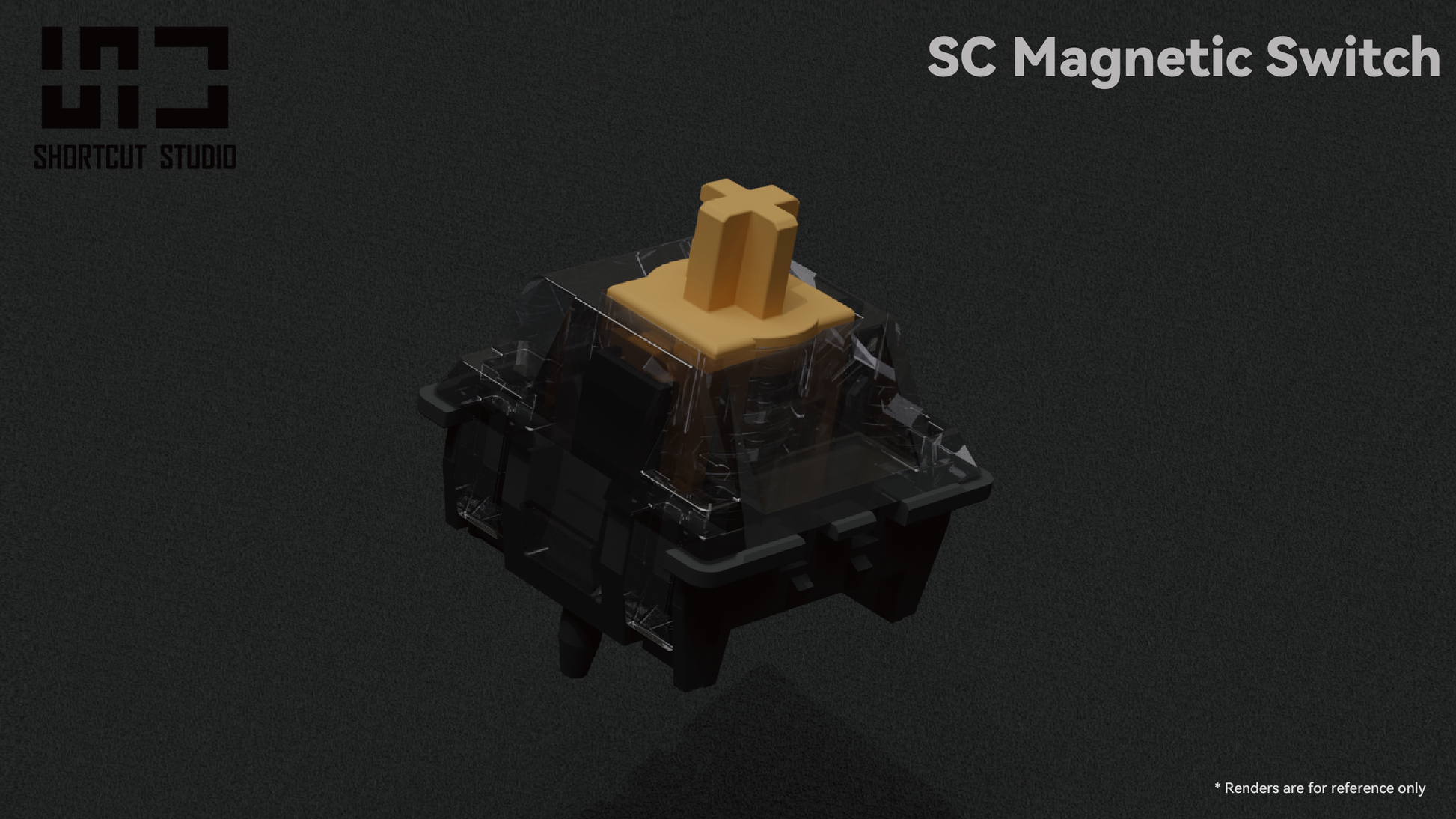

Switch: SC Magnetic Switch
- Linear
- 45g Actuation
- 55g Bottom-out
- 1.9mm Pre-travel
- 3.6mm Total Travel
- Stabilizers: Plate-mount
-
Keycaps:
- PBT Doubleshot
- Cherry Profile
-
Material:
- Weight: Brass + Glossy Trim**
- Case: Aluminum
- Case Finish: Anodized
-
Available Colors:
- Anodized Silver
- Anodized Black
- Spray-coated White
- Spray-coated Cream
- Spray-coated Pink
- Default plate**: FR4
- Typing Angle: 6.5 degrees
- Front height: 1.82cm
- Dimensions: 315 x 135mm
- Weight: 1.7kg
What's Included?
- 1 Shortcut Studio Bridge75 Keyboard
- 1 Keyboard Case
- 1 Weight
- 1 Plate
- 1 PCB (batteries and dongle if wireless)
- 1 Acoustic Package
- 1 Set of Switches
- 1 Keycap Set
- 1 USB Cable
- 1 Switch and Keycap Puller
Timeline:
- Pre-order start date: July 8th, 2024
- Pre-order end date: When allocated inventory sells out
- Estimated shipping date: Q3 2024
Pre-Order Disclaimer
Pre-Order Disclaimer
Please note, this is a pre-order. This means the items are NOT immediately available. They are currently in production and estimated to finish production according to the above timelines.
- Combining in-stock items in this order means that your in-stock items will NOT ship until everything becomes available.
- With any pre-order, there can be unforeseen delays and set-backs. The estimated shipment date is only an estimate.
- There are no refunds, or cancellations on these orders.
Pre-Order Updates
Pre-Order Updates
We want to make sure you stay updated with the projects you join! We'll be sending monthly update emails to the email you provide at checkout. These updates can also be found on our website here.
Additionally, more frequent and often smaller updates can be found on Discord.
Should you have any questions or concerns, please don't hesitate to contact us! You can reach us at hello@dangkeebs.com.
