[Pre-Order] Shortcut Studio Bridge75 Keyboard - Pre-built Kit [Batch 2]

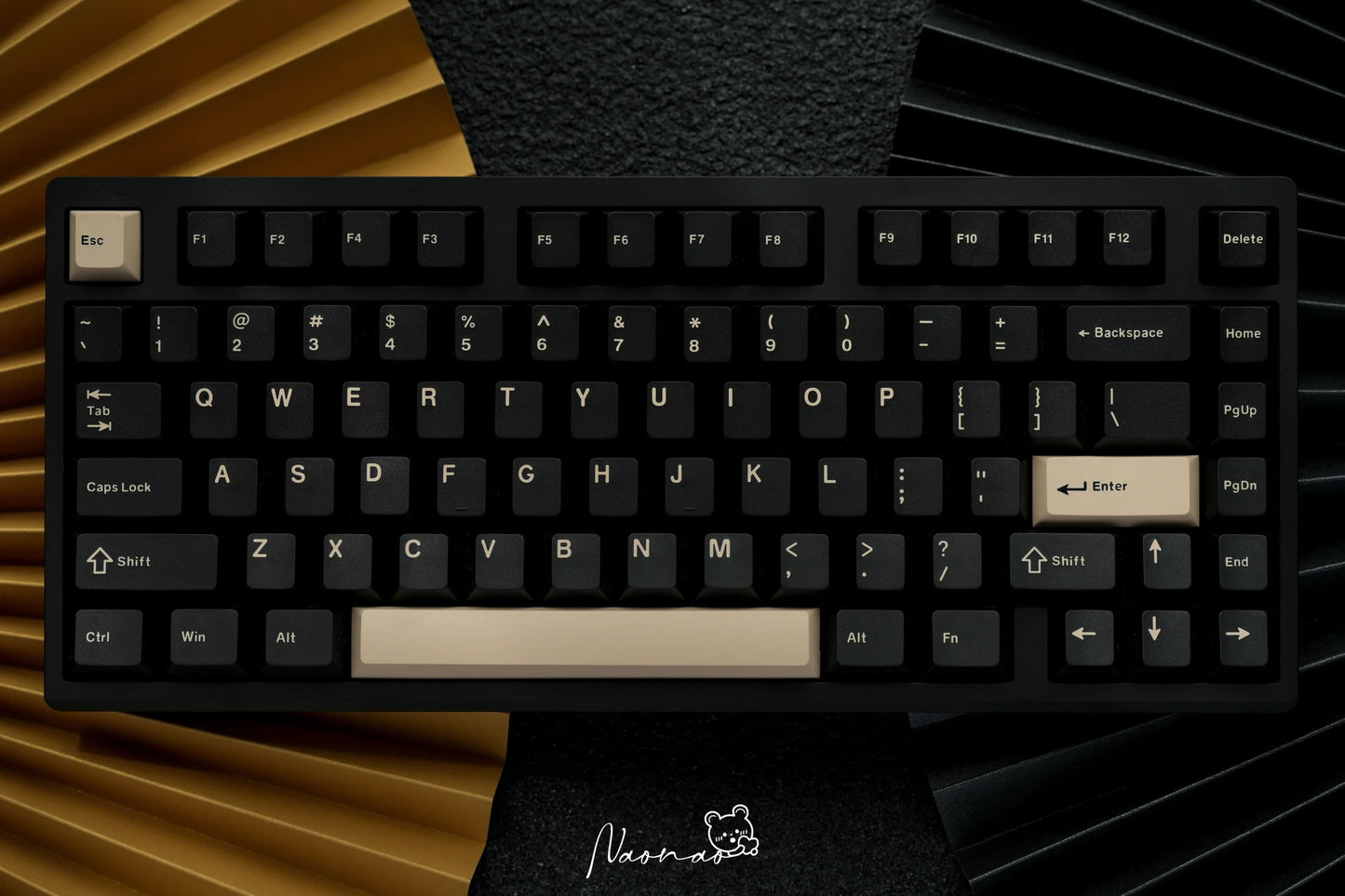

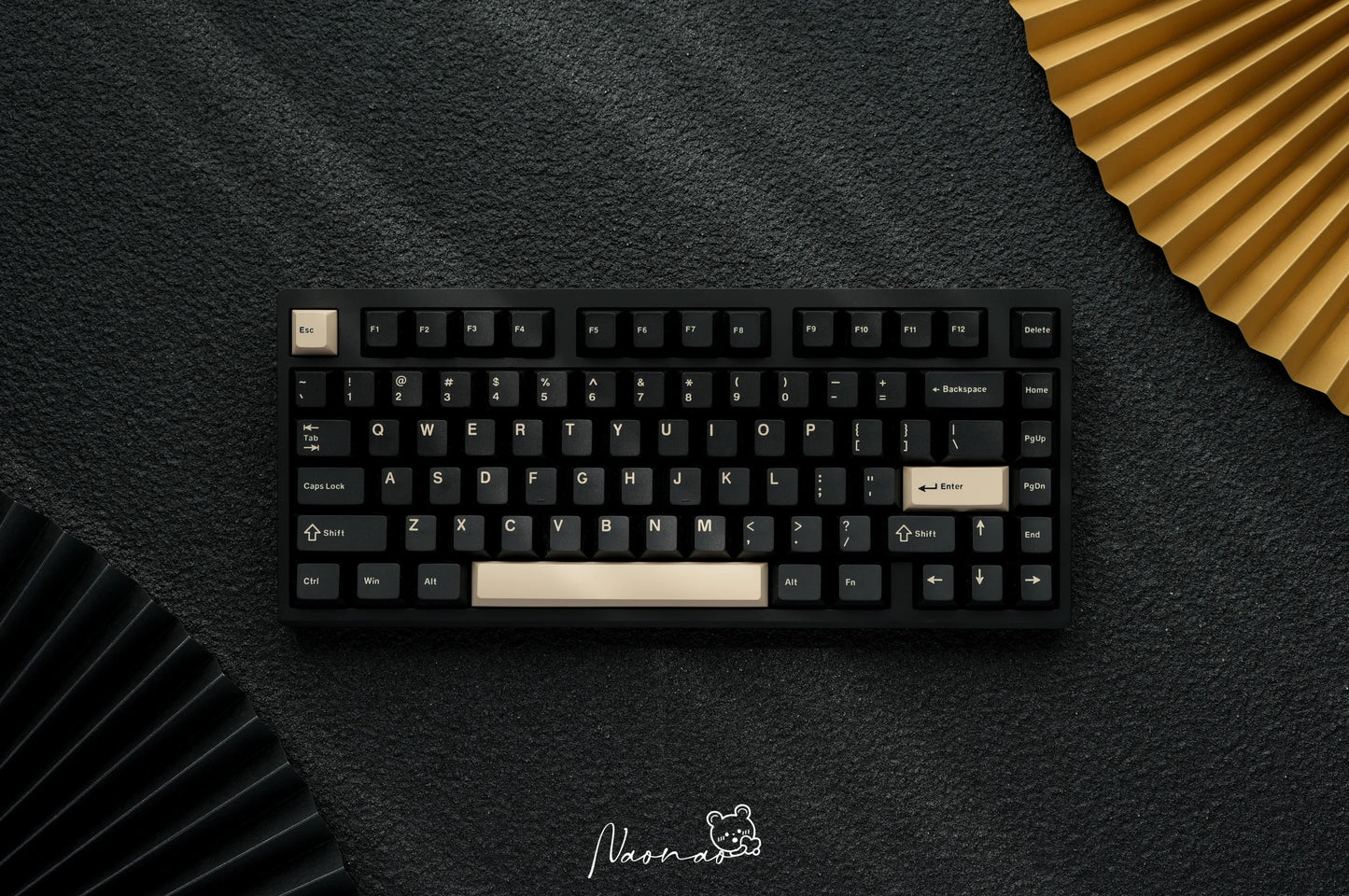

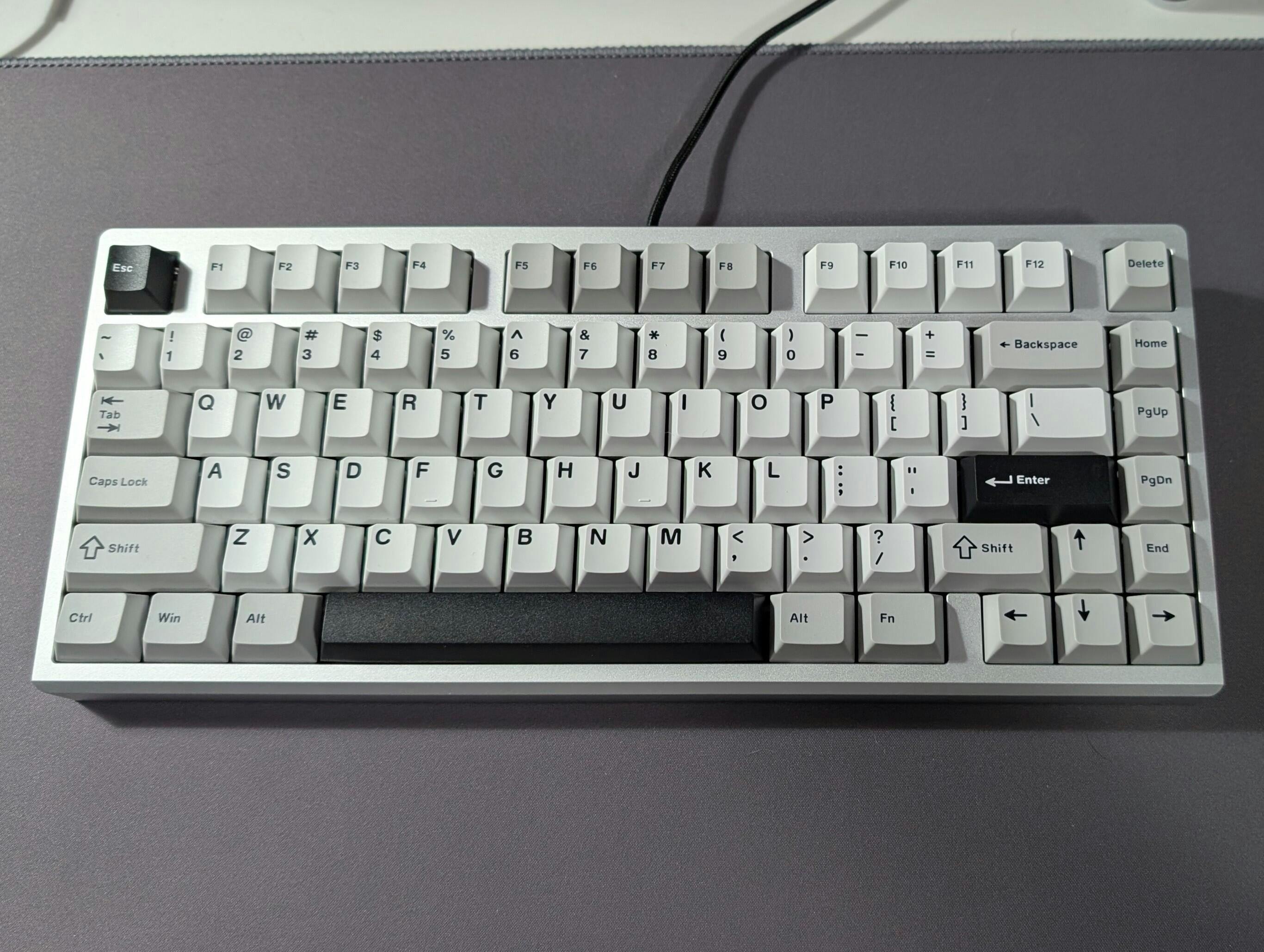

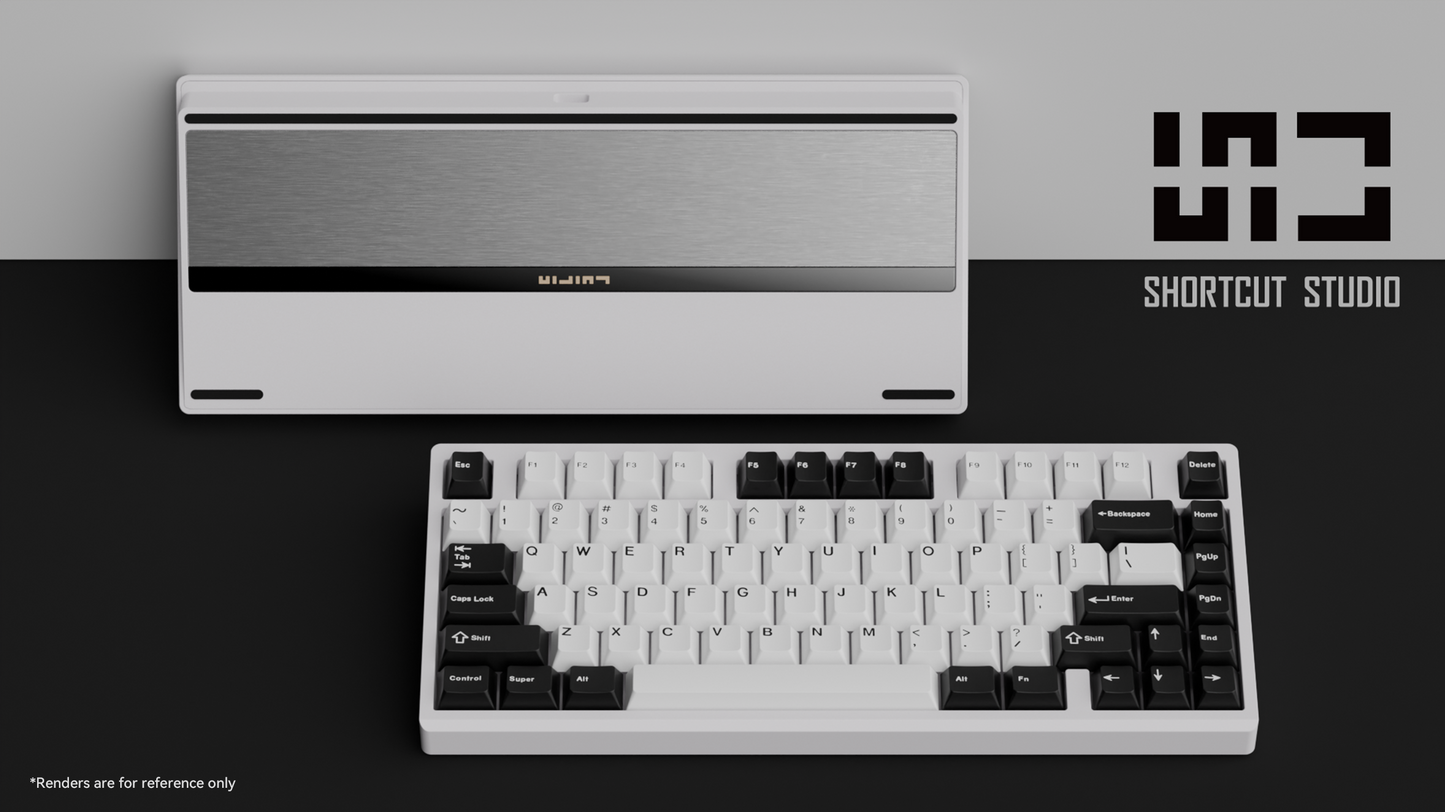

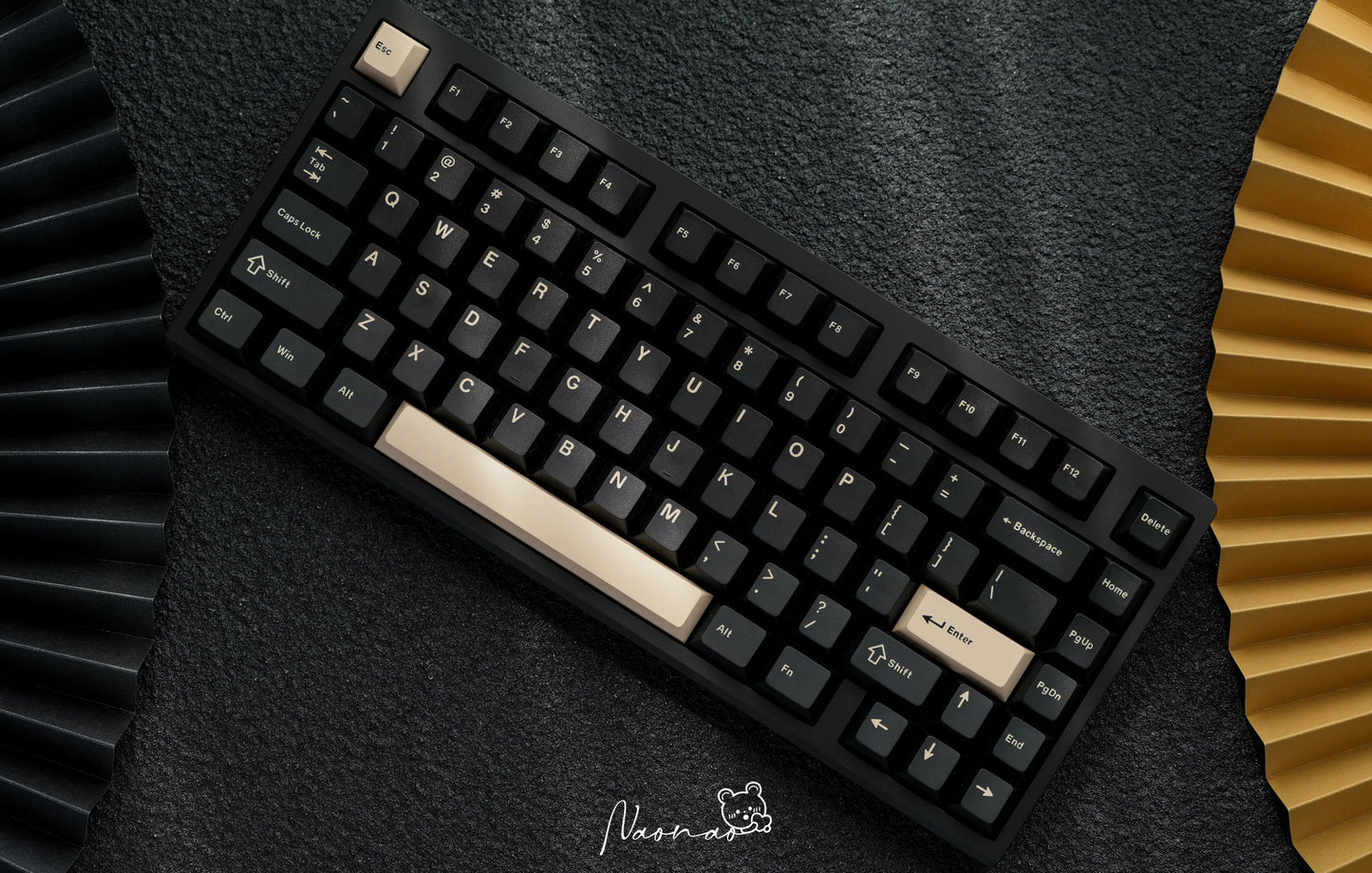

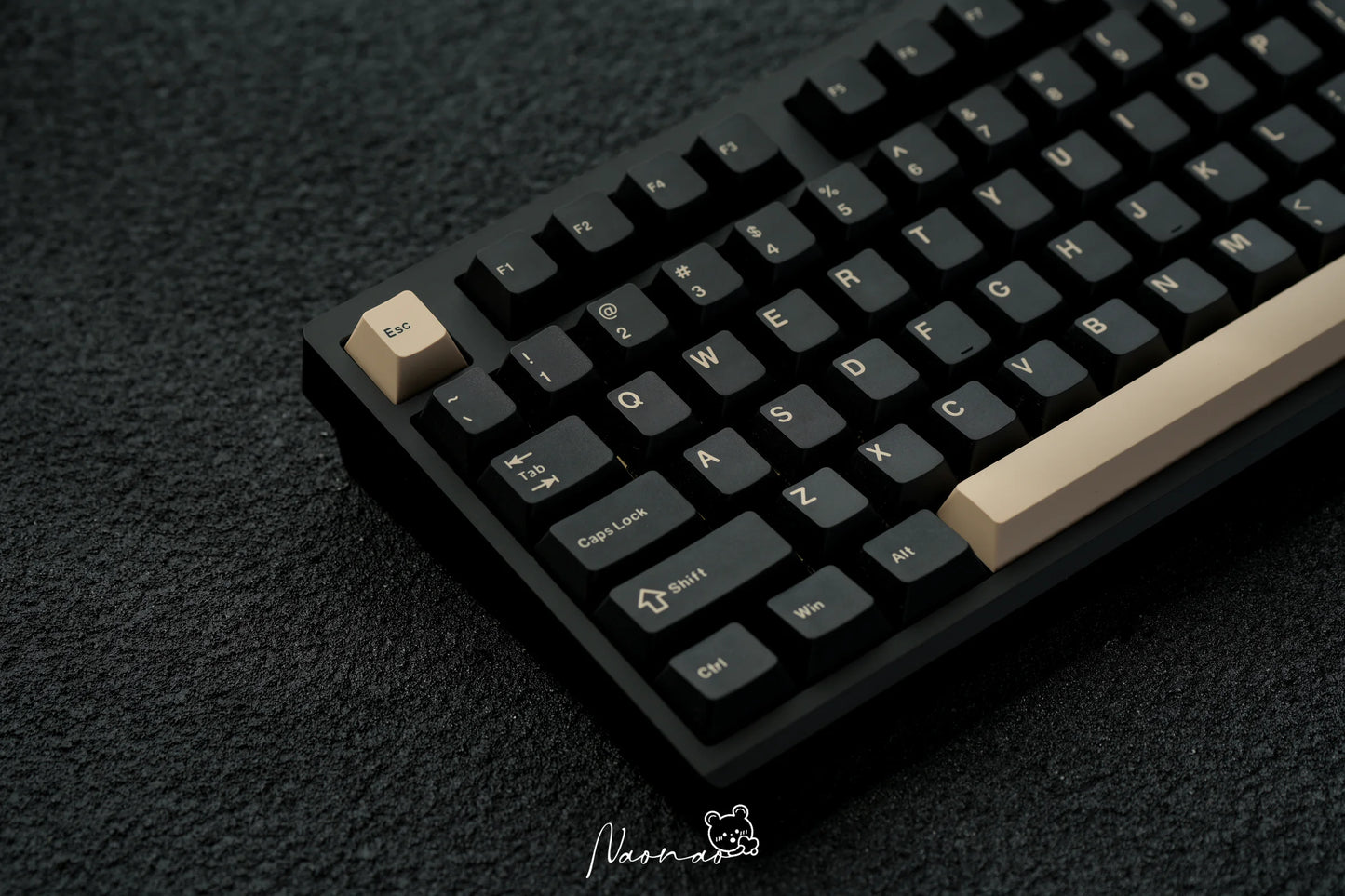

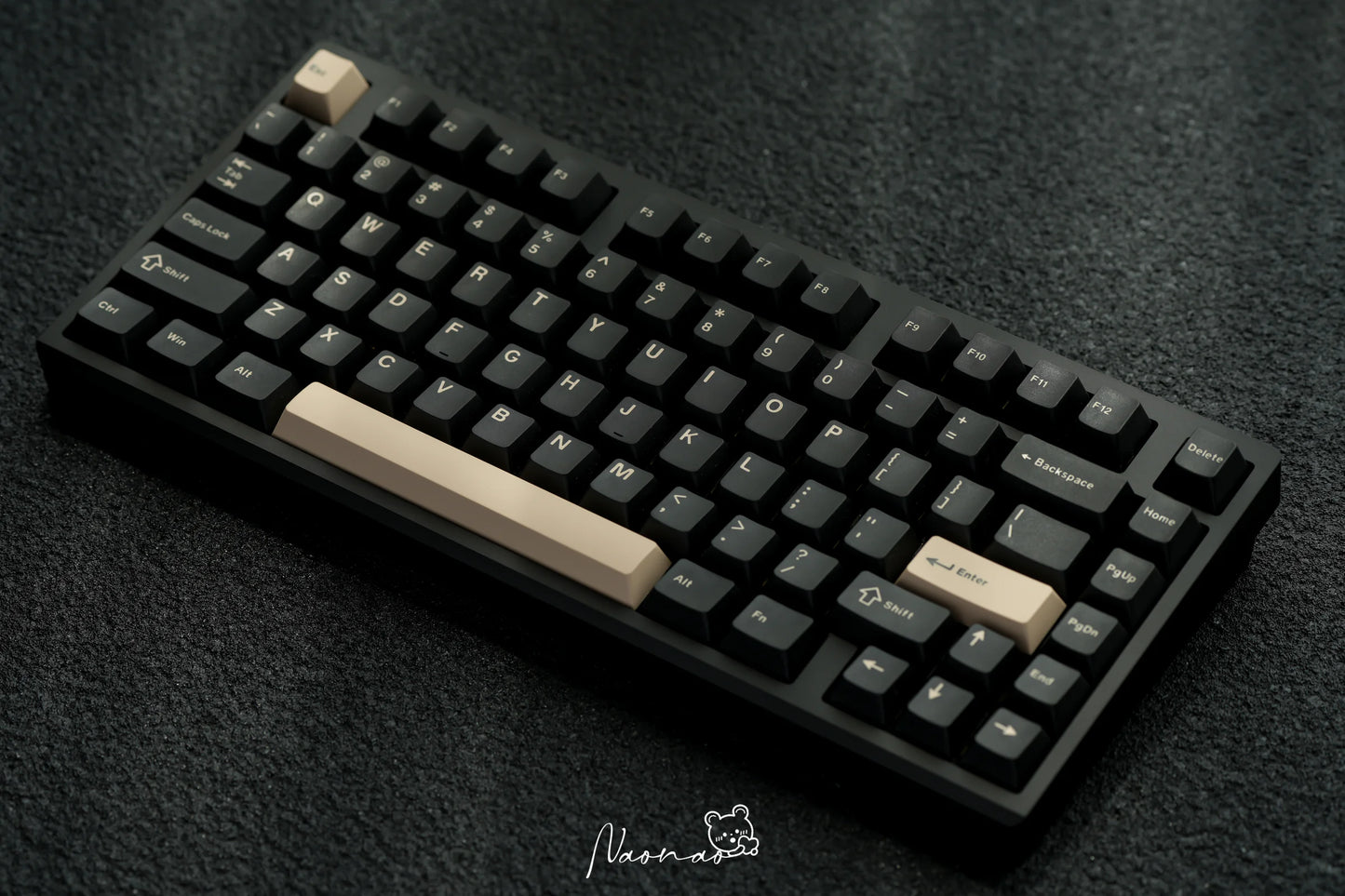

The Shortcut Studio Bridge75 Keyboard is a sleek aluminum mechanical keyboard that's ready to use right out of the box.

Expertly CNC-machined for precision and durability, it features an intuitive ball-catch system for easy assembly and customization. Enjoy a premium typing experience with its superior design and acoustics, all at an amazing starting price.

Minimalism in Design:

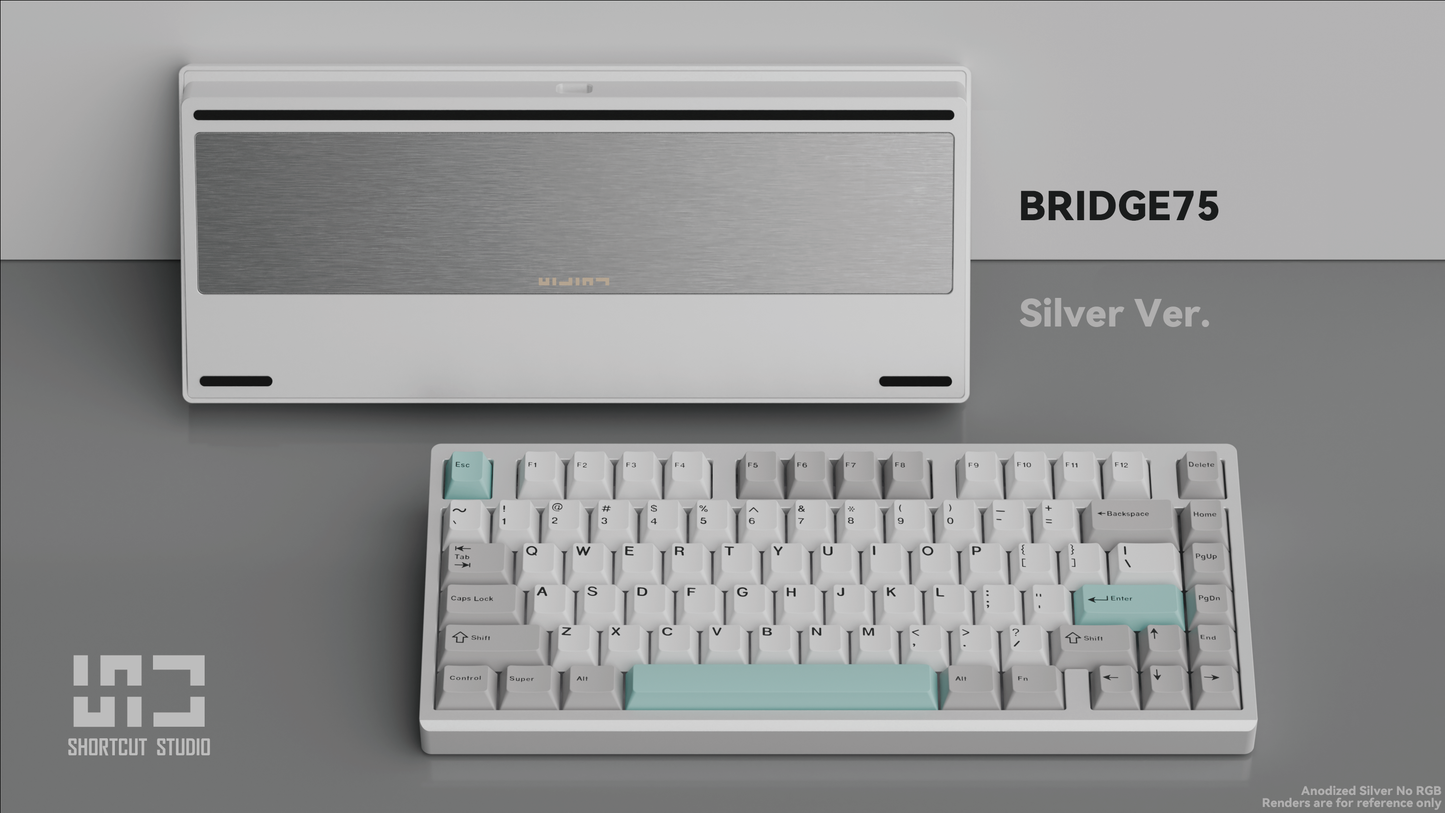

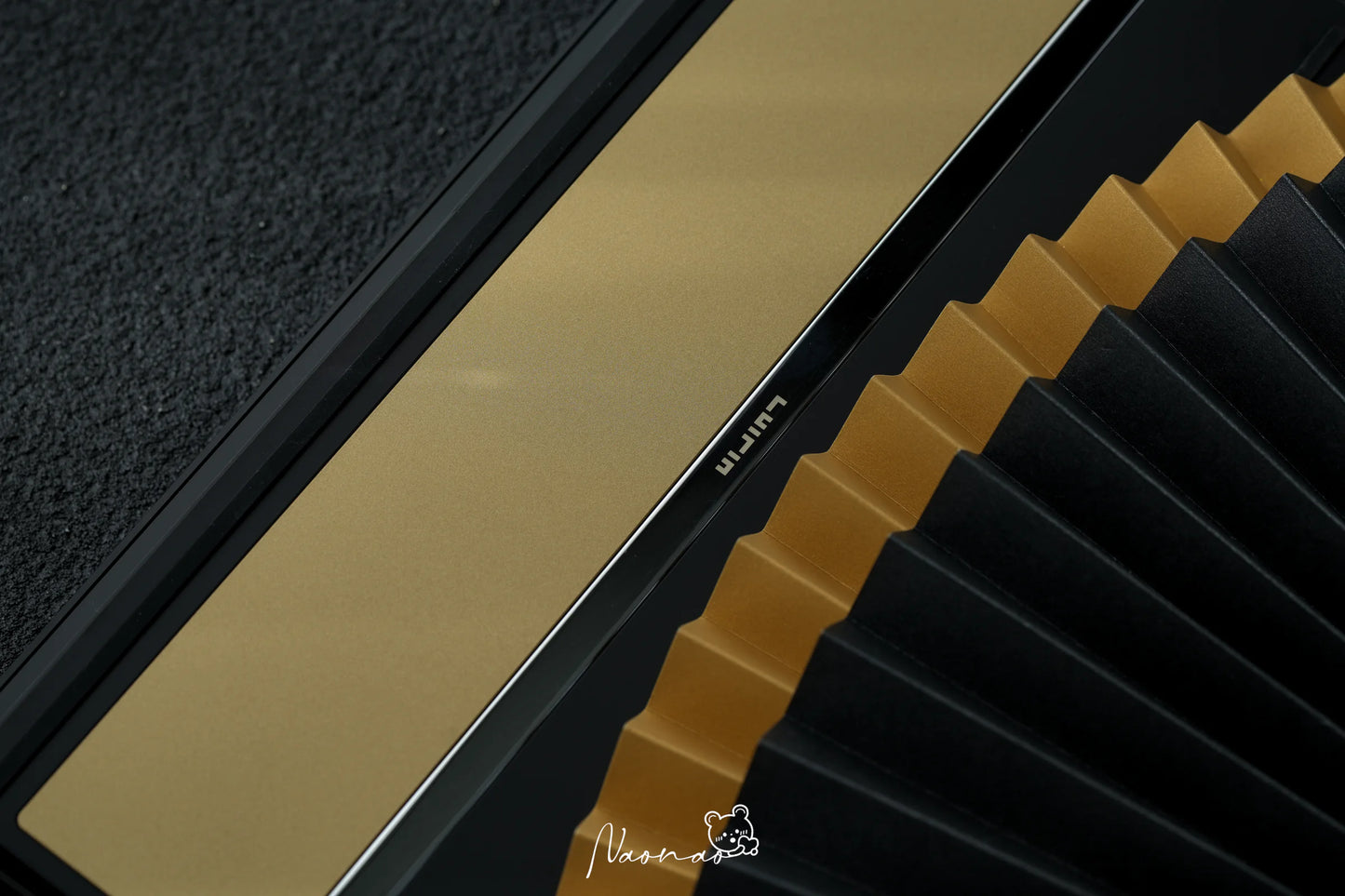

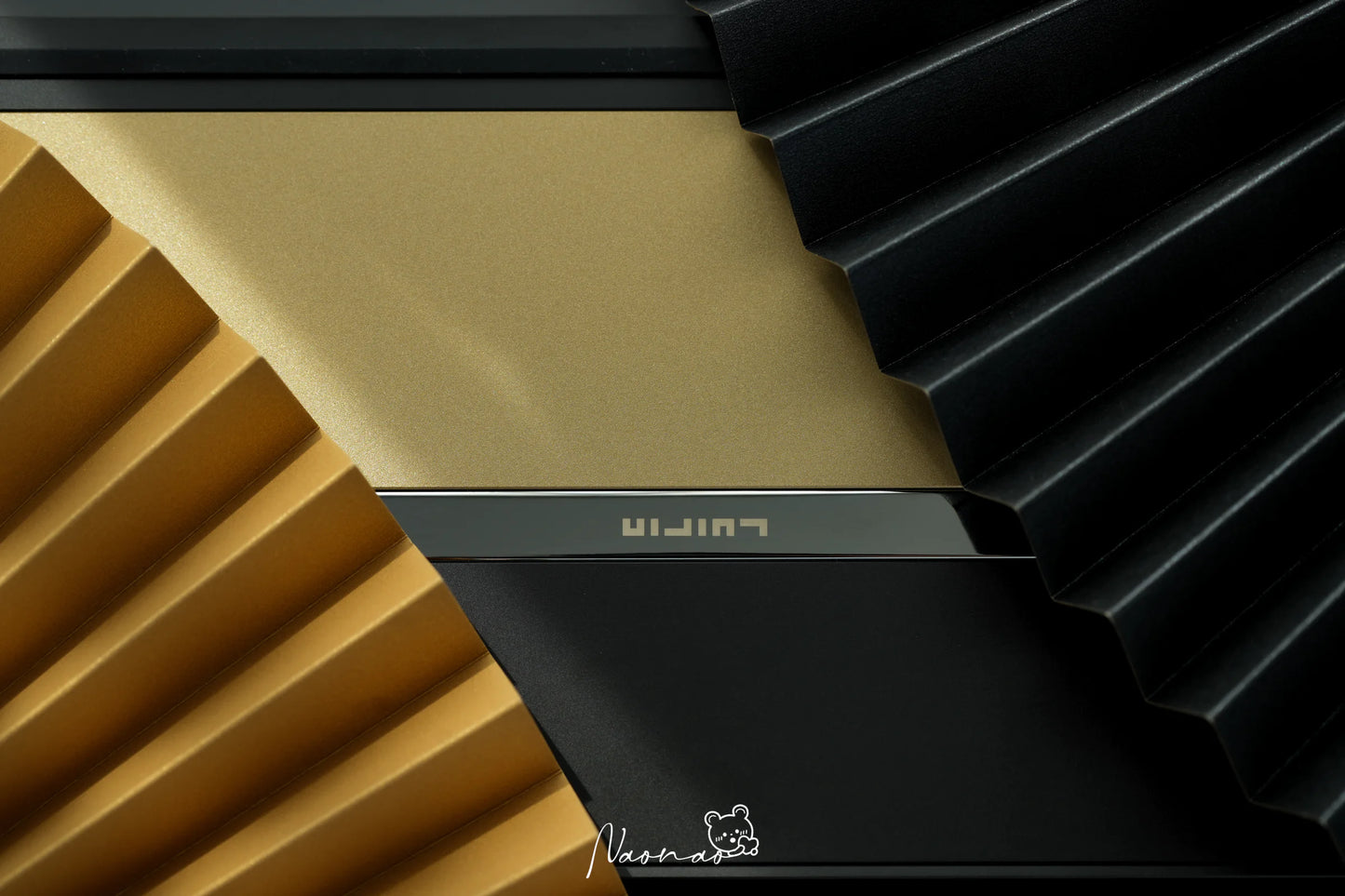

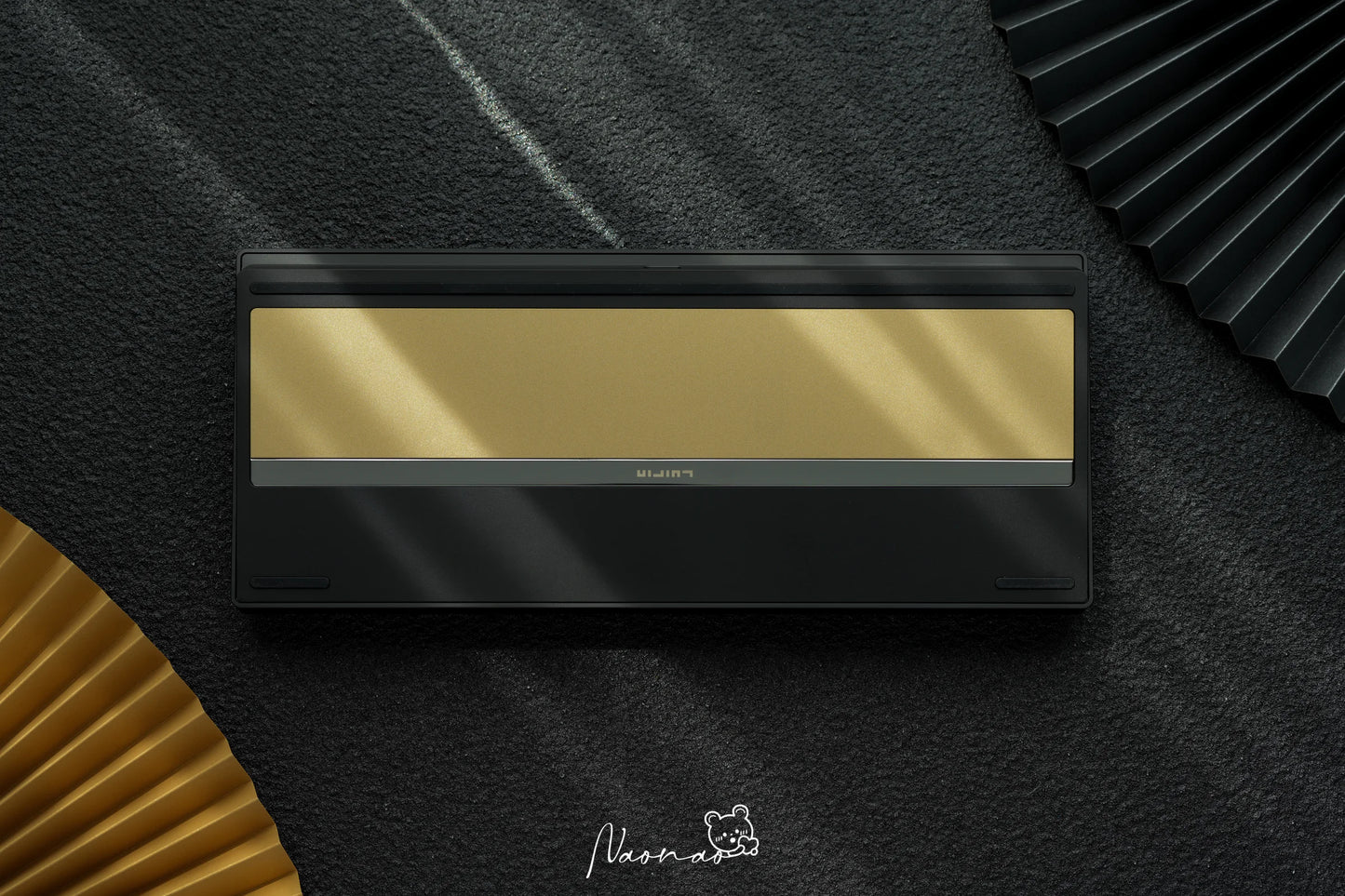

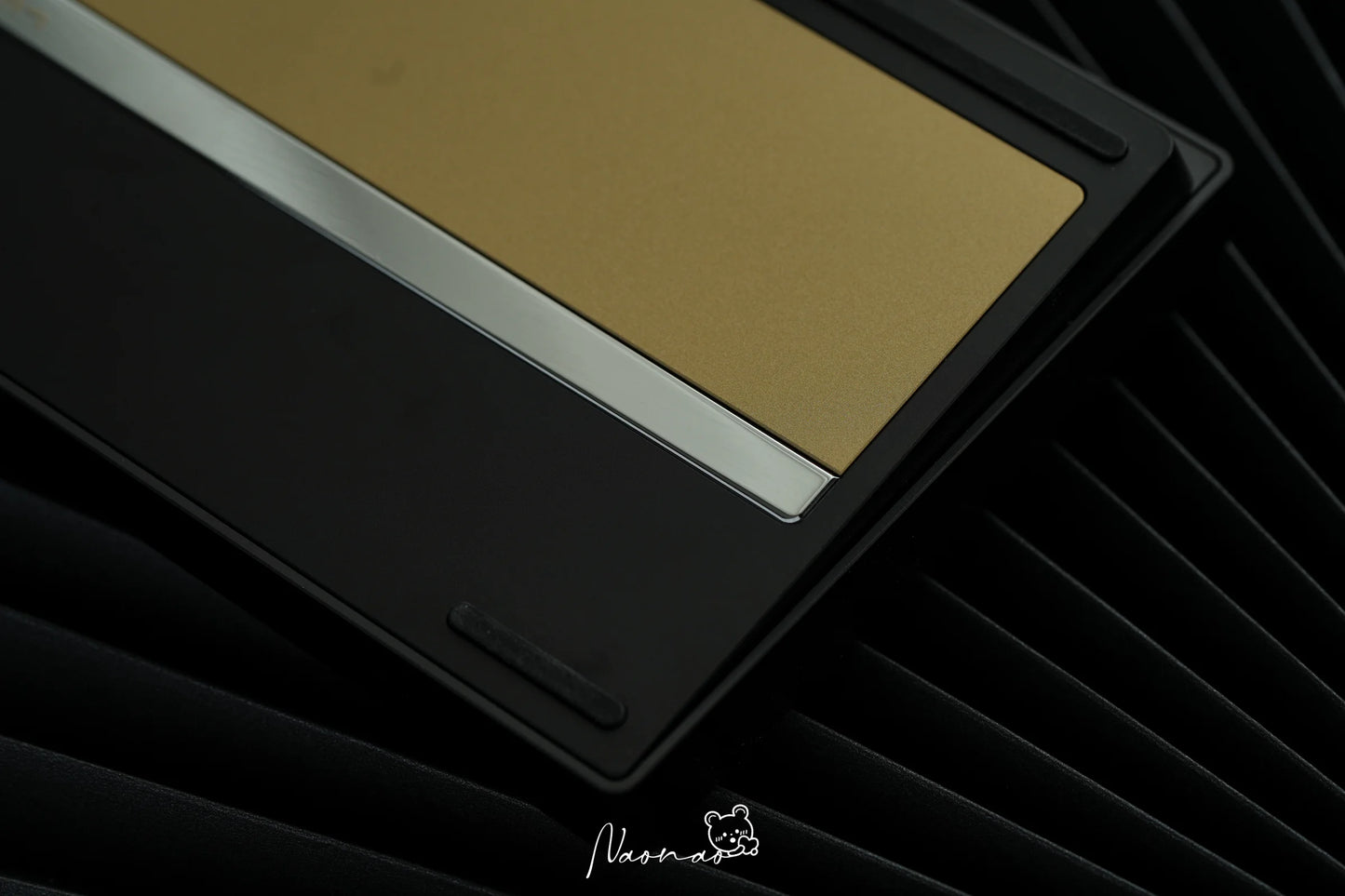

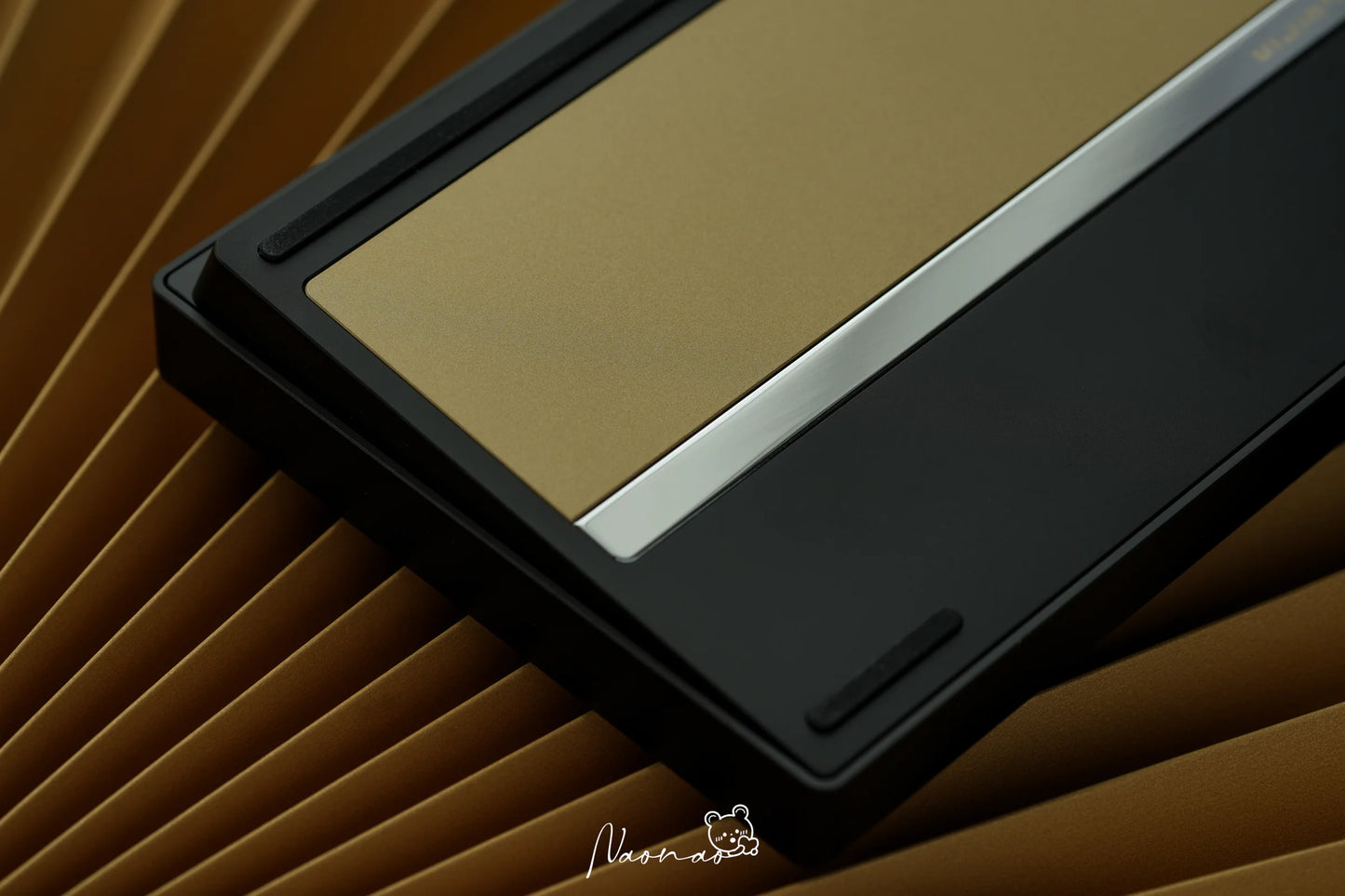

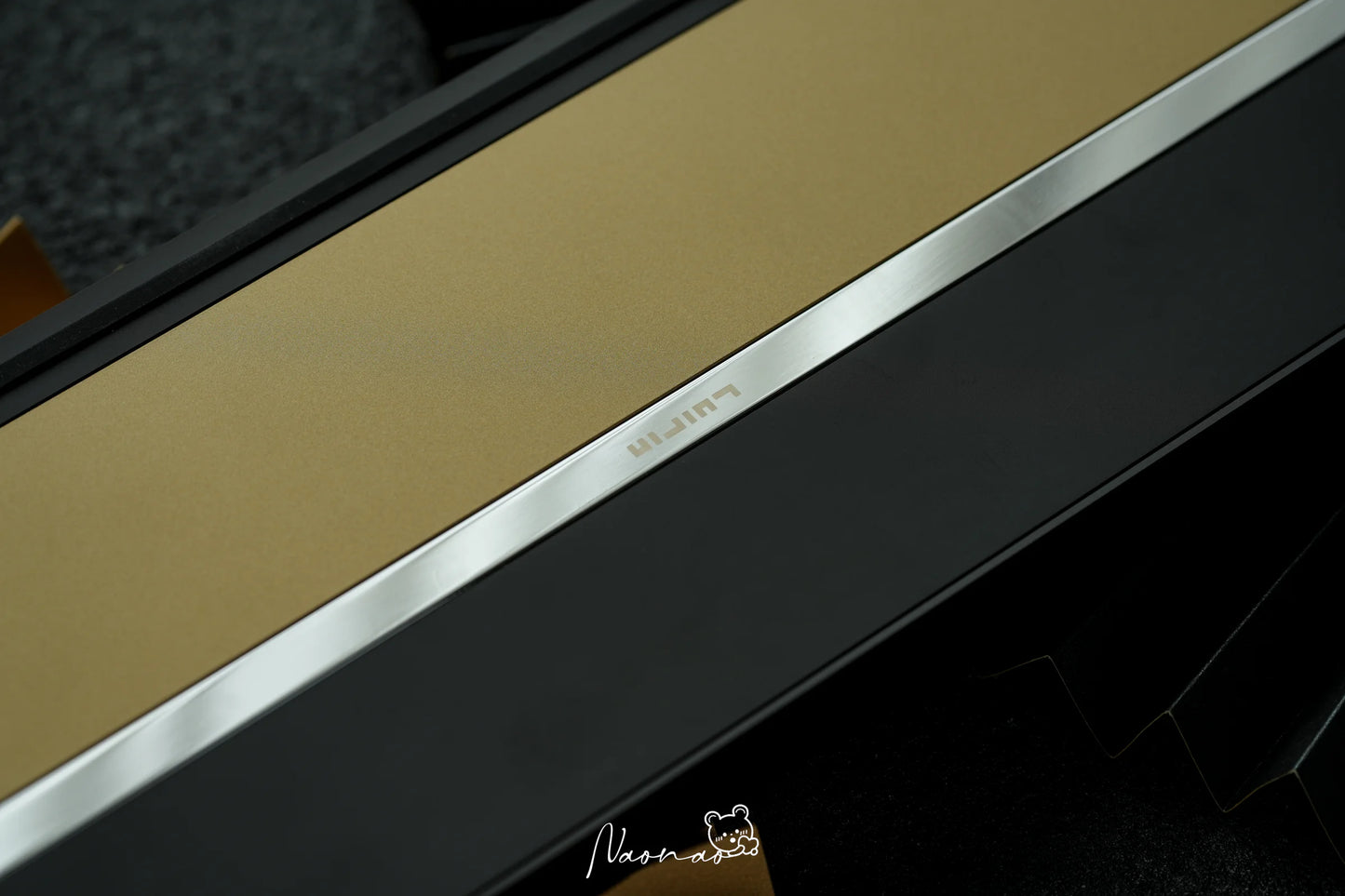

The Bridge75 keyboard embodies the essence of minimalism without compromising on functionality. Its sleek profile features a low front height of 1.82cm and a 6.5° typing angle, which are meticulously designed to provide a comfortable typing experience, whether you prefer using a wrist rest or not. The brushed stainless steel weight at the back of the keyboard not only enhances the visual appeal but also elevates the acoustic performance, delivering a typing experience that is both pleasing to the eye and the ear.

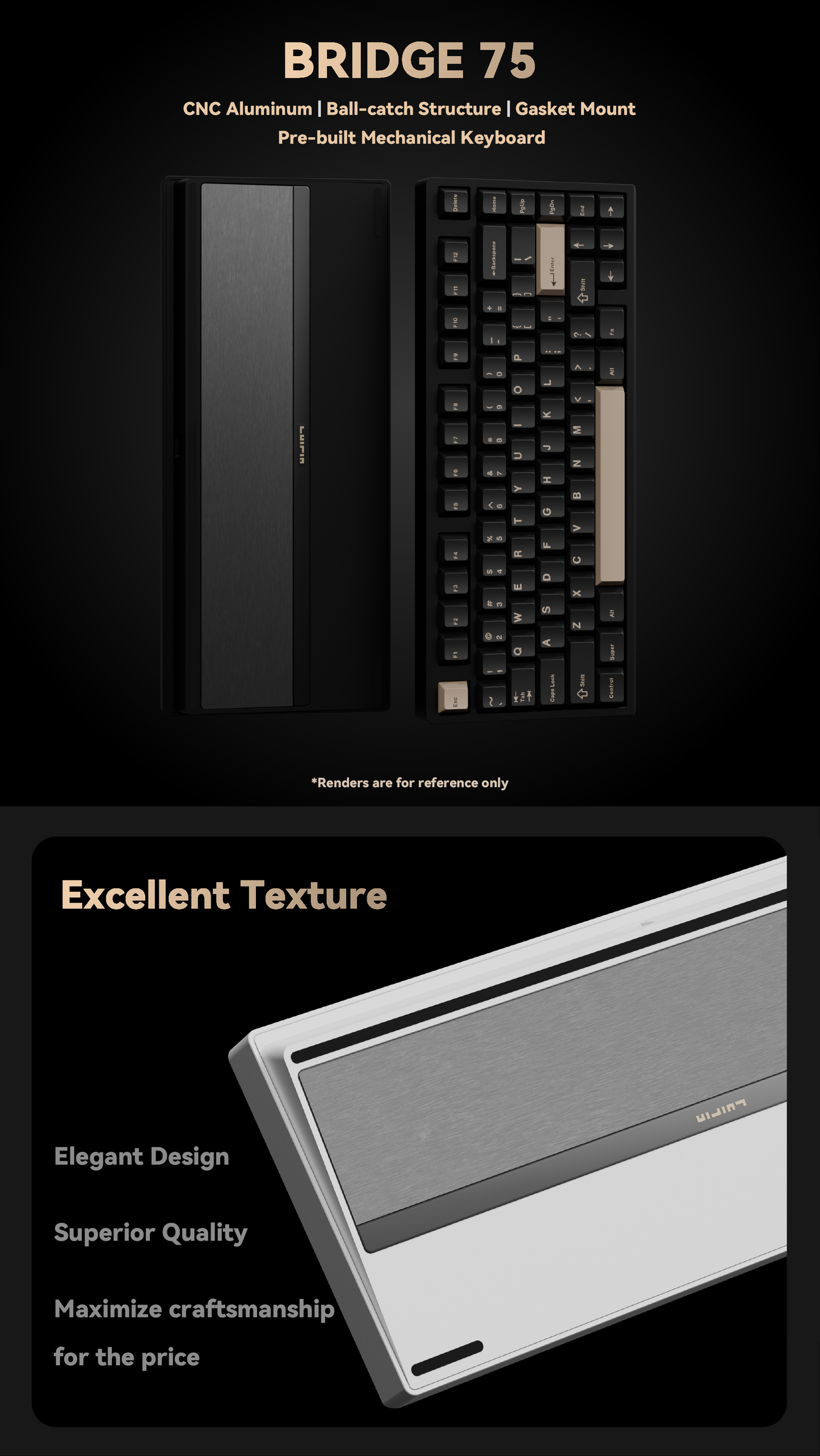

Outstanding Texture:

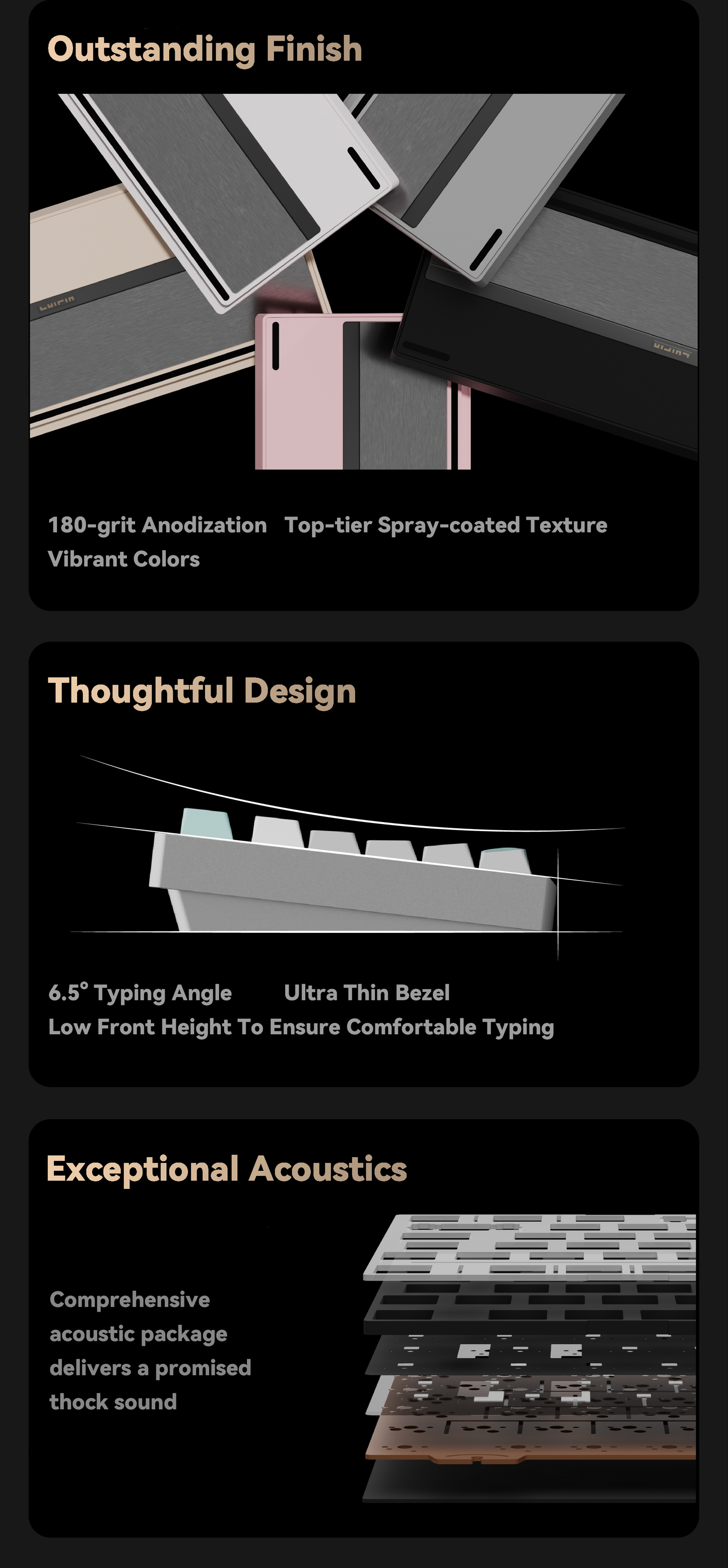

Shortcut Studio is committed to providing the finest surface finishing among products in this price range. The anodized cases of the Bridge75 keyboard undergo a meticulous 180-grit sandblasting process prior to anodization. This treatment ensures a remarkably smooth and refined surface texture that is both pleasing to the touch and to the eye. The spray-coated cases are also produced by a top manufacturer utilizing high-quality toners to achieve a vibrant and standout finish.

Easy Disassembly:

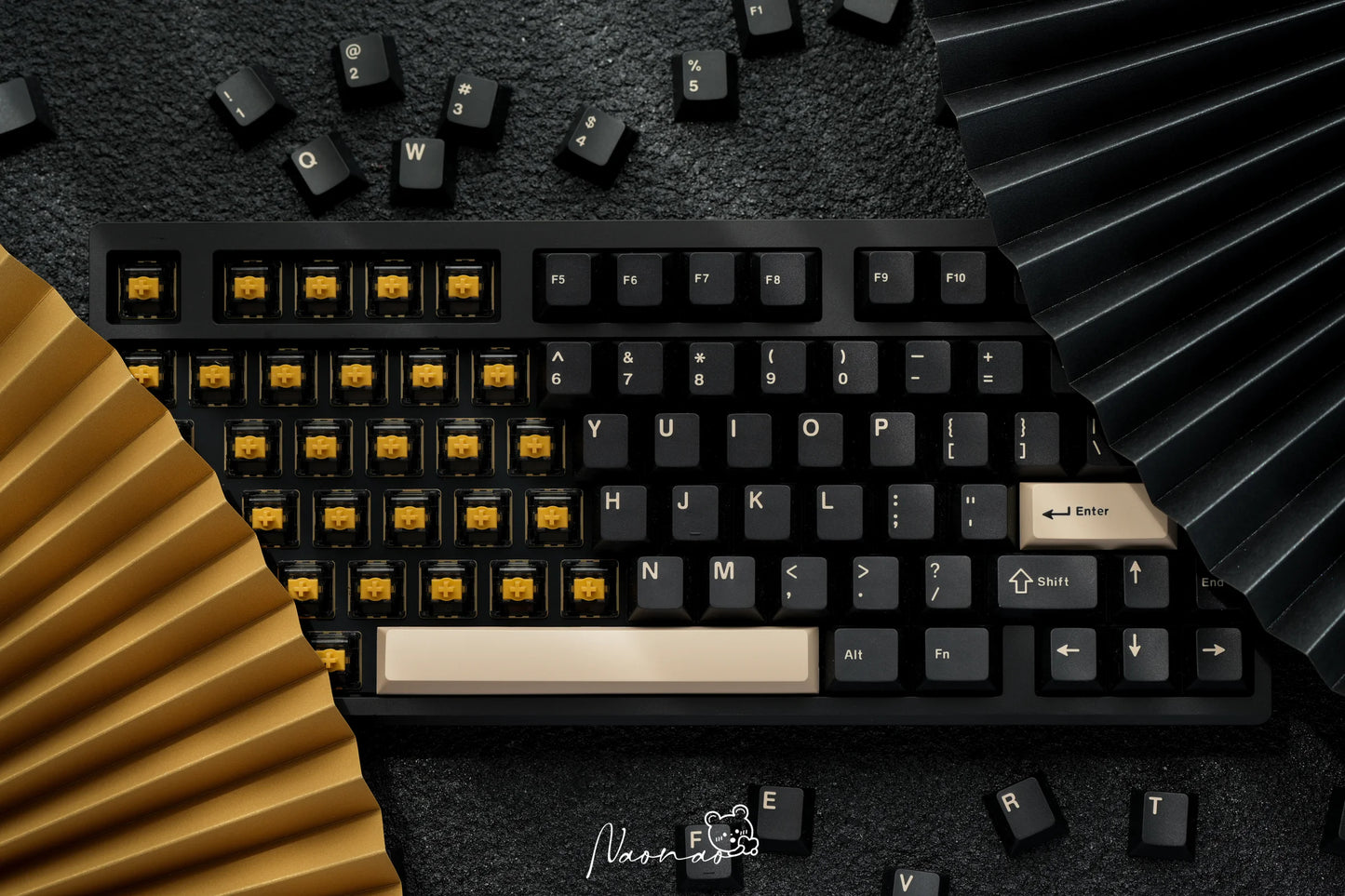

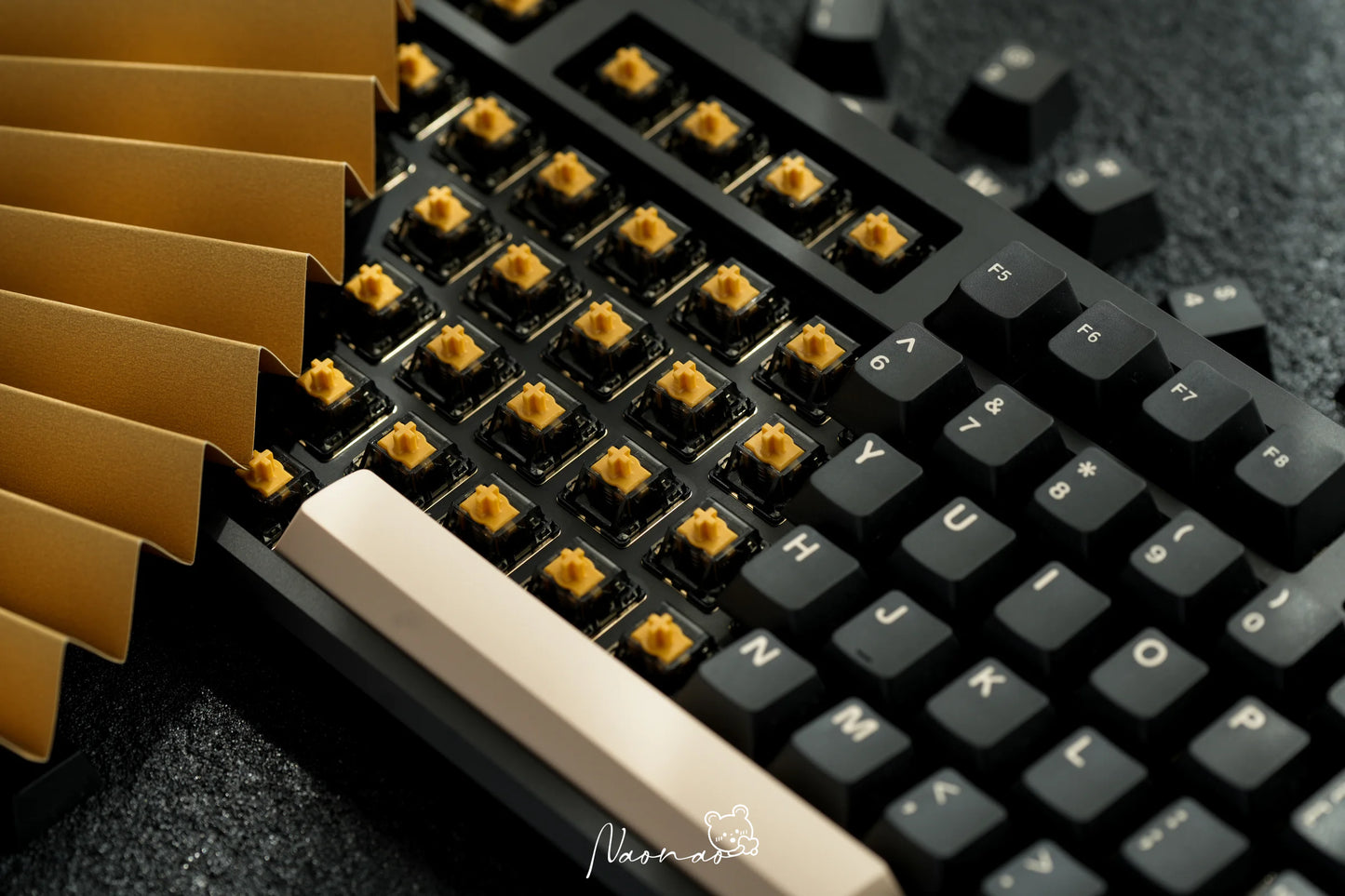

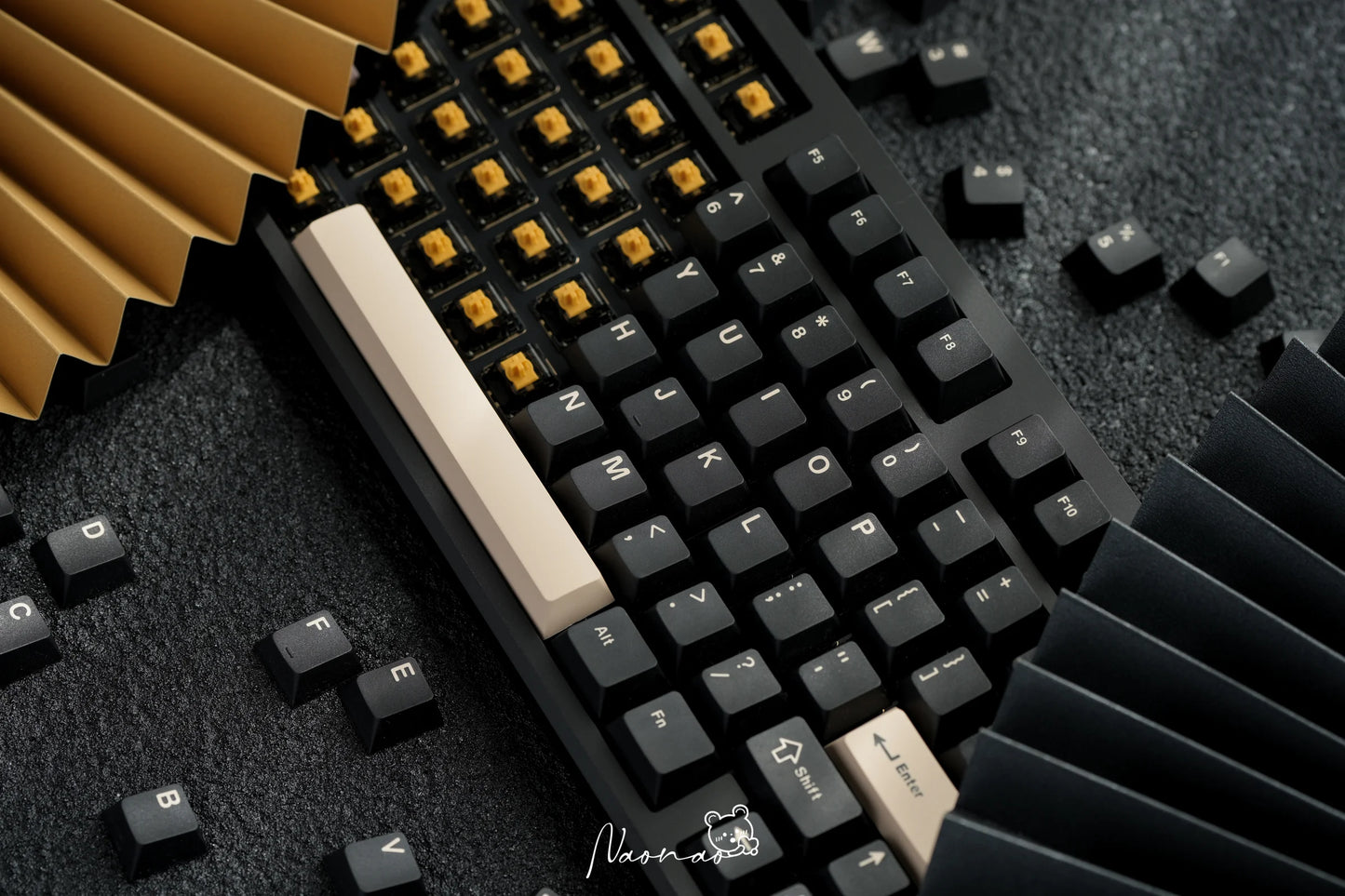

Although the Bridge75 keyboard comes as a pre-assembled kit, we've designed it with customization in mind. Featuring a premium ball-catch mechanism, typically found in high-end mechanical keyboards, the Bridge 75 opens effortlessly without the need for tools. Coupled with its hot-swappable PCB, you can conveniently swap out switches and modify the foams to tailor the typing feel and sound profile to your personal preferences.

Exceptional Acoustics:

The Bridge75 keyboard boasts an acoustic package that rivals, if not surpasses, those of other same-level mechanical keyboards. This superior sound performance is achieved through a meticulous combination of materials: INOAC Poron foam, an IPXE sheet, a PET sheet, and EPDM case foam. Regardless of the switch selected, the keyboard is designed to deliver exceptional acoustics.

Wireless Connectivity and VIA Compatible:

The Bridge75 keyboard provides three modes of connectivity, wired, Bluetooth, and 2.4G, to ensure maximum flexibility in your use. For extended battery life, choose the Plus version, which offers the option of batteries up to 8000mAh. Furthermore, the keyboard's compatibility with VIA software gives you the power to tailor keymaps to meet your unique needs.

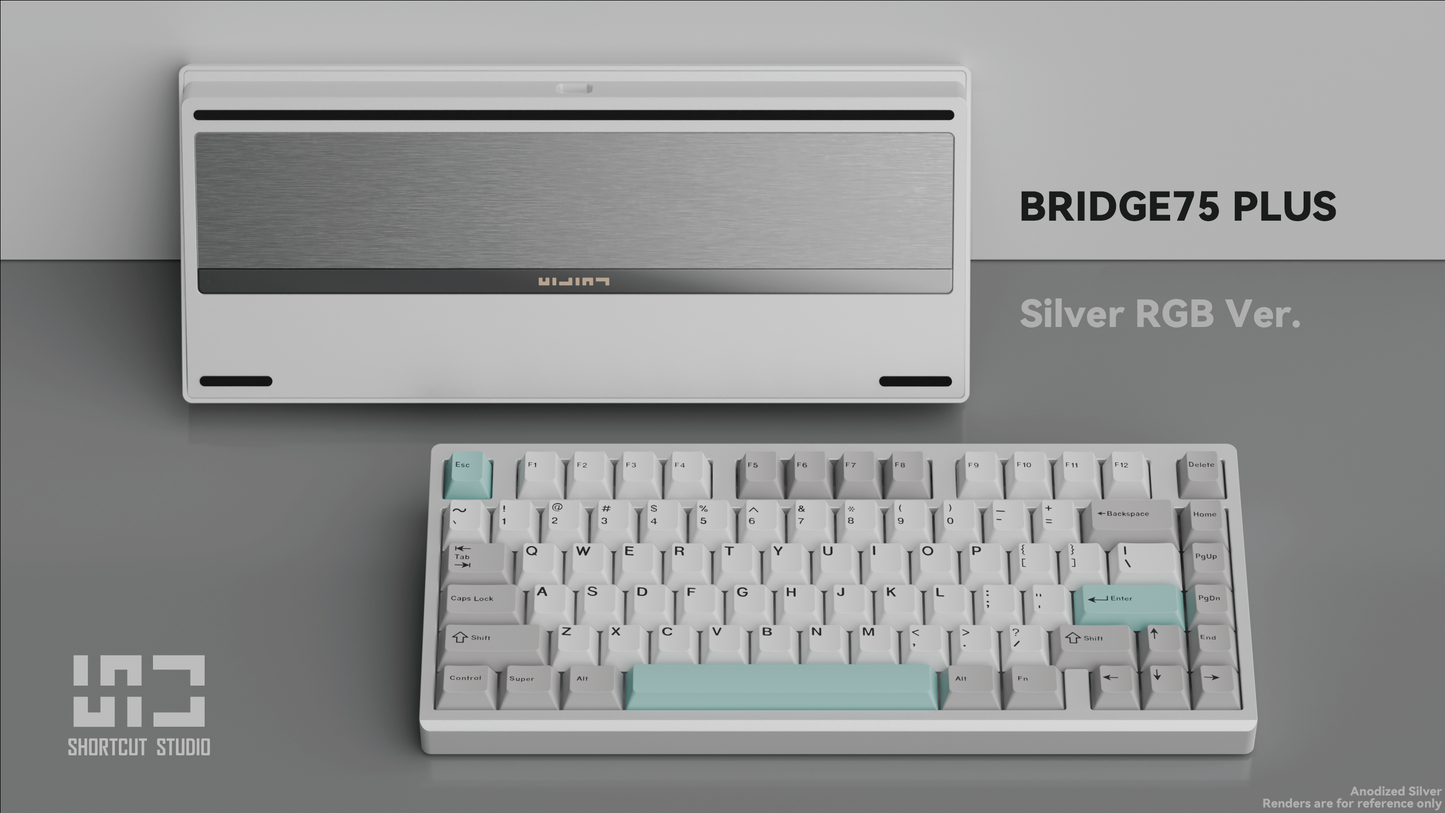

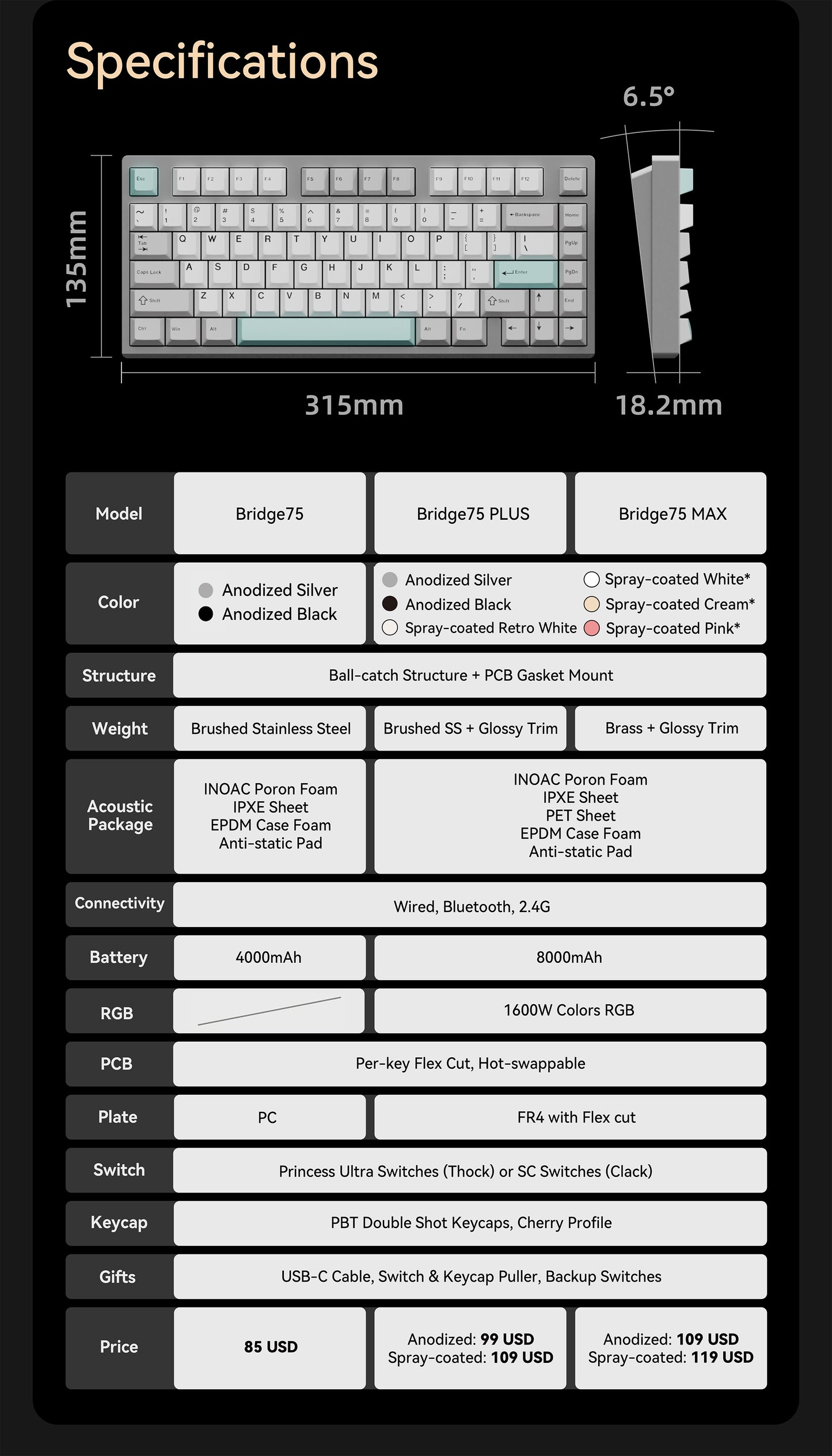

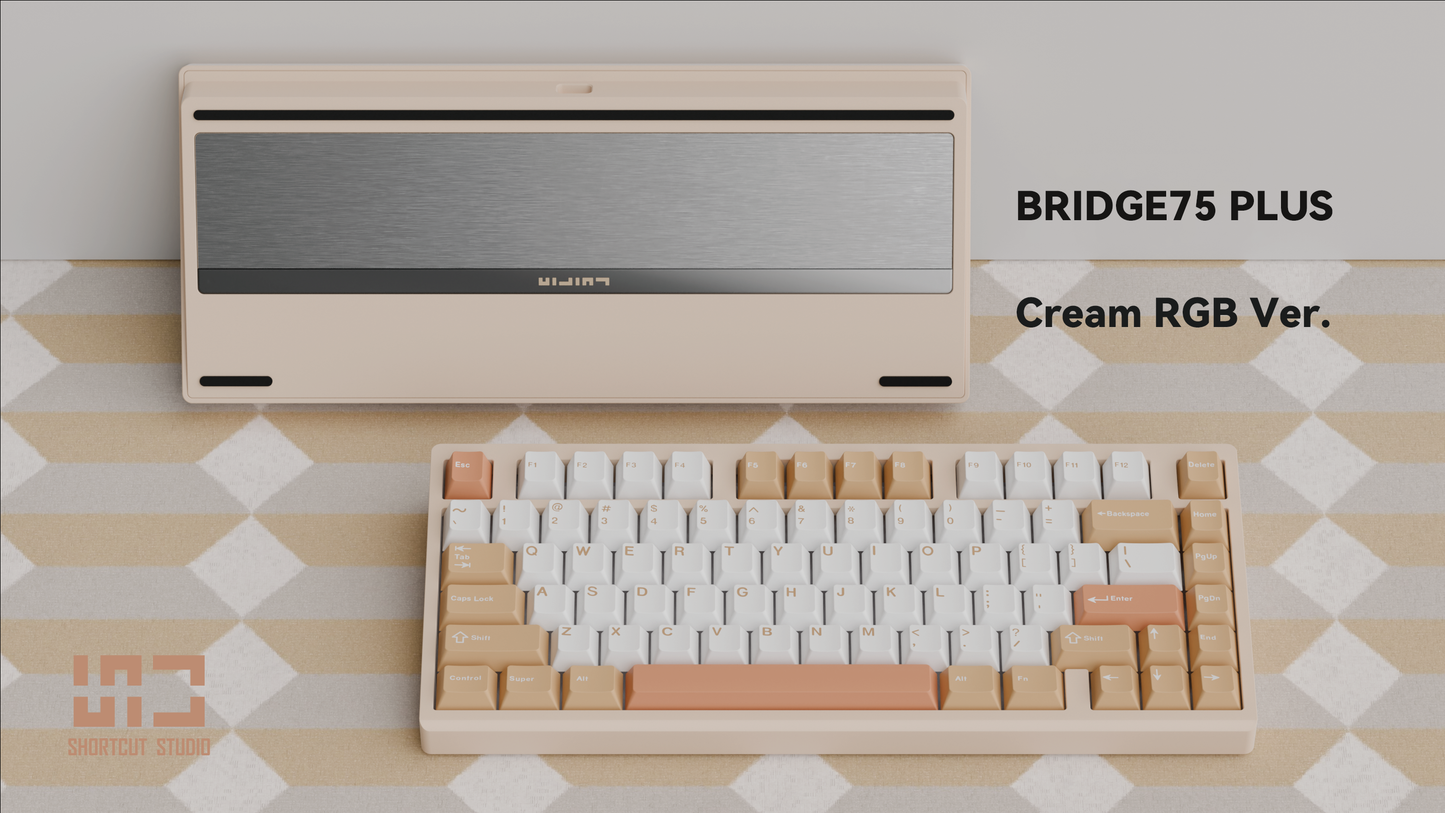

Bridge75 PLUS Specifications:

• Mount: Gasket
• Layout: 75%
• Case Connection: Screw-less Ball-catch Mechanism
• PCB:
  • Hot-swappable
  • Wired / Bluetooth / 2.4G
  • Per-key Flex-cut
  • 1.2mm Thickness
  • 1600W RGB**
• Battery**: 8000mAh
• Foam:
  • INOAC Poron Foam
  • IPXE Sheet
  • EPDM Case Foam
  • Anti-static Pad
• Stabilizers: Plate-mount
• Keycaps:
  • PBT Doubleshot
  • Cherry Profile
• Material:
  • Weight: Brushed Stainless Steel + Glossy Trim**
  • Case: Aluminum
• Case Finish: Anodized

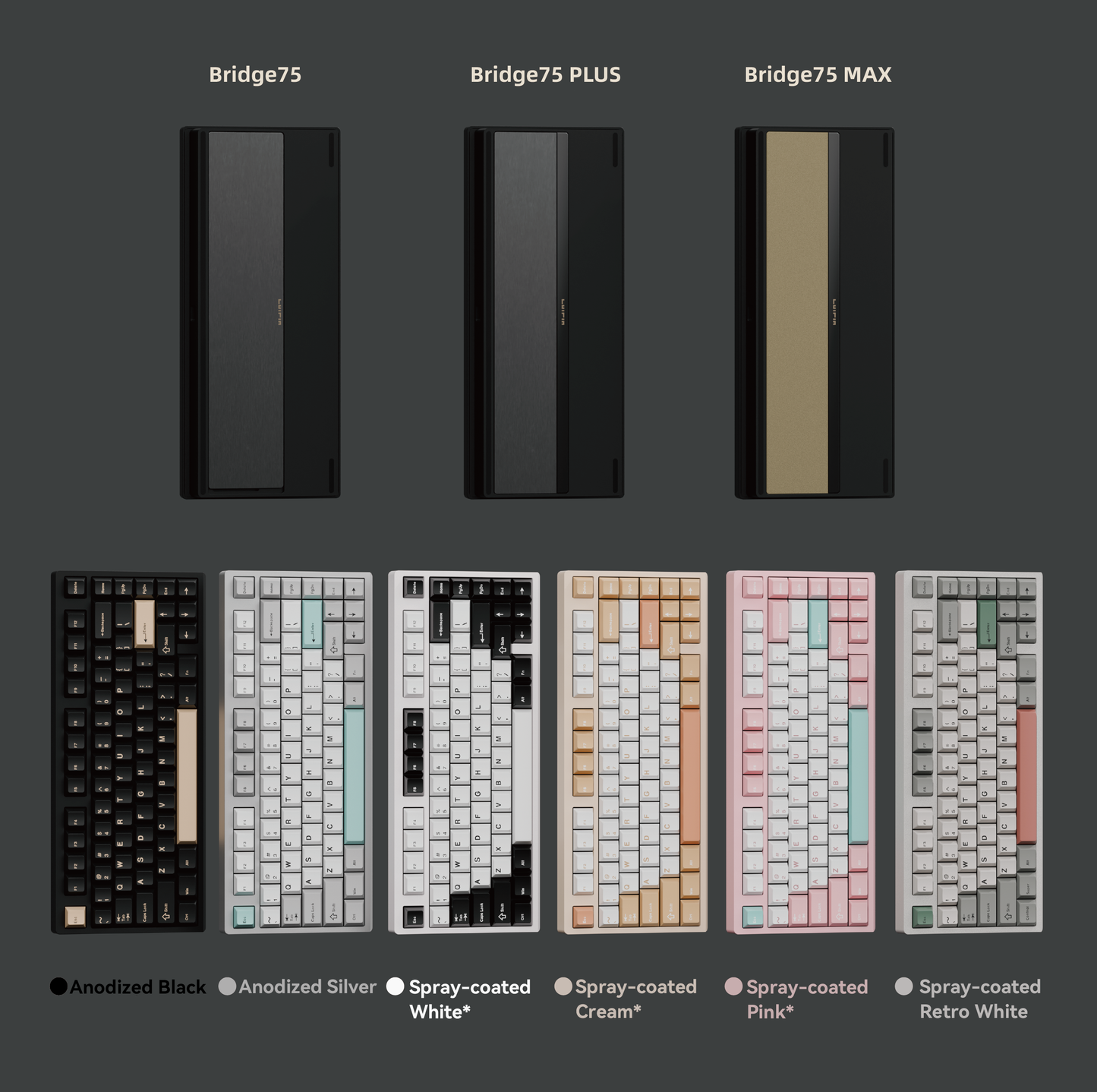

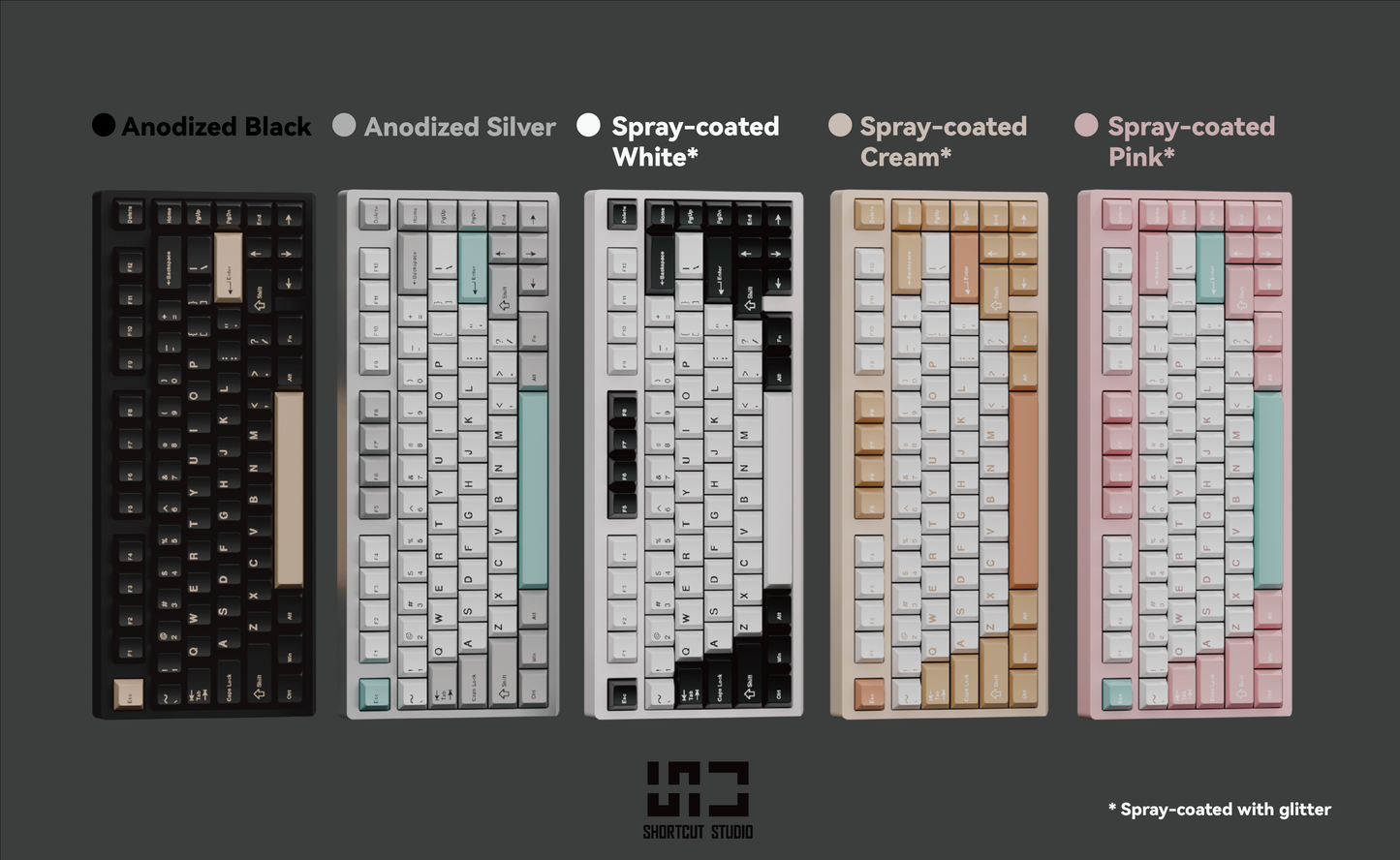

• Available Colors:
  • Anodized Silver

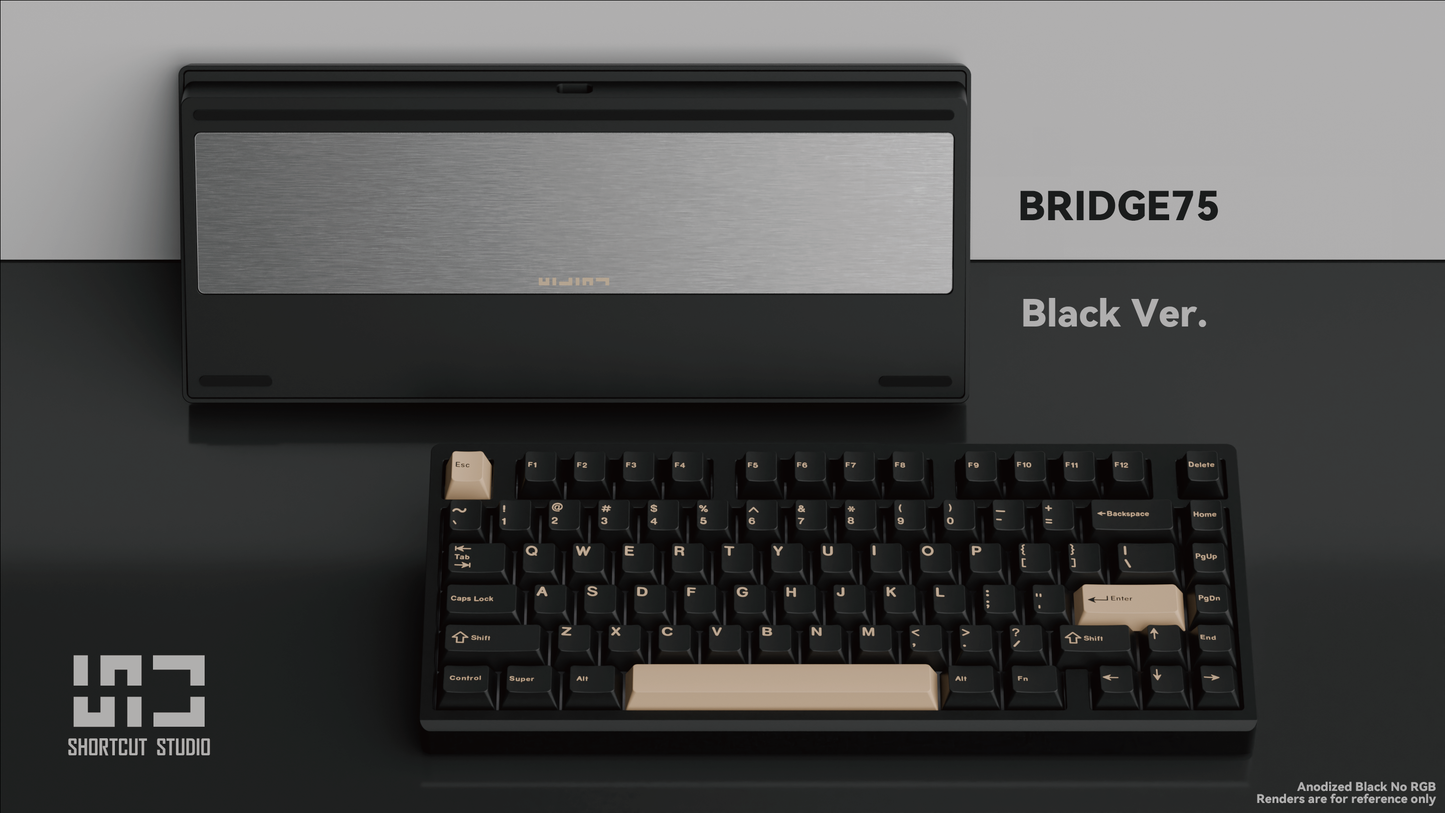

  • Anodized Black
  • Spray-coated White

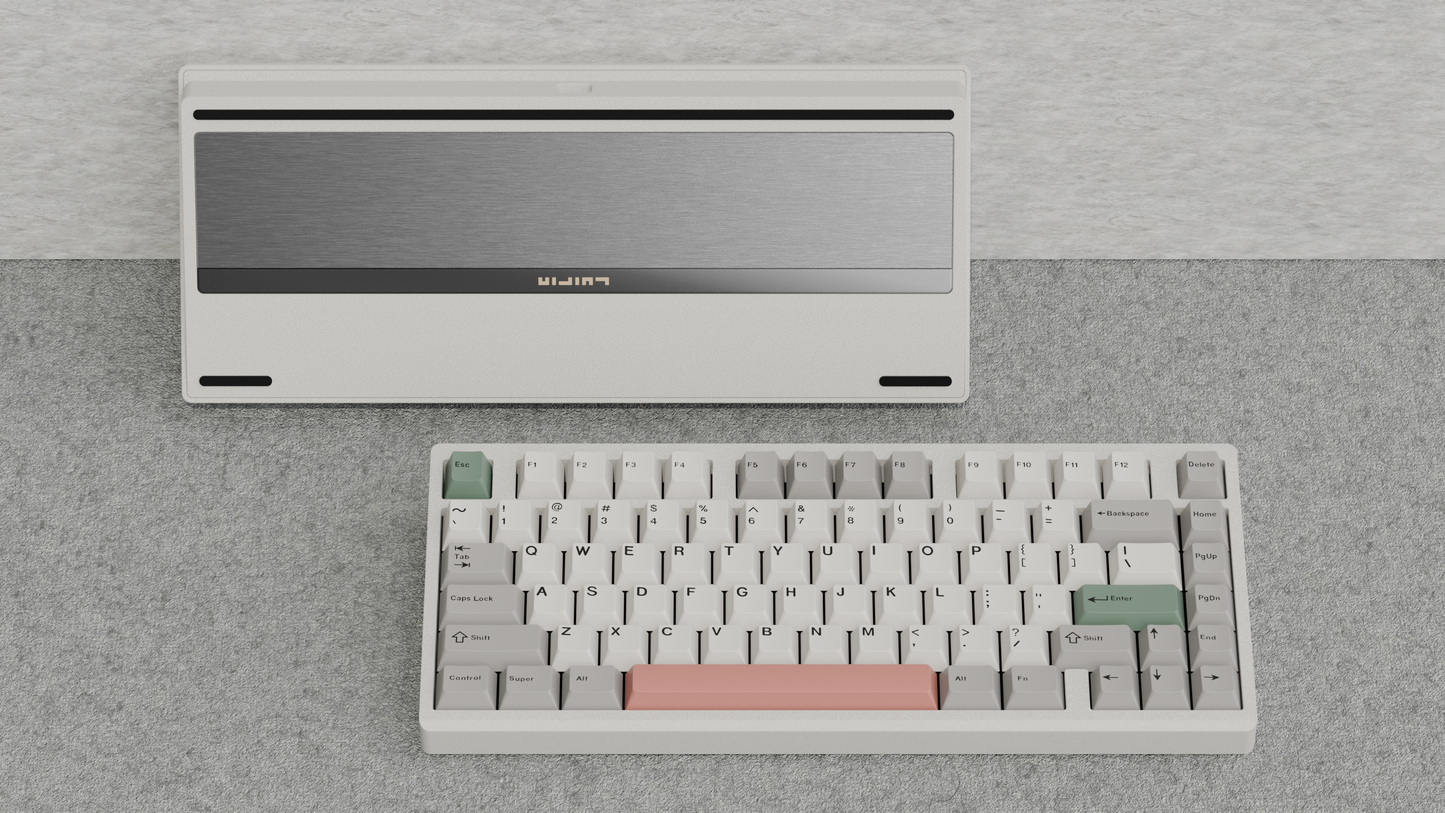

  • Spray-coated Retro White
  • Spray-coated Cream
  • Spray-coated Pink
• Default plate**: FR4 with Flex-cut
• Typing Angle: 6.5 degrees
• Front height: 1.82cm
• Dimensions: 315 x 135mm
• Weight: 1.7kg

Bridge75 Max Specifications:

• Mount: Gasket
• Layout: 75%
• Case Connection: Screw-less Ball-catch Mechanism
• PCB:
  • Hot-swappable
  • Wired / Bluetooth / 2.4G
  • Per-key Flex-cut
  • 1.2mm Thickness
  • 1600W RGB**
• Battery**: 8000mAh
• Foam:
  • INOAC Poron Foam
  • IPXE Sheet
  • EPDM Case Foam
  • Anti-static Pad
• Stabilizers: Plate-mount
• Keycaps:
  • PBT Doubleshot
  • Cherry Profile
• Material:
  • Weight: Brass + Glossy Trim**
  • Case: Aluminum
• Case Finish: Anodized
• Available Colors:
  • Anodized Silver
  • Anodized Black
  • Spray-coated White
  • Spray-coated Retro White
  • Spray-coated Cream
  • Spray-coated Pink
• Default plate**: FR4 with Flex-cut
• Typing Angle: 6.5 degrees
• Front height: 1.82cm
• Dimensions: 315 x 135mm
• Weight: 1.7kg

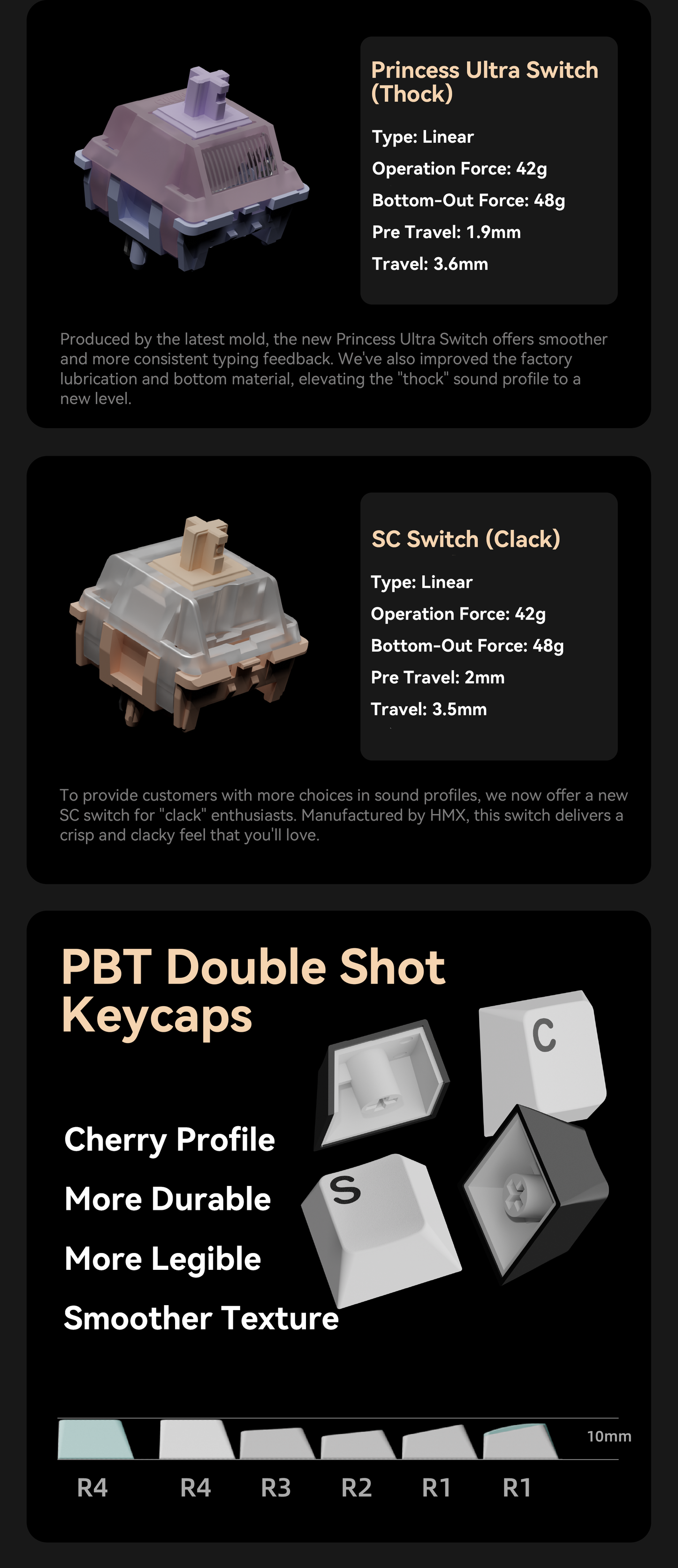

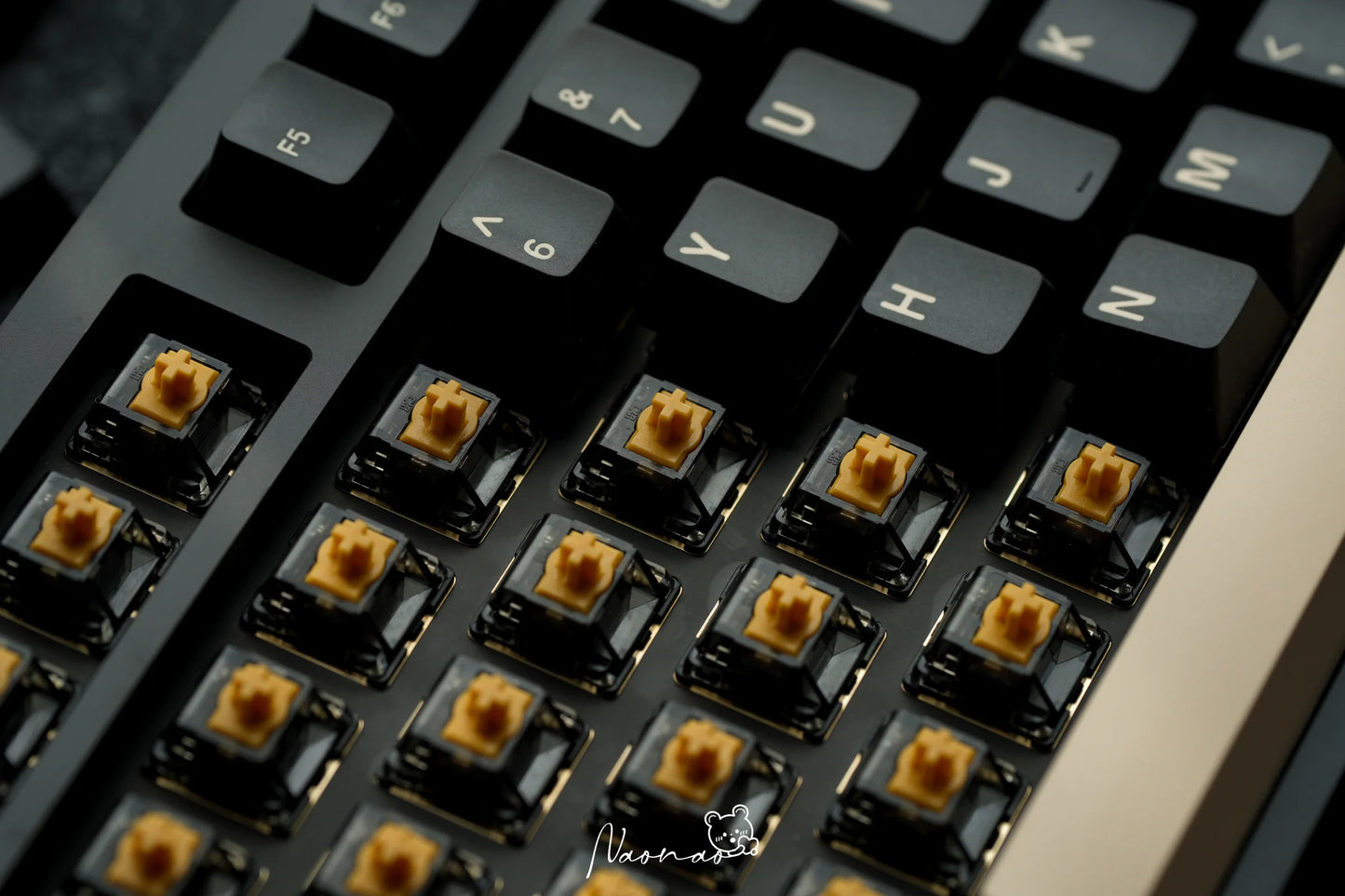

Switch Specifications:

• Princess Ultra Switch - Thock

  • Type: Linear
  • Actuation: 42g
  • Bottom-Out: 48g
  • Pre-Travel: 1.9mm
  • Total Travel: 3.6mm
• SC Switch - Clack

  • Type: Linear
  • Actuation: 42g
  • Bottom-Out: 48g
  • Pre-Travel: 2mm
  • Total Travel: 3.5mm

What's Included?

• 1 Shortcut Studio Bridge75 Keyboard

• 1 Keyboard Case
• 1 Weight
• 1 Plate
• 1 PCB (batteries and dongle if wireless)
• 1 Acoustic Package
• 1 Set of Switches
• 1 Keycap Set
• 1 USB Cable
• 1 Switch and Keycap Puller

Timeline:

• Pre-order start date: December 10th, 2024
• Pre-order end date: When allocated inventory sells out.
• Estimated shipping date: January 2025
