Evoworks Evo75 Keyboard

Evoworks Evo75 Mechanical Keyboard

Building on the success of the Evo80, the Evo75 delivers premium performance in a sleek 75% layout. Designed for both enthusiasts and professionals, every detail is carefully refined—from its elegant soft-tapered side profile and signature LED accents to its robust internal engineering.

Specifications:

• Mount: Butterfly leaf-spring, triple-layer shock absorption
• Layout: 75%
• Case Connection: Ball-catch Mechanism
• PCB:

  • Tri-mode ANSI
  • South-facing Per-key RGB

  • NKRO

  • Polling Rate: Wired & 2.4GHz 1000hz, Bluetooth 125Hz

  • VIA Compatible
  • Support USB-C, Bluetooth, 2.4GHz dongle connection
• Plate:
  • PP or FR4
• Keycaps: 1.7mm PBT Dye-sublimation
• Material:

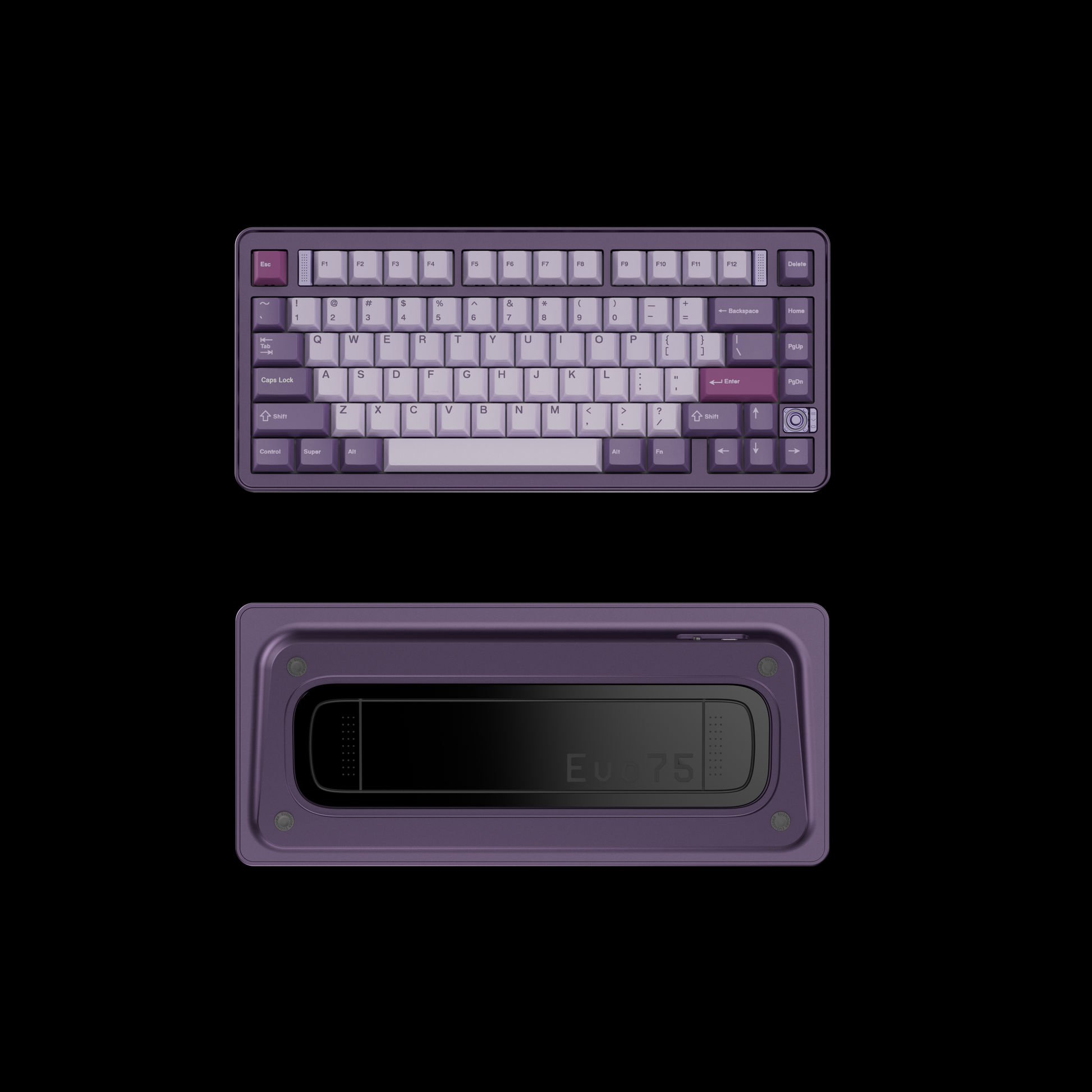

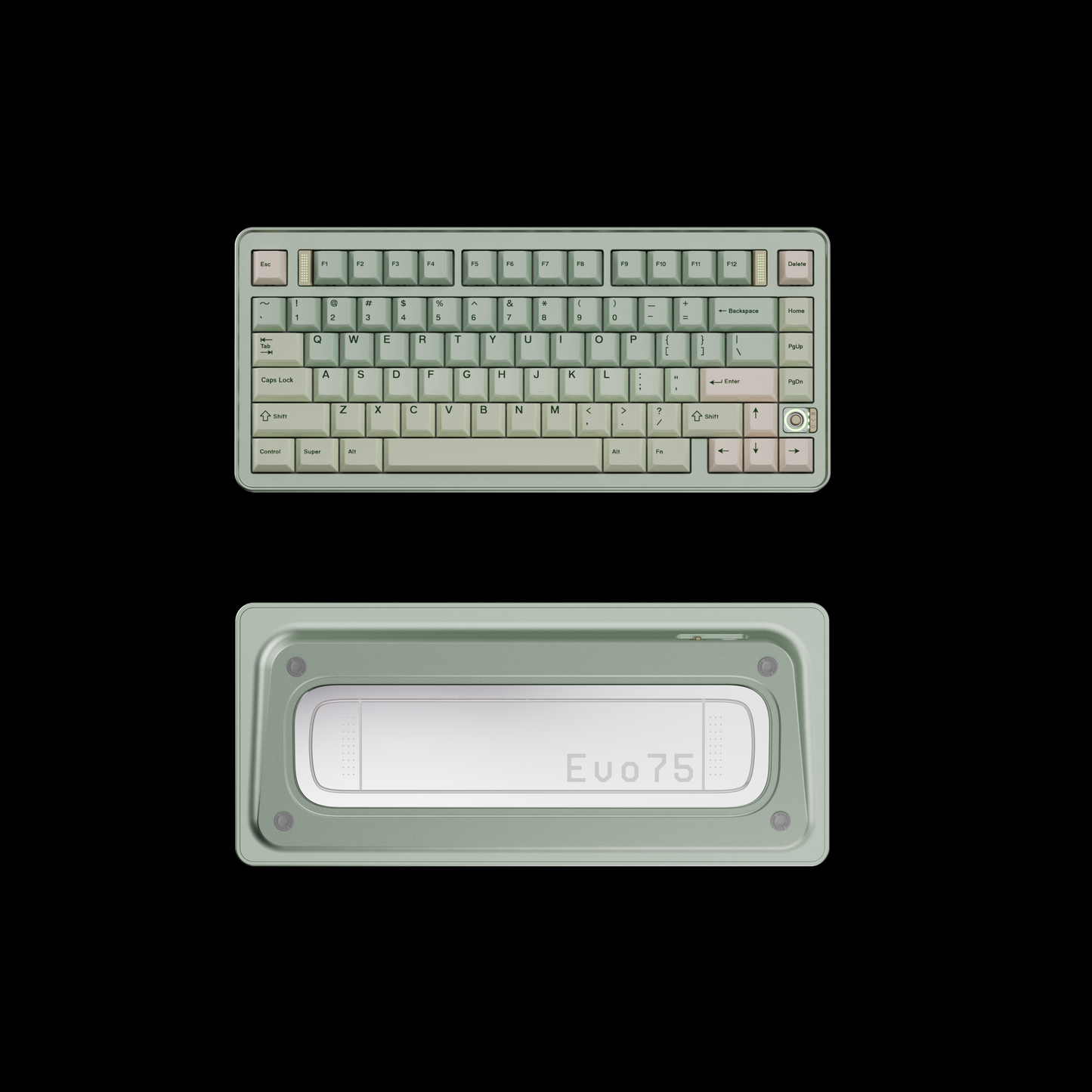

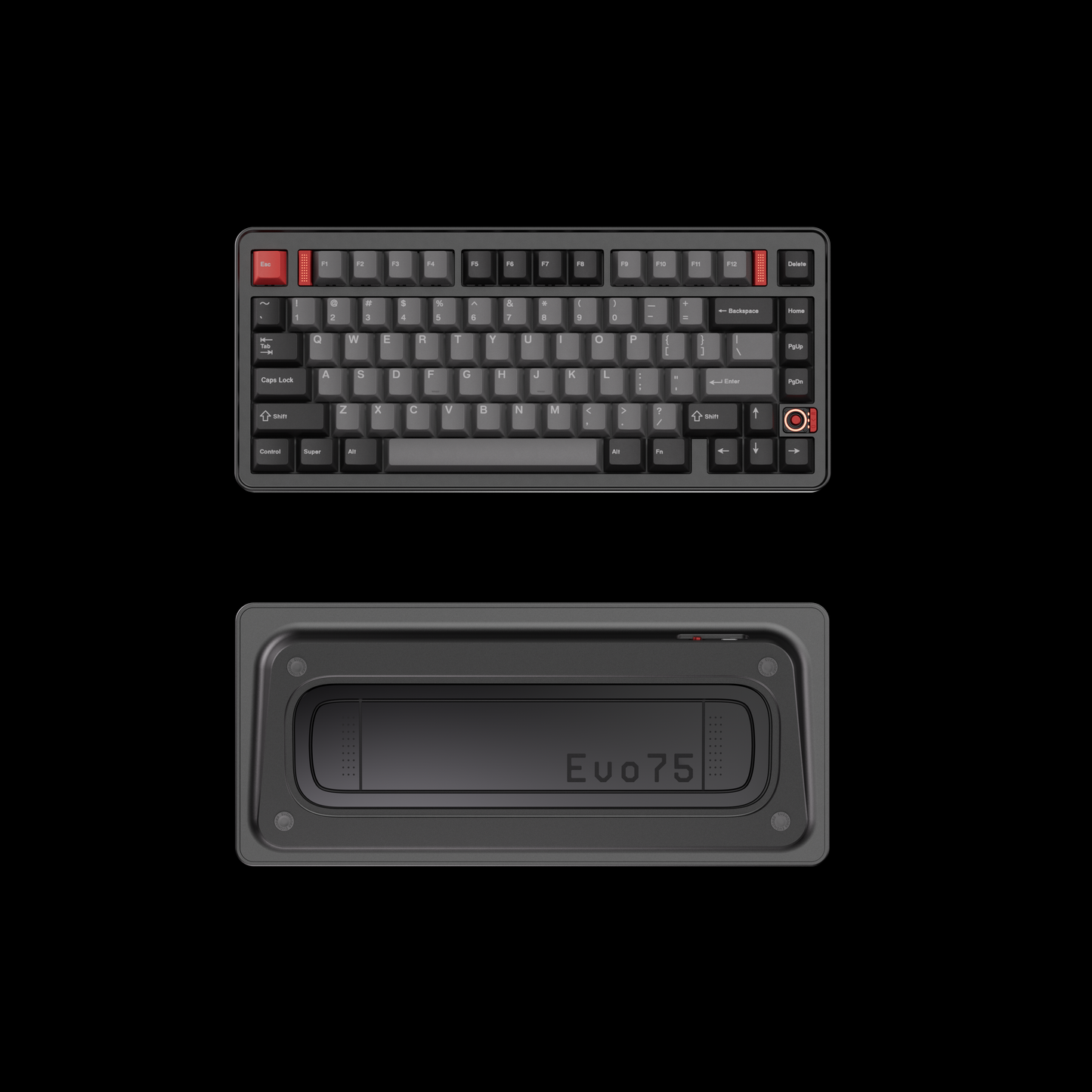

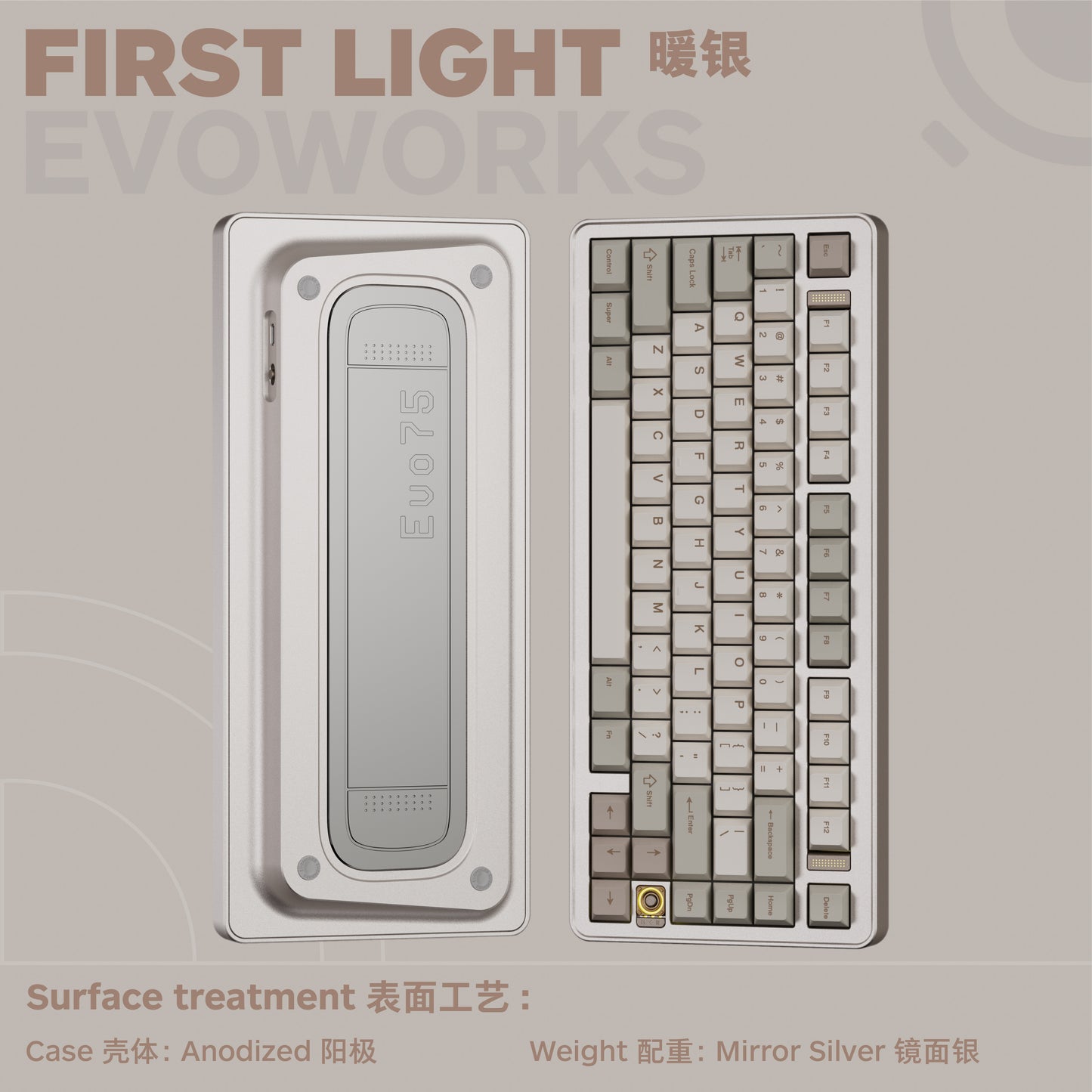

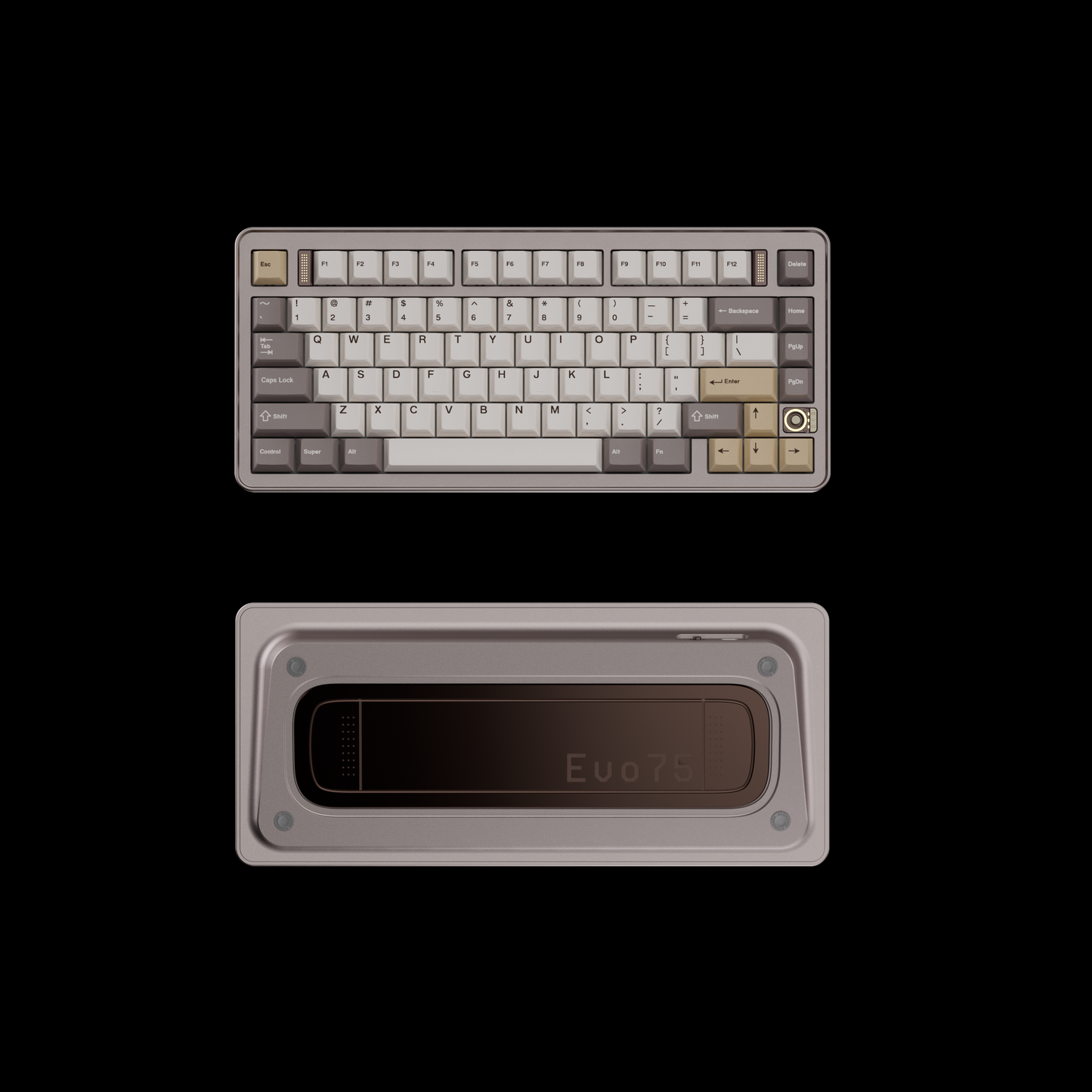

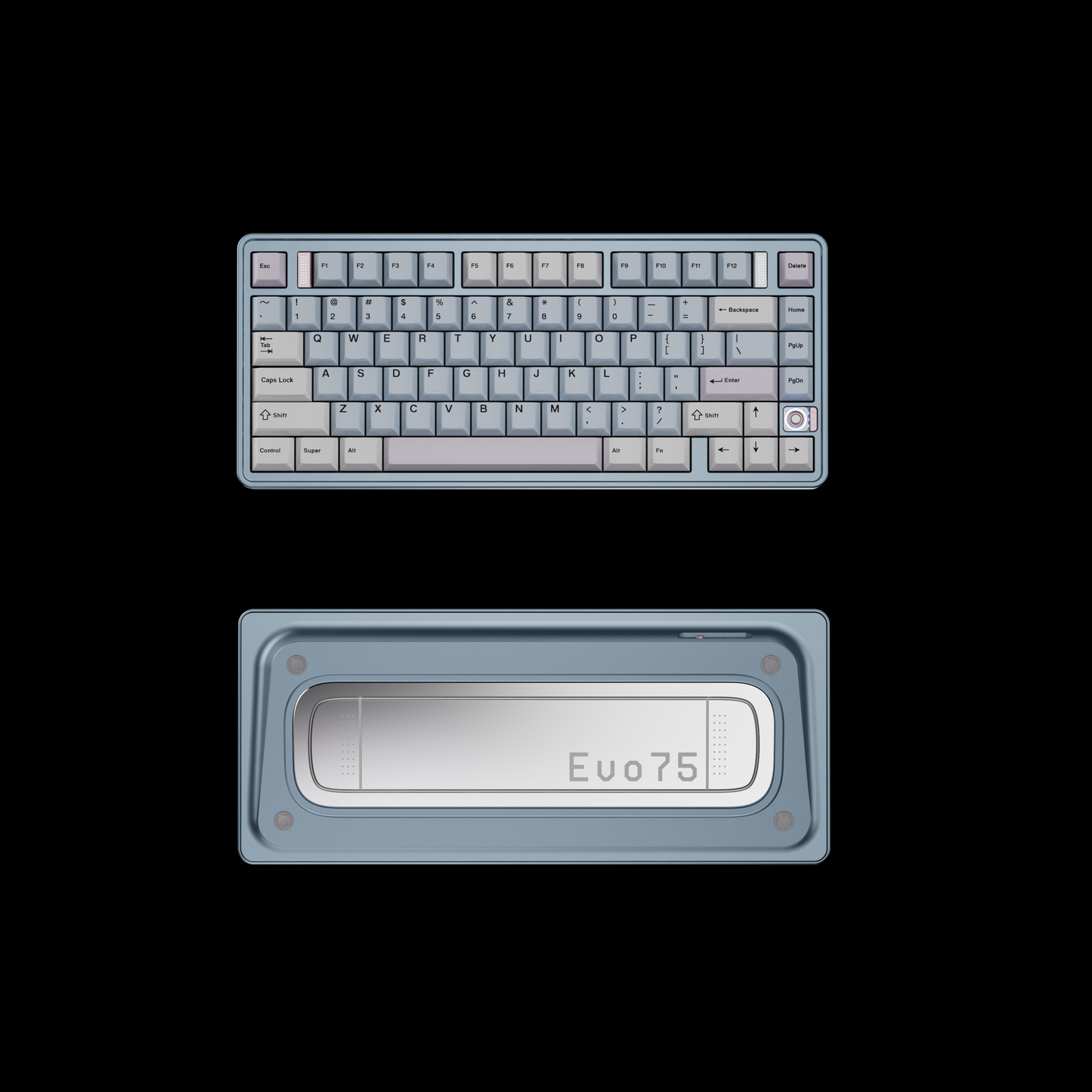

  • Anodized (220-mesh sandblasted): Basalt Grey, Tyrian, Ice Blue, First Light, Light Sage, Sandgold

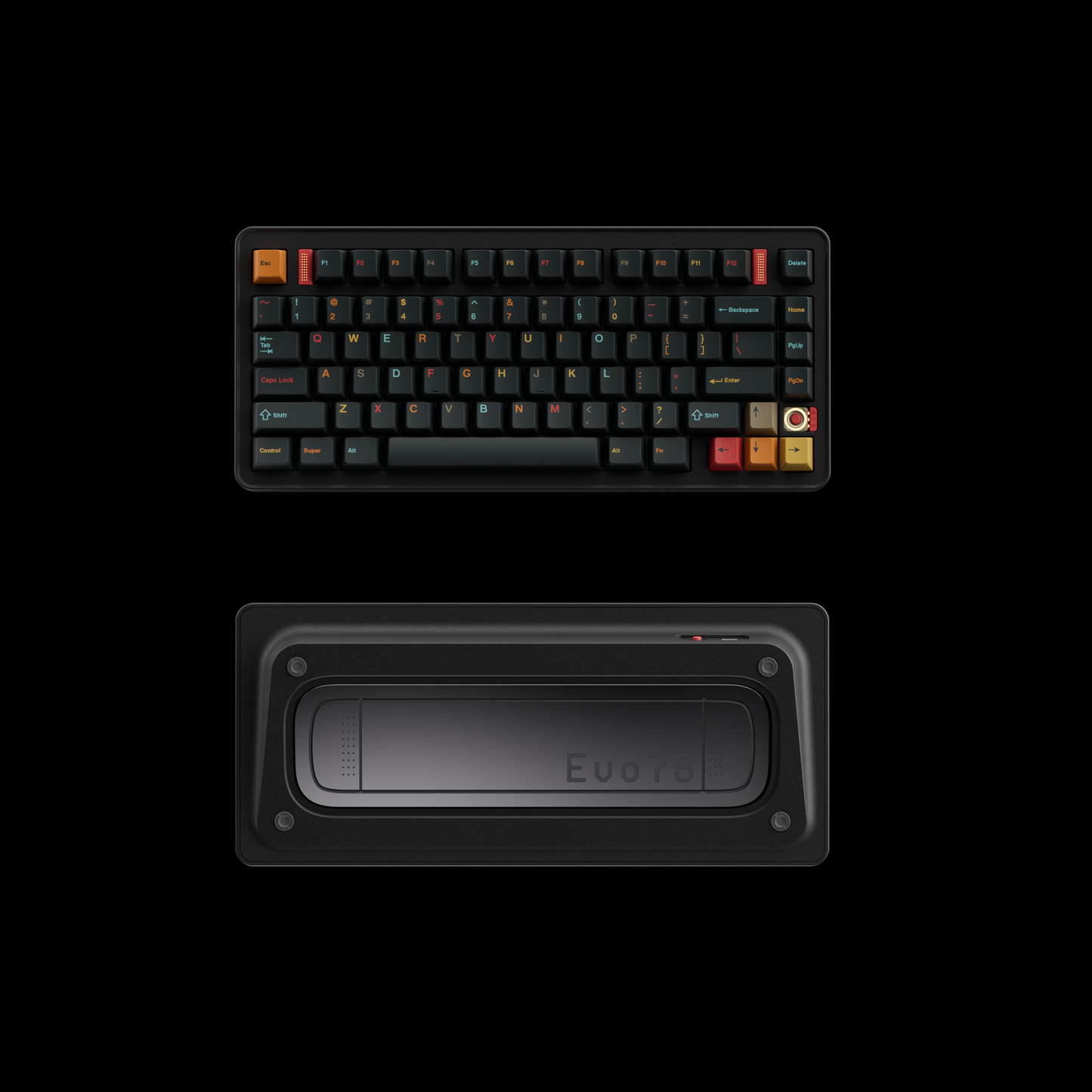

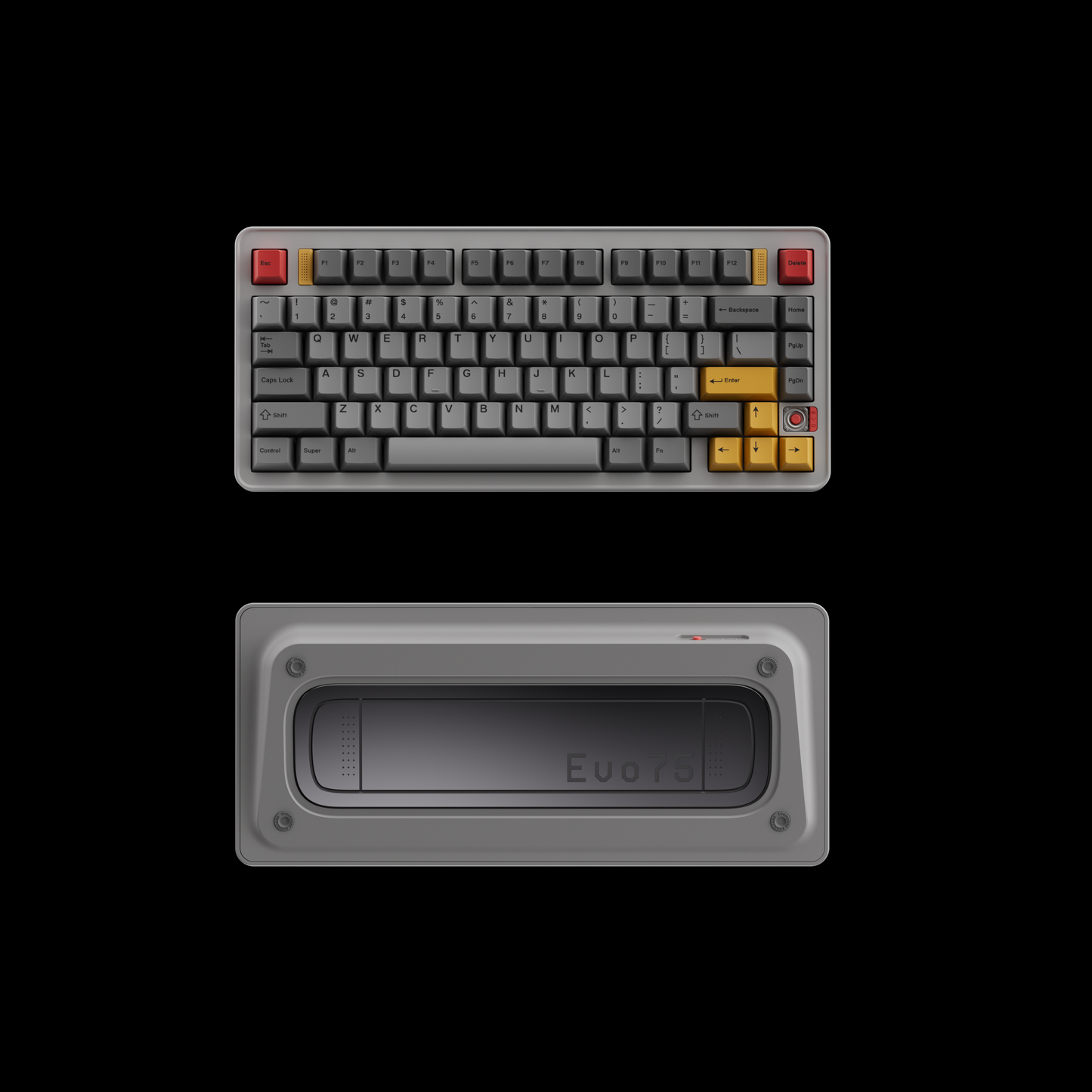

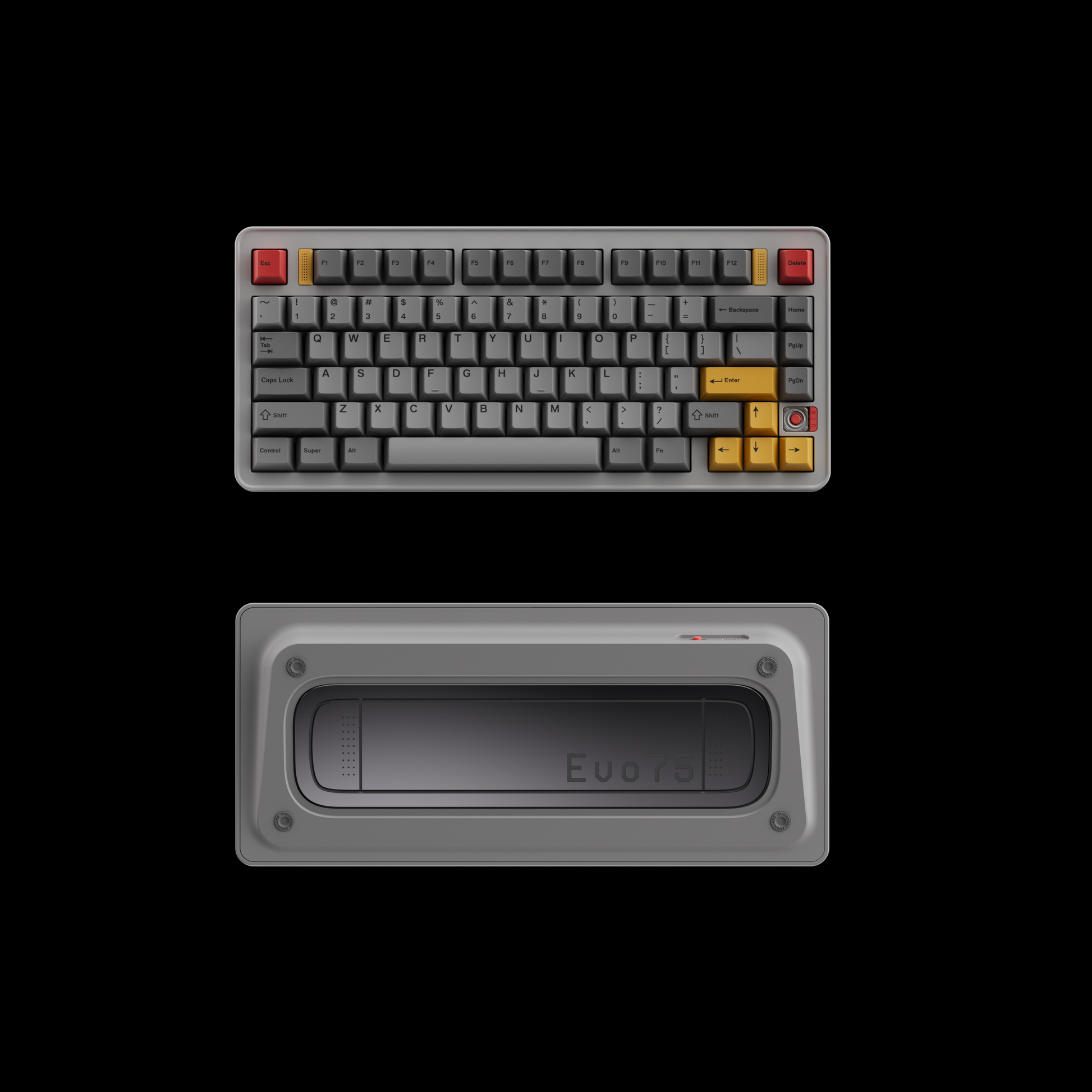

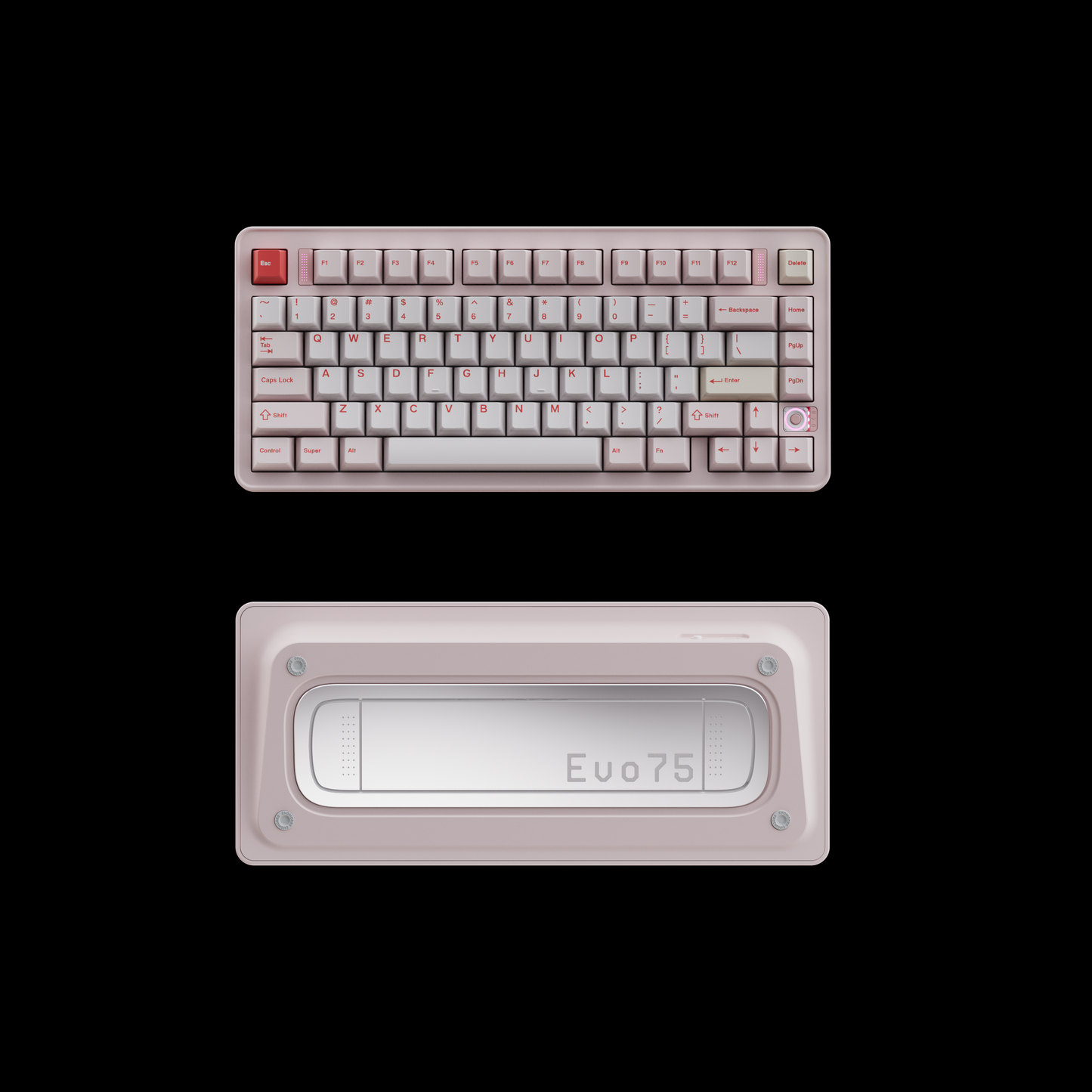

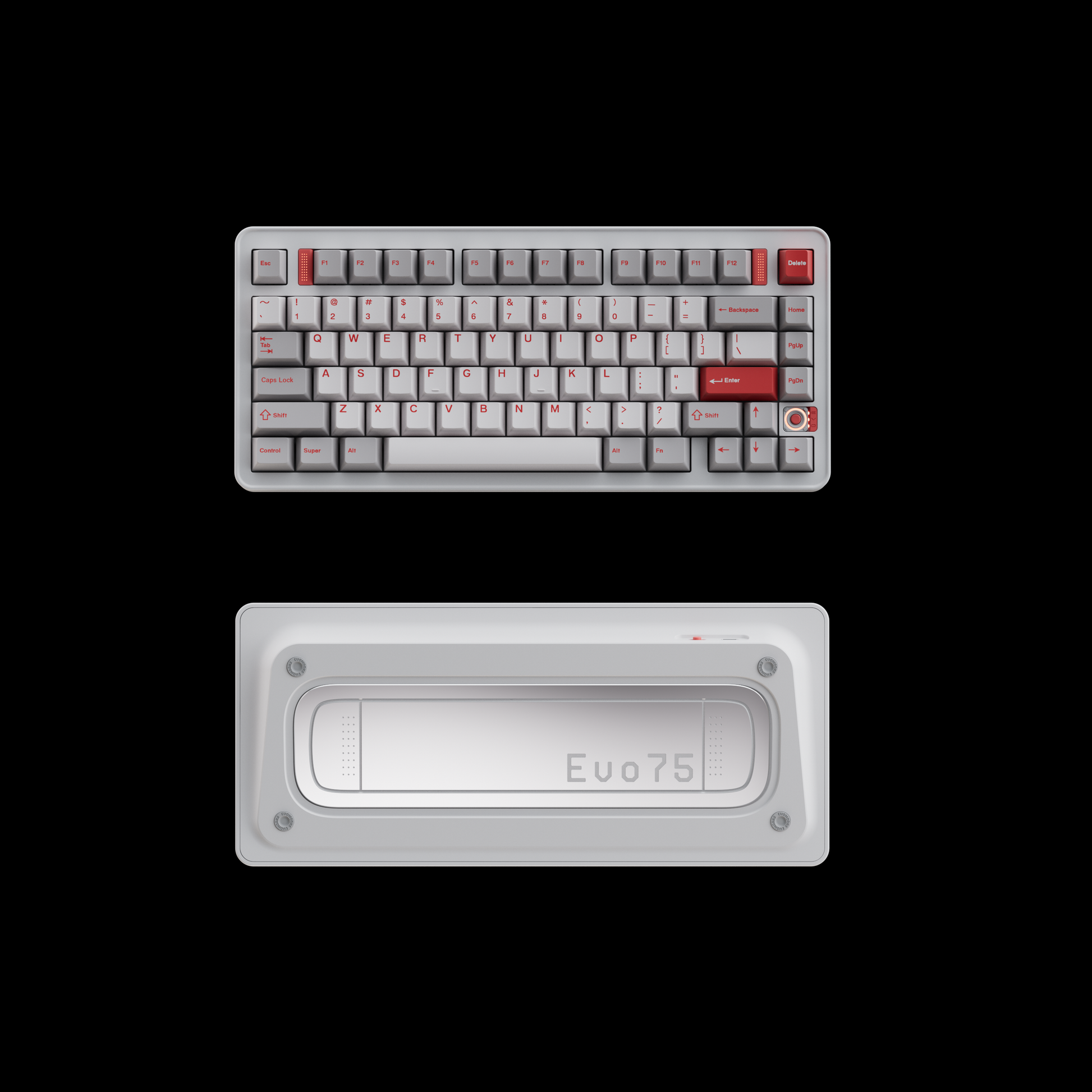

  • Spray-coated (ultra-fine powder coating): Nebula, Baby Pink, Eclipse Grey, Nova White
• Typing Angle: 8 degrees
• Dimensions: 323.35mmx143.42mm
• Weight: 1997g

Configurations:

Plate: PP (Thocky)

• Switch: Rye

• Type: Linear
• Top Housing: Modified PA12
• Bottom Housing: Modified PA6
• Stem: L4 (Modified POM)
• Spring: 22mm
• Total Travel: 3.6mm
• Actuation Force: 36g
• Bottom-out Force: 45g
• 5 pin (PCB Mount)

Plate: FR4 (Clacky)

• Switch: Amber

• Type: Linear
• Top Housing: PC
• Bottom Housing: P5
• Stem: Modified POM
• Spring: 22mm
• Total Travel: 3.4mm
• Actuation Force: 45g
• Bottom-out Force: 50g
• 5 pin (PCB Mount)

Videos:

What's Included?

• 1 Evo75 Keyboard

• 1 Carrying Case

• 1 Accessory Bag, User Manual, QC Certificate, Warranty Card

• 1 2.4GHz Receiver

• Free Gifts:

  • 1 USB-A to -C Cable

  • 1 Keycap & Switch Puller

  • 3 Spare Switches

  • 1 Dust Cover

  • 2 Leaf Spring Silicone
  • 2 Gasket Strips

  • 3 Mac Add-on Keycaps
• Disclaimer: The carrying case is for protective purposes during transit. All complimentary items are for backup purposes only. These items are not covered by warranty, and we will not provide replacements or compensation in case of loss or damage.

Please note:

• Renders are for reference only. Actual product colors may vary under different lighting conditions. Color differences between renders and the actual product are not acceptable reasons for returns or refunds.

• Spray-coated Nebula contains subtle micro-glitter.

• Dye-sub keycaps offer vibrant colors but may exhibit minor imperfections such as tiny black spots, uneven shrinkage, or rough edges due to the high-temperature production process. These are inevitable and won't be considered quality issues for the Evo75.

• Minor variations in the fit of the weights within the bottom case, including slight uneven gaps around the edges, are considered normal and within the product's design tolerances.

• Shipping may cause internal movement, leading to loose gaskets. A simple horizontal readjustment of the keycaps, without opening the case, should resolve this issue.

• Pressing down forcefully on the spacebar after it has bottomed out may produce an unusual sound due to the interaction between the keycap stem and the stabilizer housing. This sound won't occur during regular typing and isn't considered a quality issue.


Resources:

Acceptable Quality Standards.

User Guide
