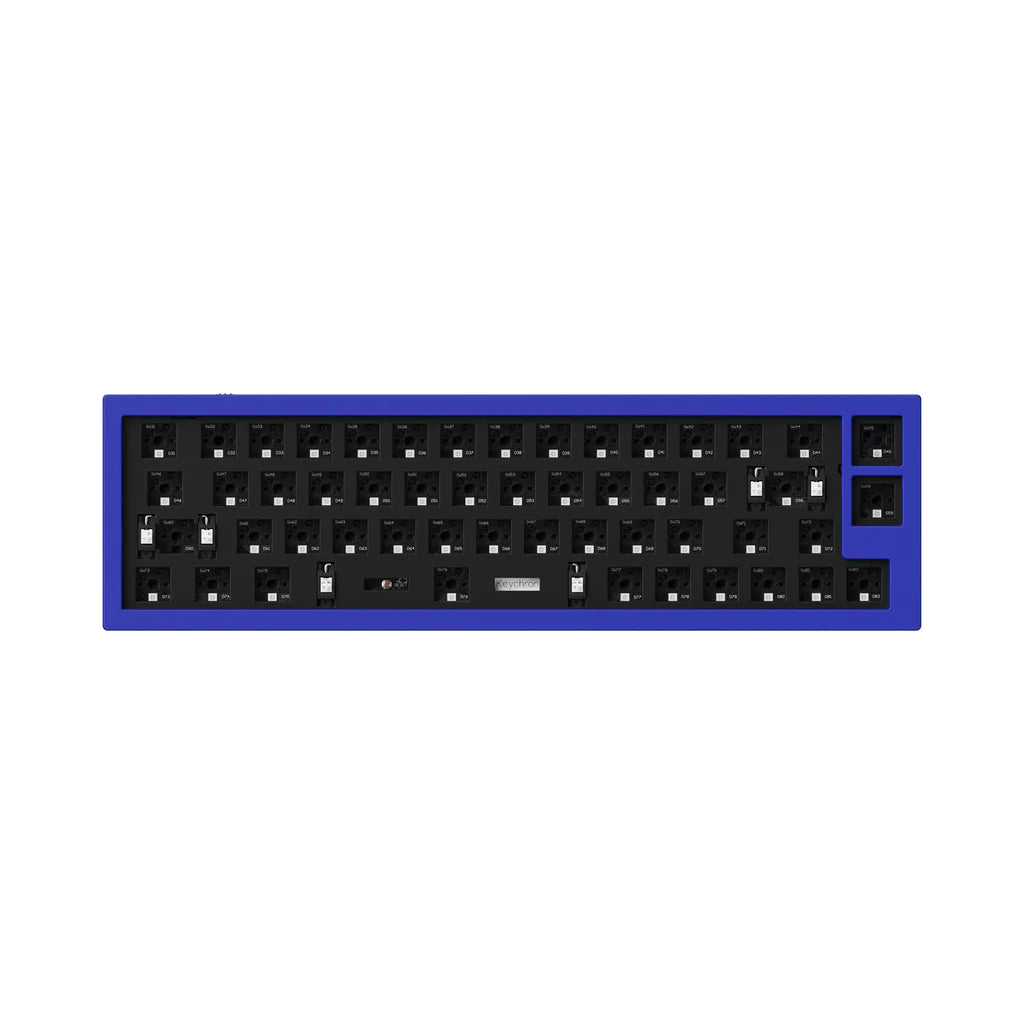

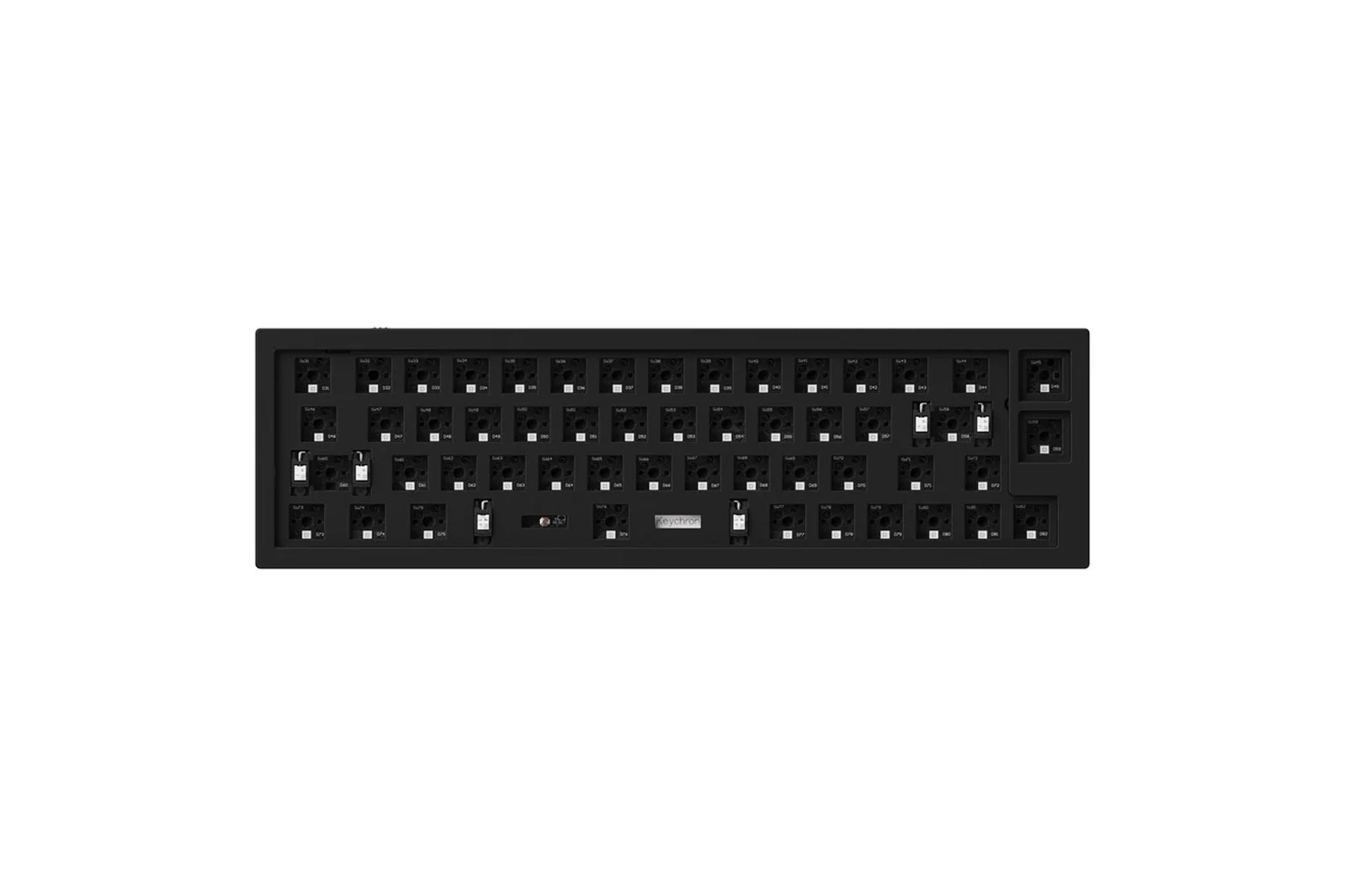

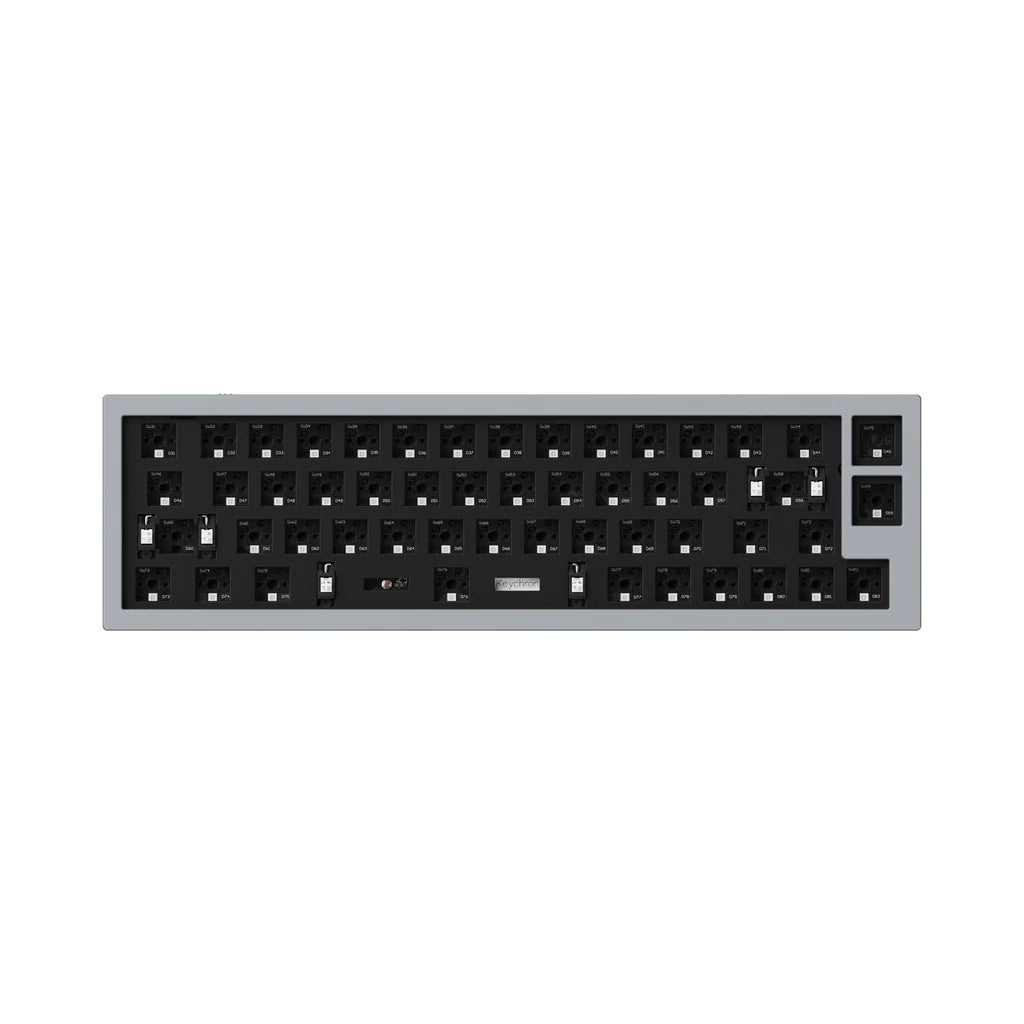

Keychron Q9 - QMK Compatible 40% Barebones Keyboard Kit

Regular price
$129.00
Sale price
$129.00
Regular price
Sold out
Unit price
per
Shipping calculated at checkout.

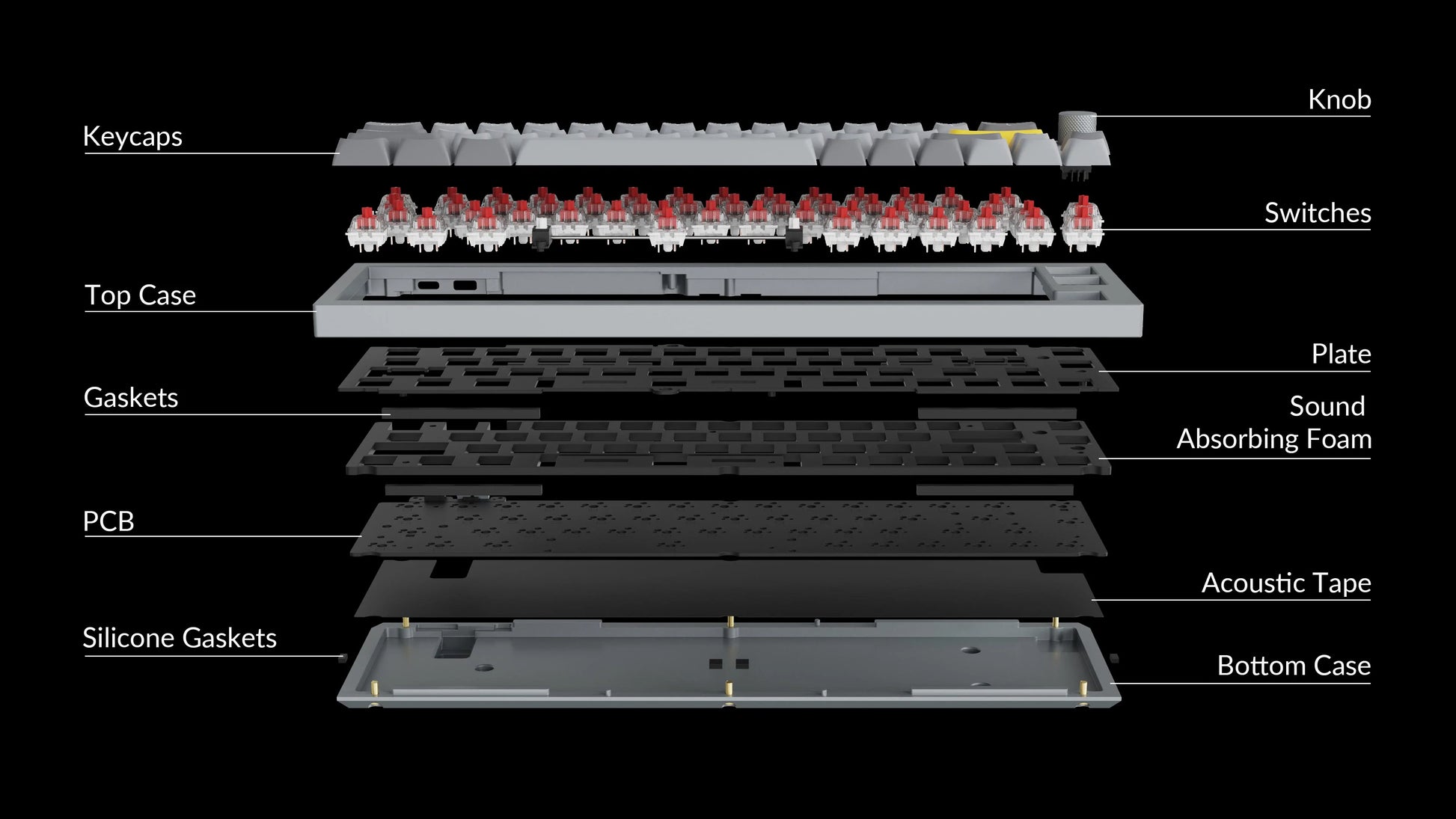

Keychron's Q9 is a premium, double gasket-mounted 40% keyboard with immense customization options. The board is completely modular allowing you to easily swap your keycaps, switches, plate, rotary encoder, stabilizers, and PCB. Utilizing QMK/VIA you'll also be able to remap every key to your specifications. With the Keychron Q9 you'll have everything you need to fully personalize your typing experience!



Specifications:

  • Layout: 40% ANSI (50 Keys)
  • Open Source Firmware Compatibility: QMK/VIA Support

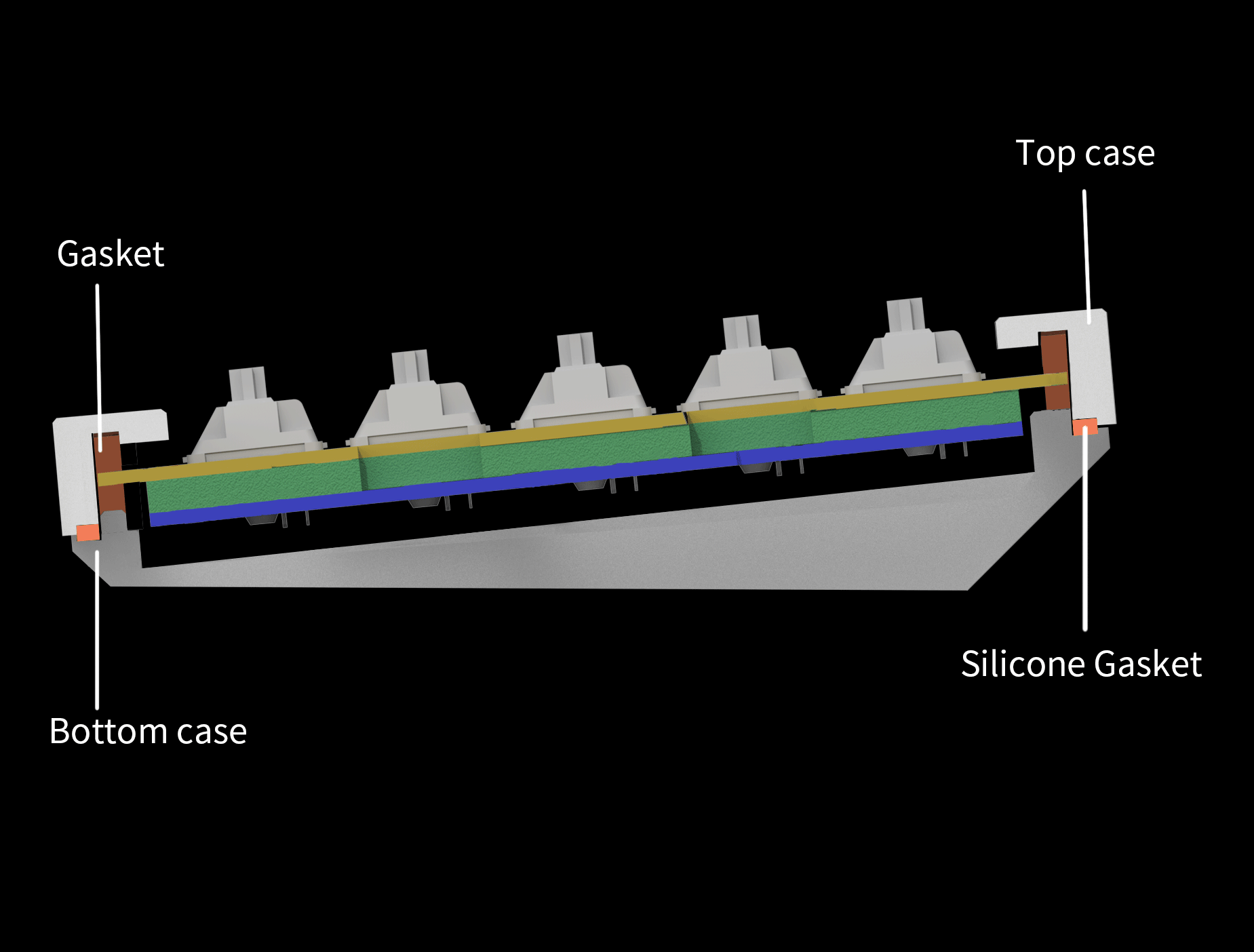

  • Mounting System: Gasket
  • Case Material: Aluminum
  • Plate Material: Steel
  • Double Gasket Design
  • Removable Keycaps
  • Removable USB Cord
  • Hot-swappable PCB

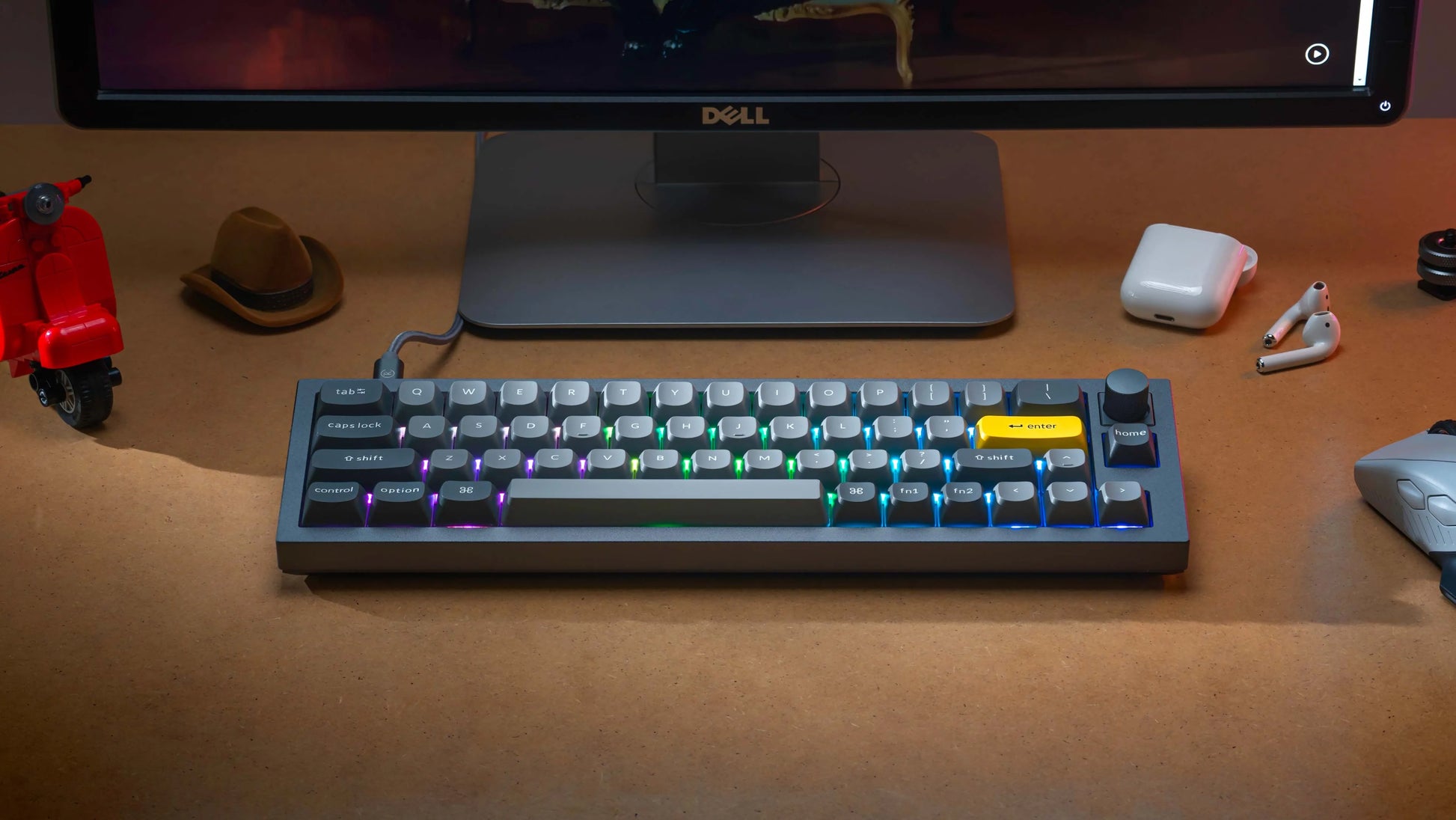

  • South-facing RGB
  • Sound Dampening Foam
  • PCB-Mounted Stabilizers

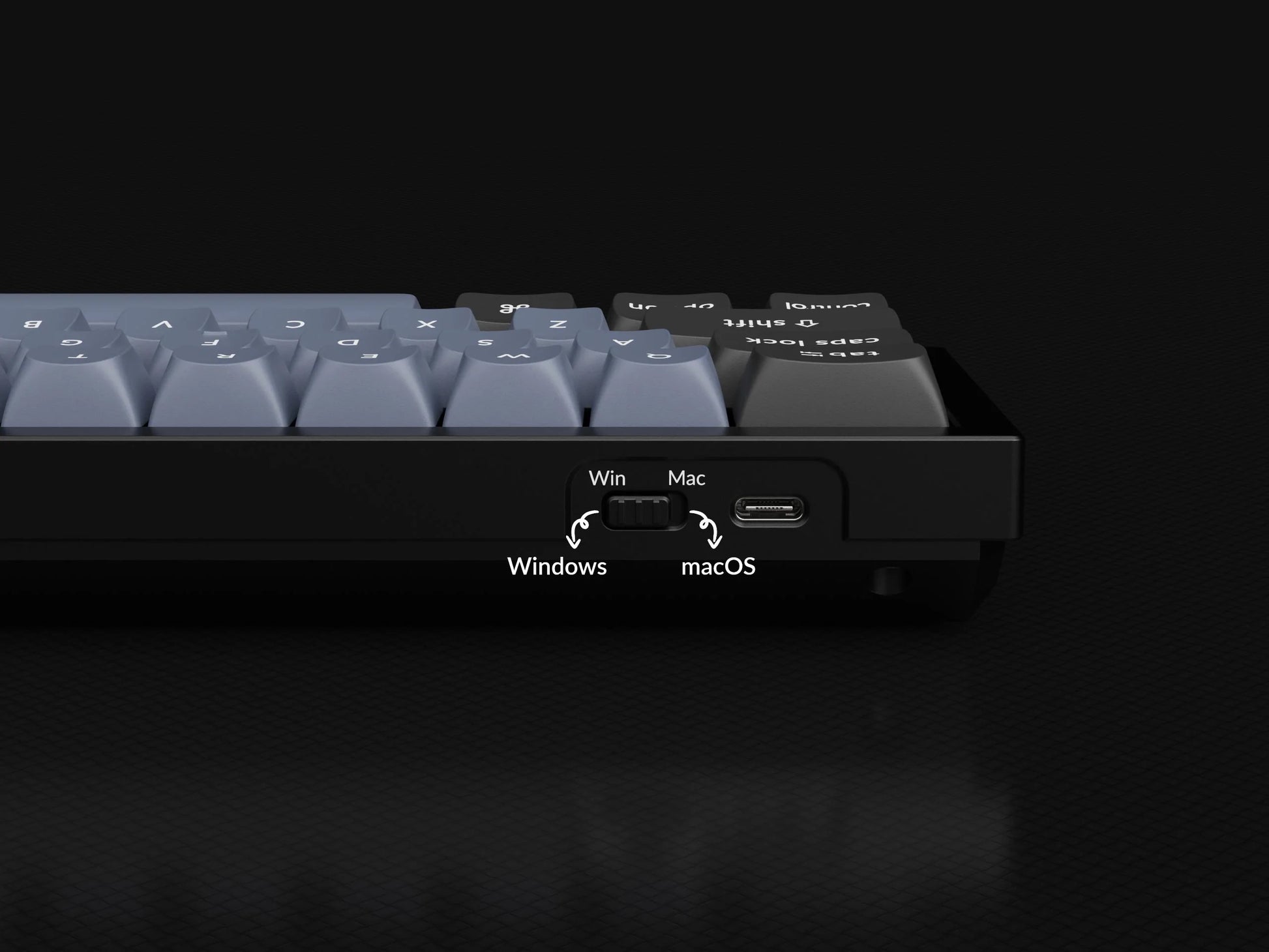

  • Mac and Windows Compatibility w/ Toggle

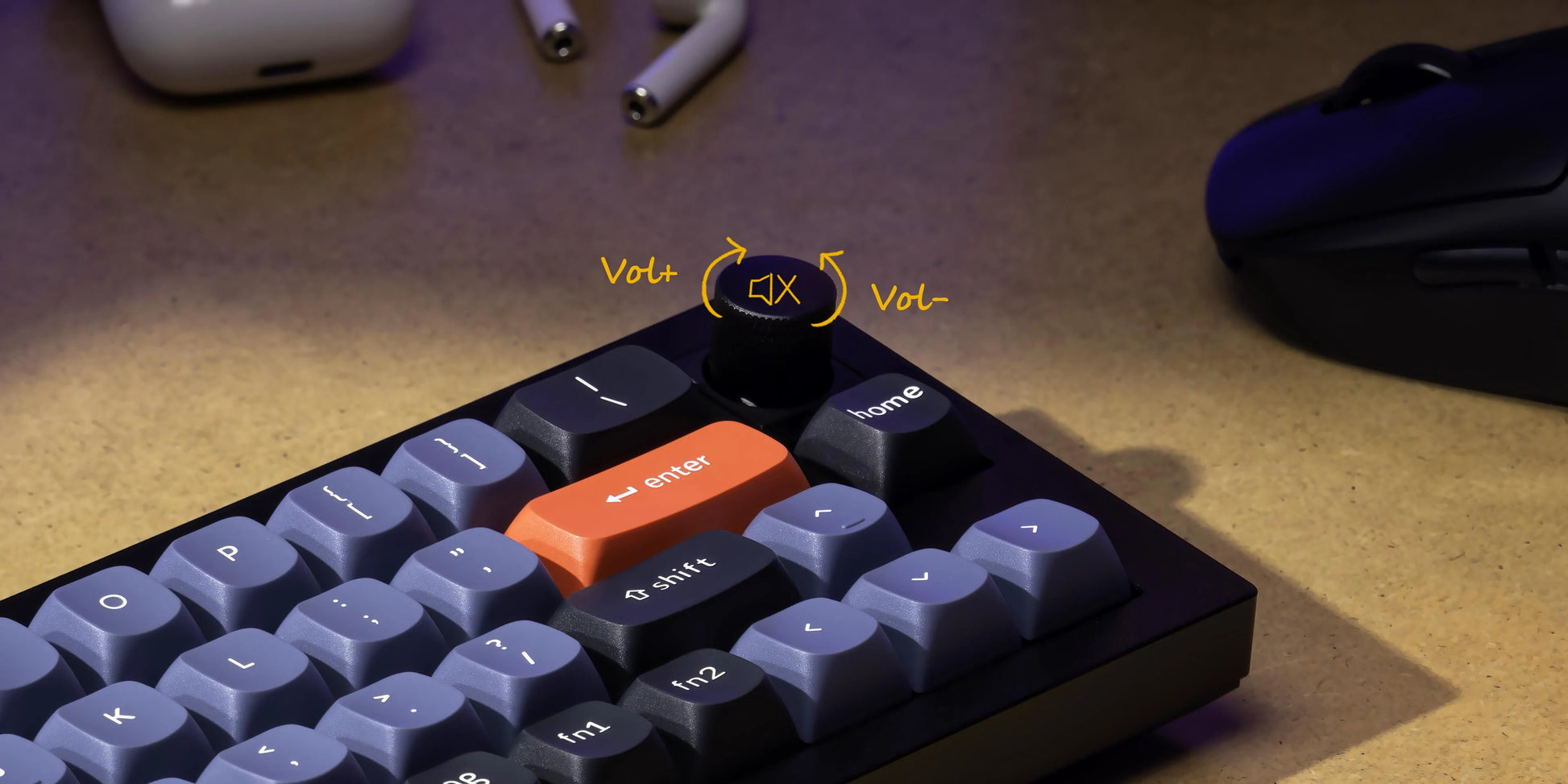

  • Optional Rotary Encoder
  • Polling Rate: 1000Hz
  • MCU: Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
  • Connectivity: USB-C
  • Width: 94.1mm
  • Length: 326mm
  • Front Height: 19.6mm
  • Back Height:  30.7mm
  • Typing Angle: 5.2°
  • Weight: Approx. 1050g (Fully Assembled)
  • Available Layouts:
    • 40%

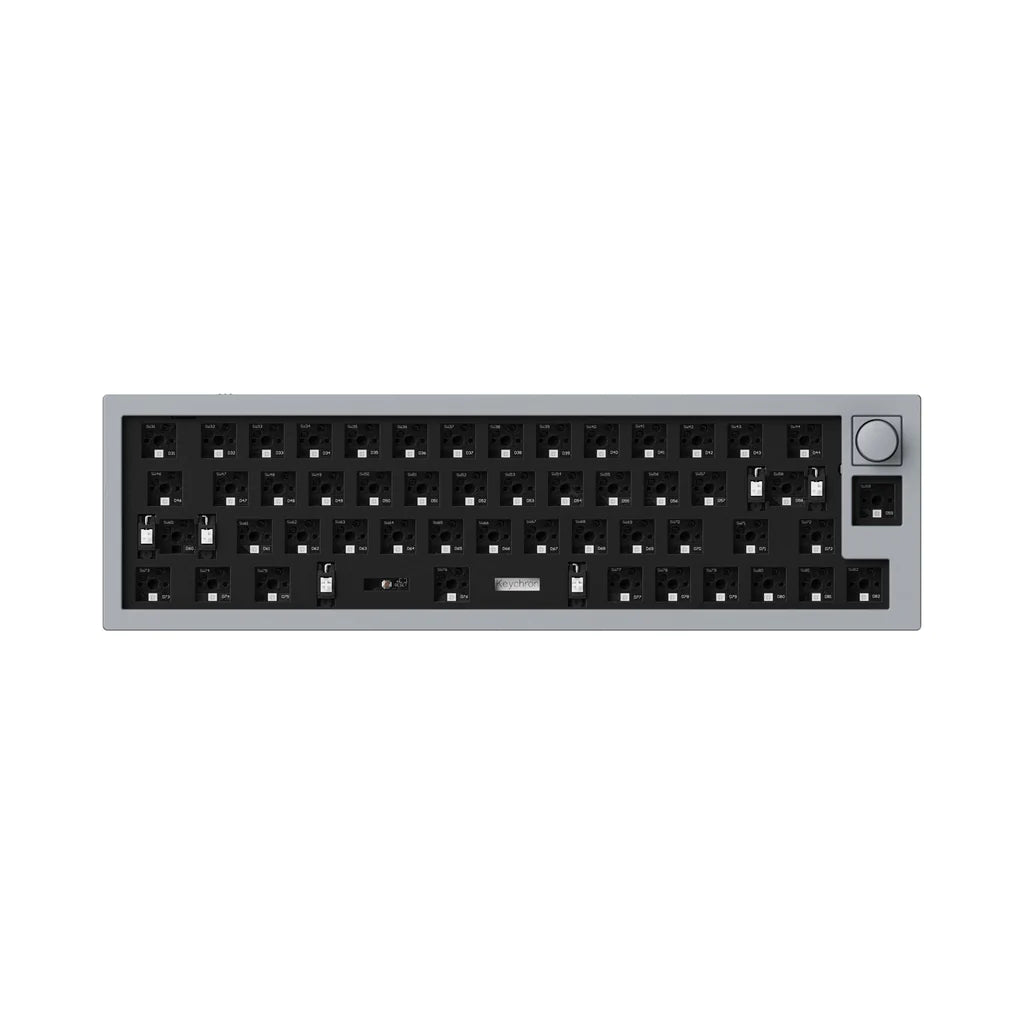

    • 40% with Knob



What's Included?

  • 1x Keychron Q9 Case
  • 1x Knob (Knob Version Only)
  • 1x Hot-Swappable PCB
  • 1x Steel Plate
  • 1x Acoustic Tape
  • 8x foam gaskets (8 Installed / 8 In Box)
  • 3x Stabilizers
  • 1x Keycap puller
  • 1x Switch puller
  • 1x Screwdriver
  • 1x Hex key
  • 1x USB-C to USB-C coiled aviator cable
  • 1x USB-C to USB-A adapter
  • 1x Quick-start Guide
